Daikin FTKS25D3VMW(L) - Four Way Valve Performance Check

SiENBE04-507A Check
Service Diagnosis 145
5.1.3 Four Way Valve Performance Check

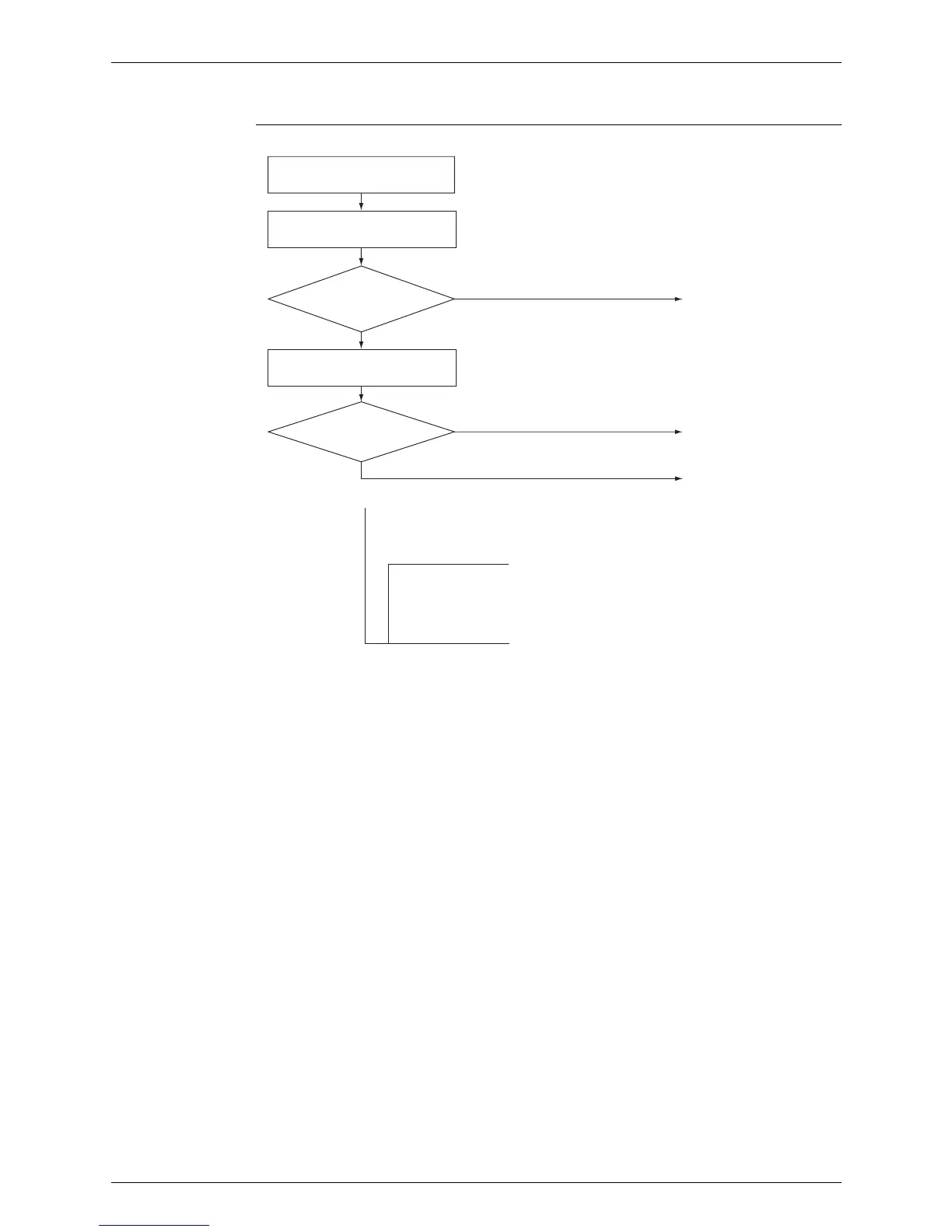

Check No.5
Turn off the power and turn it on
again.
Start the heating-mode run.
Replace the outdoor unit
PCB.
Replace the four way valve
coil.
Replace the four way valve.
(R3047)
Four way valve
coil resistance at
3kΩ±0.5kΩ?
S80 voltage
at DC 180-220 V with
compressor on?
(Fig. 1)
Disconnect the four way valve coil
from the connector and check the
continuity.
∗ Four way valve coil
Cooling / dry : No continuity
Heating : Continuity
YES
YES
NO
NO
(Fig. 1)
Voltage at S80
DC180-220V
Time
Compressor
ON
