Daikin FTKS25D3VMW(L) User Manual

Indoor Unit SiENBE04-507A
180 Removal Procedure
1.10 Removal of Fan Rotor
Procedure Warning Be sure to turn off all power supplies at least 10 min. before
disassembling work.
Step Procedure Points

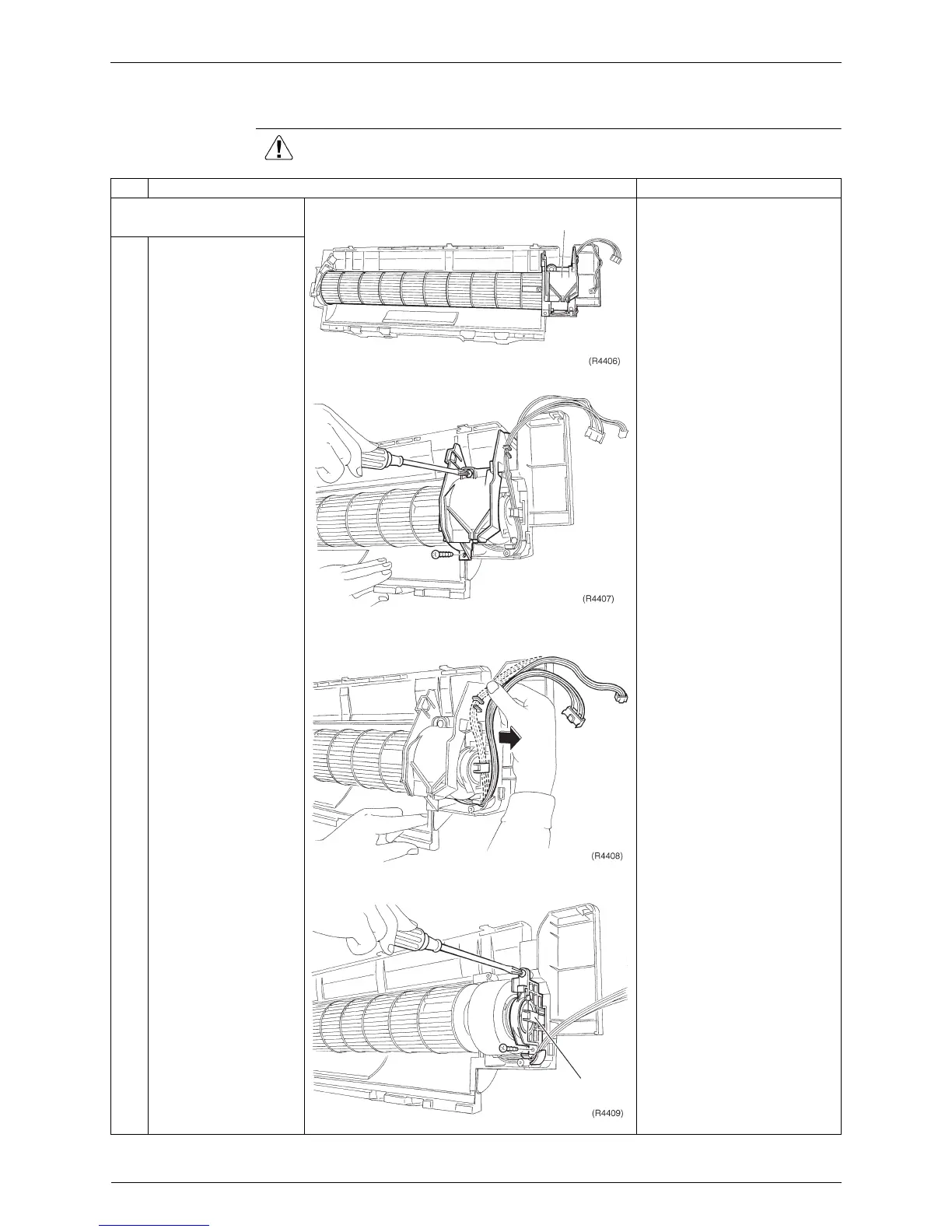

1. Removing the drip proof
plate
Preparation
 Remove the heat exchanger
according to the “Removal
of Heat Exchanger.”
1
Dismount the drip proof
plate (right) by
removing the 2 screws.
2
Unhook the fan motor
wire harness.
3
Remove the 2 screws
of the fan motor fixing
plate.
Drip proof plate (right)
Fan motor
fixing plate

Daikin FTKS25D3VMW(L) Specifications

General

Cooling Capacity	2.5 kW
Heating Capacity	3.2 kW
Power Supply	220-240V, 50Hz
Weight (Indoor Unit)	9 kg
Refrigerant	R410A
Noise Level (Outdoor Unit)	48 dB(A)
Type	Split Air Conditioner
Energy Efficiency Ratio (Cooling)	3.21 W/W
Outdoor Unit Dimensions (W x H x D)	550 x 658 x 275 mm
