Daikin FTKS71FV1B Service Manual
5
of 1
of 1 rating
355 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Outdoor Uni
t
SiENBE12-713
308

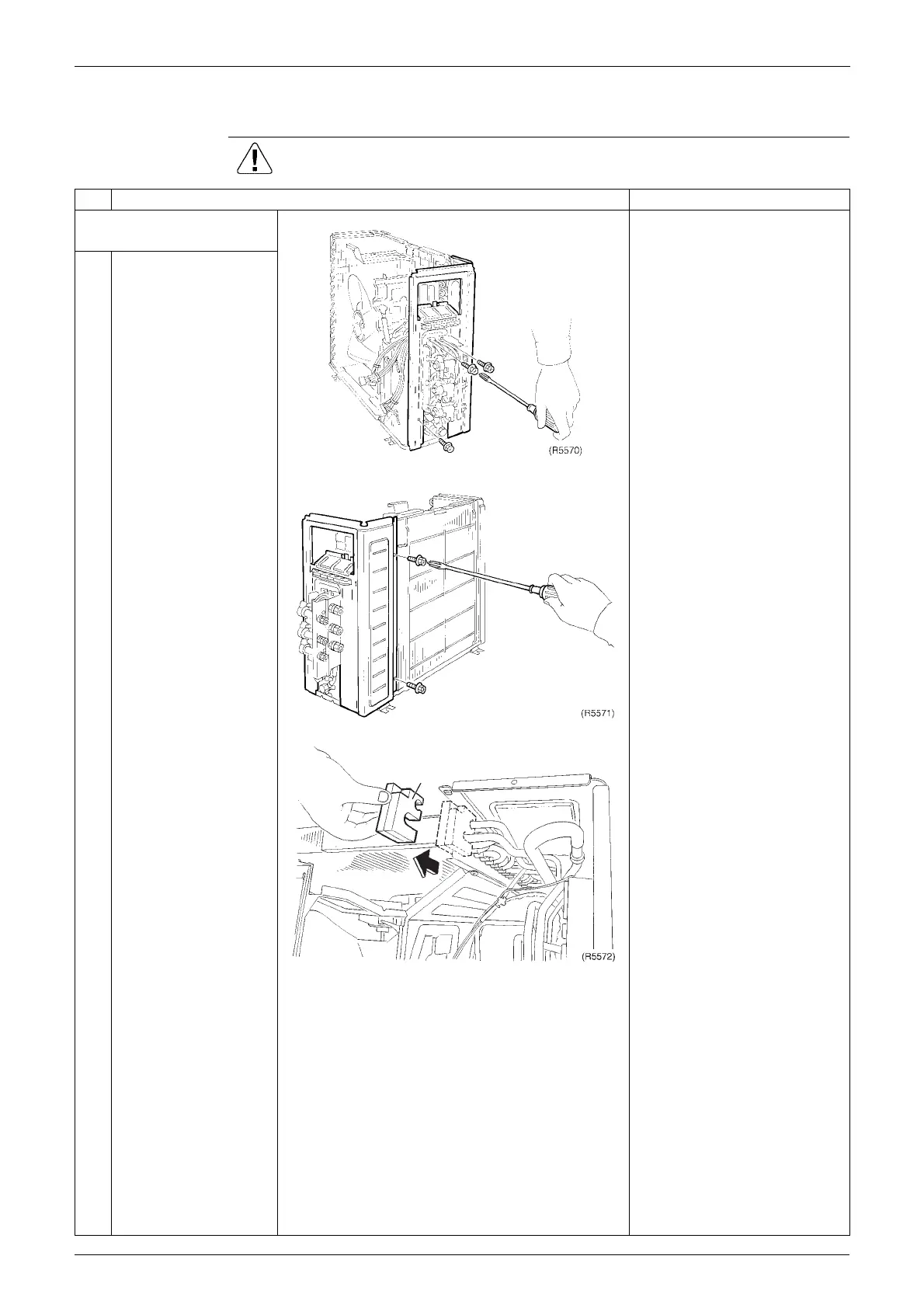

Removal Procedure
1.5
Removal of the Sound Blanket
Procedure
Warning
Be sure to wait 10 minutes or mo
re after turning off all power supplies
before disassembling work.
Step
Procedure
Points
1.
Remove the right side
panel
"
Remove the outer panels
and plates.
"
Remove the electrical box.
1
Loosen the 3 screws on
the right of the right side
panel.
2
Loosen the 2 screws on
the back.
3
Remove the packing.
There is a hook on the
back.
P
a
cking
318
320
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
6
Safety Cautions
6
Used Icons
10
Part 1 List of Functions
12
List of Functions
13
Cooling Only Models
13
Heat Pump Models
18
Part 2 Specifications
24
Indoor Units - Cooling Only
25
Outdoor Units - Cooling Only
34
Indoor Units - Heat Pump
35
Outdoor Units - Heat Pump
46
Part 3 Printed Circuit Board Connector Wiring Diagram
48
Printed Circuit Board Connector Wiring Diagram
49
Wall Mounted Type
49
Duct Connected Type
58
Floor / Ceiling Suspended Dual Type
60
Floor Standing Type
63
Ceiling Suspended Type
65
Outdoor Units
67
Part 4 Function and Control
70
Main Functions
71
Frequency Principle
71
Power-Airflow Dual Flaps, Wide Angle Louvers and Auto-Swing
73
Operation Starting Control
75
Fan Speed Control for Indoor Units
76
Programme Dry Function
77
Automatic Operation
78
Thermostat Control
79
Night Set Mode
80
ECONO Mode
81
INTELLIGENT EYE (Wall Mounted Type Only)
82
HOME LEAVE Operation
84
Inverter POWERFUL Operation
85
Other Functions
86
Function of Main Structural Parts
88
Main Structural Parts
88
Function of Thermistor
89
Control Specification
93
Mode Hierarchy
93
Frequency Control
94
Controls at Mode Changing / Start-Up
97
Compressor Protection Function
98
Discharge Pipe Control
99
Input Current Control
99
Freeze-Up Protection Control
100
Heating Peak-Cut Control
100
Fan Control
101
Liquid Compression Protection Function 2
101
Defrost Control
102
Electronic Expansion Valve Control
103
Malfunctions
107
Forced Operation Mode
108
Wiring-Error Check
109
Additional Function
111
Part 5 Operation Manual
114
System Configuration
115
Operation Instructions
115
Instruction
116
FTK(X)S, FTXG, CTXG, FDK(X)S, FLK(X)S Series
116
Safety Precautions
117
FVXS Series
192
Air Flow Selection
203
FHQ Series
223
Temperature Setting
229
Fan Speed Control
229
Part 6 Service Diagnosis
236
Caution for Diagnosis
237
Troubleshooting with Operation Lamp
237
Problem Symptoms and Measures
239
Service Check Function
240
Check Method 1
240
Check Method 2
242
Code Indication on the Remote Control
244
Error Codes and Description of Fault
244
Troubleshooting
245
Indoor Units
245
Outdoor Units
246
Indoor Unit PCB Abnormality
247
Freeze-Up Protection Control or High Pressure Control
248
Fan Motor or Related Abnormality
250
Thermistor or Related Abnormality (Indoor Unit)
253
Front Panel Open / Close Fault
254
Signal Transmission Error (between Indoor and Outdoor Unit)
255
Unspecified Voltage (between Indoor and Outdoor Units)
257
Freeze-Up Protection Control
258
Outdoor Unit PCB Abnormality
260
OL Activation (Compressor Overload)
261
Compressor Lock
262
DC Fan Lock
263
Input over Current Detection
264
Discharge Pipe Temperature Control
266
High Pressure Control in Cooling
267
Compressor Sensor System Abnormality
269
Position Sensor Abnormality
271
CT or Related Abnormality
272
Thermistor or Related Abnormality (Outdoor Unit)
274
Sienbe12
275
Electrical Box Temperature Rise
276
Radiation Fin Temperature Rise
278
Output over Current Detection
280
Insufficient Gas
282
Low-Voltage Detection or Over-Voltage Detection
284
Signal Transmission Error (on Outdoor Unit PCB)
285
Anti-Icing Function in Other Rooms / Unspecified Voltage
286
(Between Indoor and Outdoor Units)
286
Anti-Icing Function in Other Rooms / Unspecified Voltage (between Indoor and Outdoor Units)
286
Check
287
How to Check
287
Electronic Expansion Valve Check
288
Four Way Valve Performance Check
289
Installation Condition Check
291
Discharge Pressure Check
292
Power Supply Waveforms Check
293
Capacitor Voltage Check
294
Power Transistor Check
294
Main Circuit Electrolytic Capacitor Check
295
Hall IC Check
296
Part 7 Removal Procedure
298
Outdoor Unit
299
Removal of the Panels and Plates
299
Removal of the Electrical Box
303
Removal of the PCB
311
Removal of the Propeller Fan / Fan Motor
317
Removal of the Sound Blanket
319
Removal of Electronic Expansion Valve Coil, Four Way Valve Coil and Thermistor
323
Removal of the Distributor
326
Removal of the Four Way Valve
327
Removal of the Compressor
328
Part 8 Others
331
Others
331
Test Run from the Remote Control
331
Jumper Settings
332
Part 9 Appendix
334
Piping Diagrams
335
Indoor Units
335
Outdoor Units
341
Wiring Diagrams
342
Indoor Units
342
Outdoor Units
347
Index
348
Other manuals for Daikin FTKS71FV1B
Operation Manual
34 pages
Installation Manual
14 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Daikin FTKS71FV1B and is the answer not in the manual?
Ask a question
