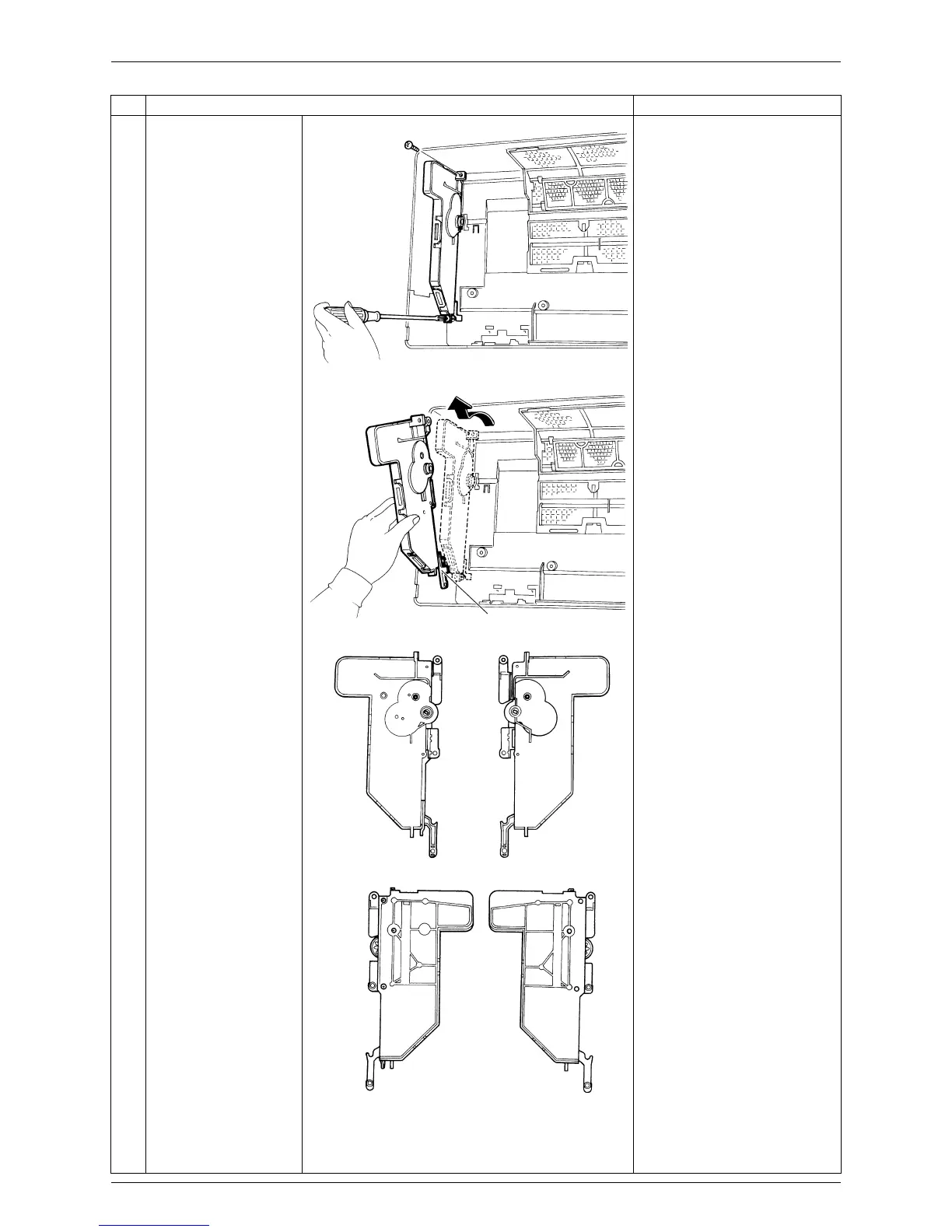

Si04-858 Removal of Assembly of Front Panel Mechanism
Removal Procedure 11
5
Loosen the 2 screws of
the assembly (right).
6
Remove the assembly.

When assembling, insert the
lower rack plate first.
Step
Procedure Points
(R5027)
Lower rack plate
(R5028)
(R5029)
(R5030)
