Daikin FTXG25EVMAW Service Manual

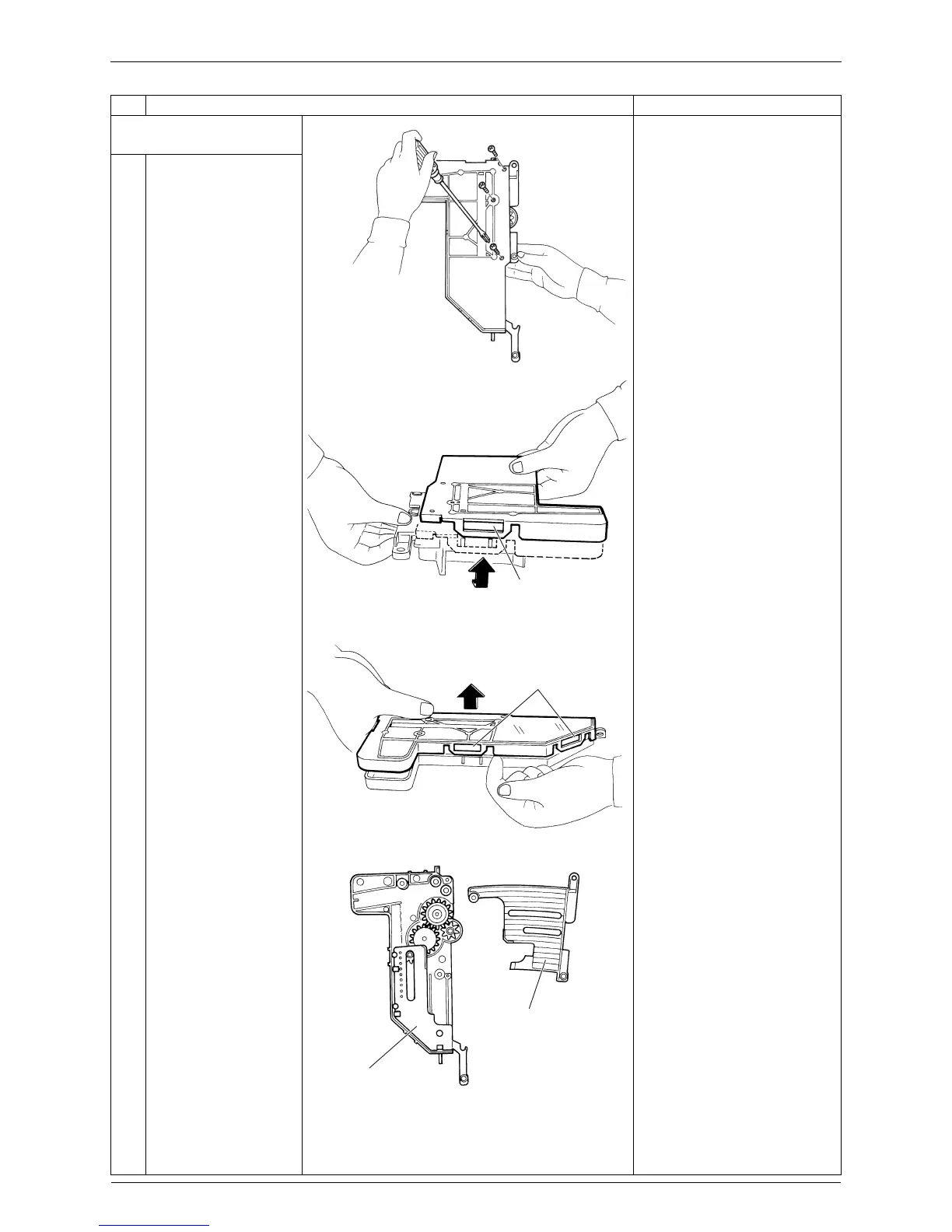

Removal of Assembly of Front Panel Mechanism Si04-858
12 Removal Procedure
2. Remove the lower rack
plate.
1
Loosen the 3 screws of
the left assembly cover.
2
Hold the assembly
horizontally and release
the upper hook.

When you demand small
parts like cogs and rollers,
order a set of assembly.
3
Keep the assembly
horizontally and undo
the hooks on side and
lower sides.
4
Remove the running
gear.

Be careful so as not to lose
the rollers and the cogs.

When you demand small
parts like cogs and rollers,
order a set of assembly.
Step
Procedure Points
(R5031)
Hook
(R5032)
Hooks
(R5033)
Running gear
Lower rack plate
(R5034)
