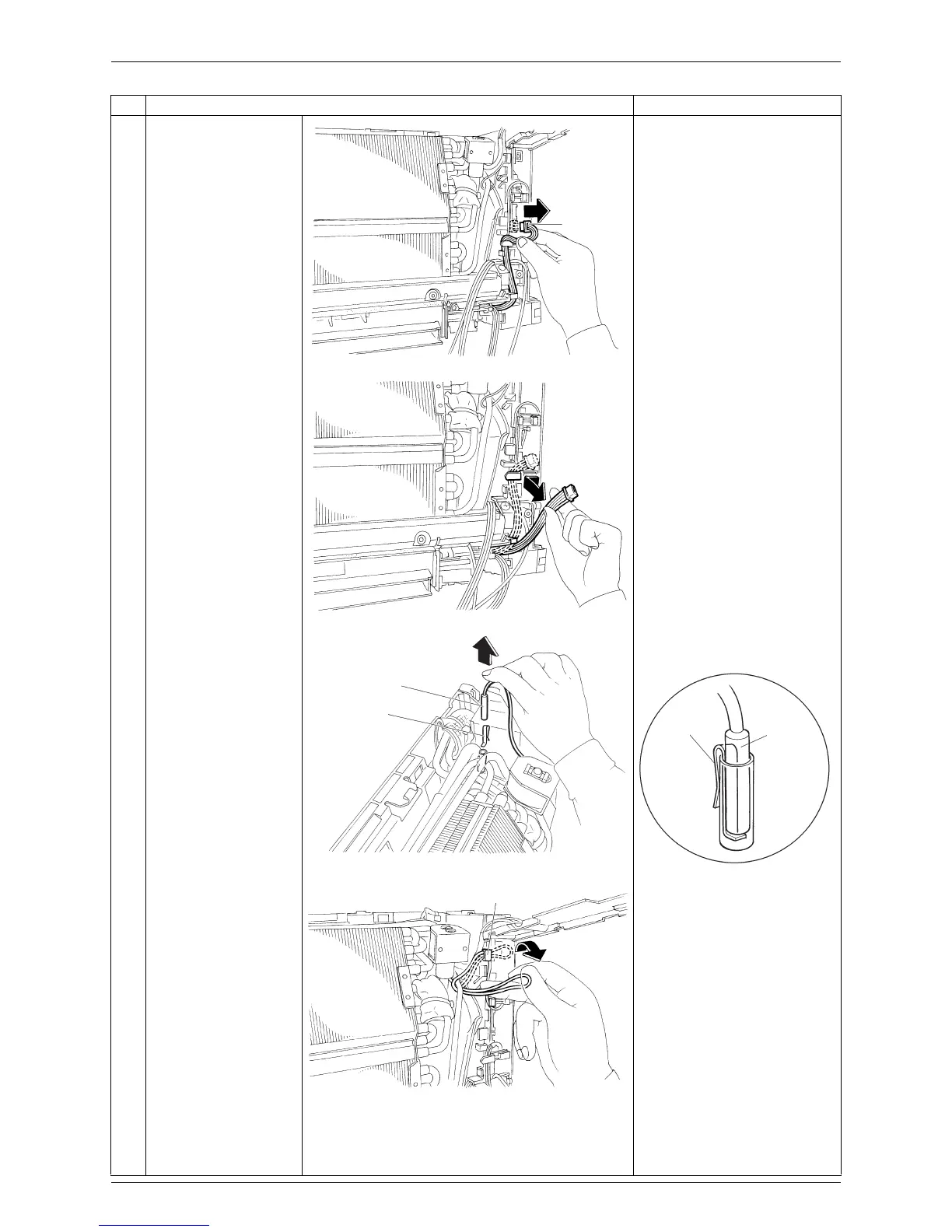

Si04-858 Removal of Electrical Box
Removal Procedure 27
10
Disconnect the
connector for the
reduction motor (front
panel mechanism)
(S49).
11
Release the harness
from the hook.
12
Release the heat
exchanger thermistor.
Pay attention so as not to
lose the clip.
13
Release the thermistor
lead wire from the hook.
When reassembling, hang
the excessive lead wire of
the heat exchanger
thermistor on the hook.
Step
Procedure Points
S49
(R3861)
(R3862)
Heat exchanger
thermistor
Clip
(R3863)
Clip
Heat
exchanger
thermistor
(R3864)
Hook
(R3865)
