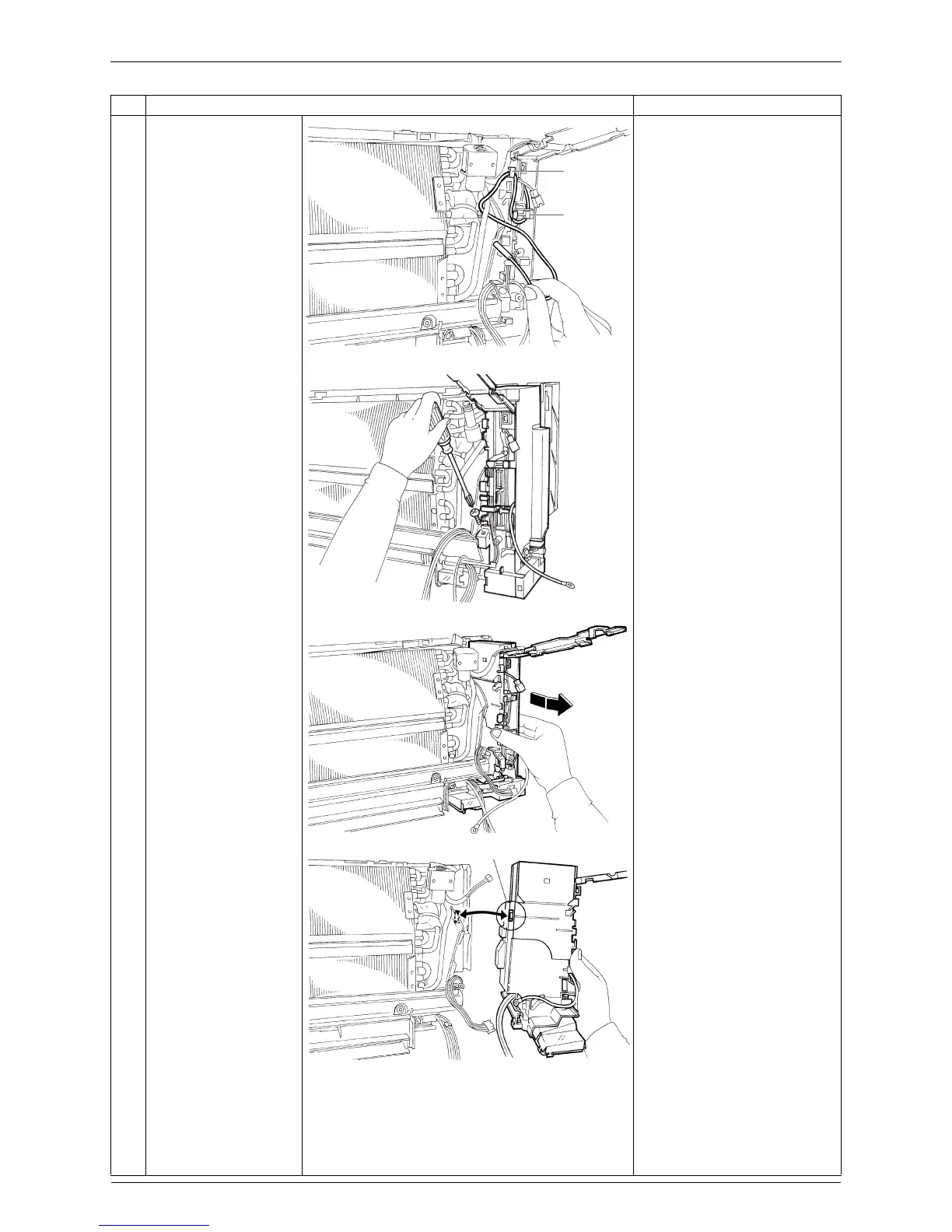

Removal of Electrical Box Si04-858
28 Removal Procedure
14
Layout of the lead wire
for the heat exchanger
thermistor
15
Loosen the screw of the
electrical box.
16
Tilt the front part of the
electrical box to the
right slightly and pull it
out.
Step
Procedure Points
Piping
Hook
Hook
(R3866)
(R5061)
(R3868)
Hook
(R3869)
