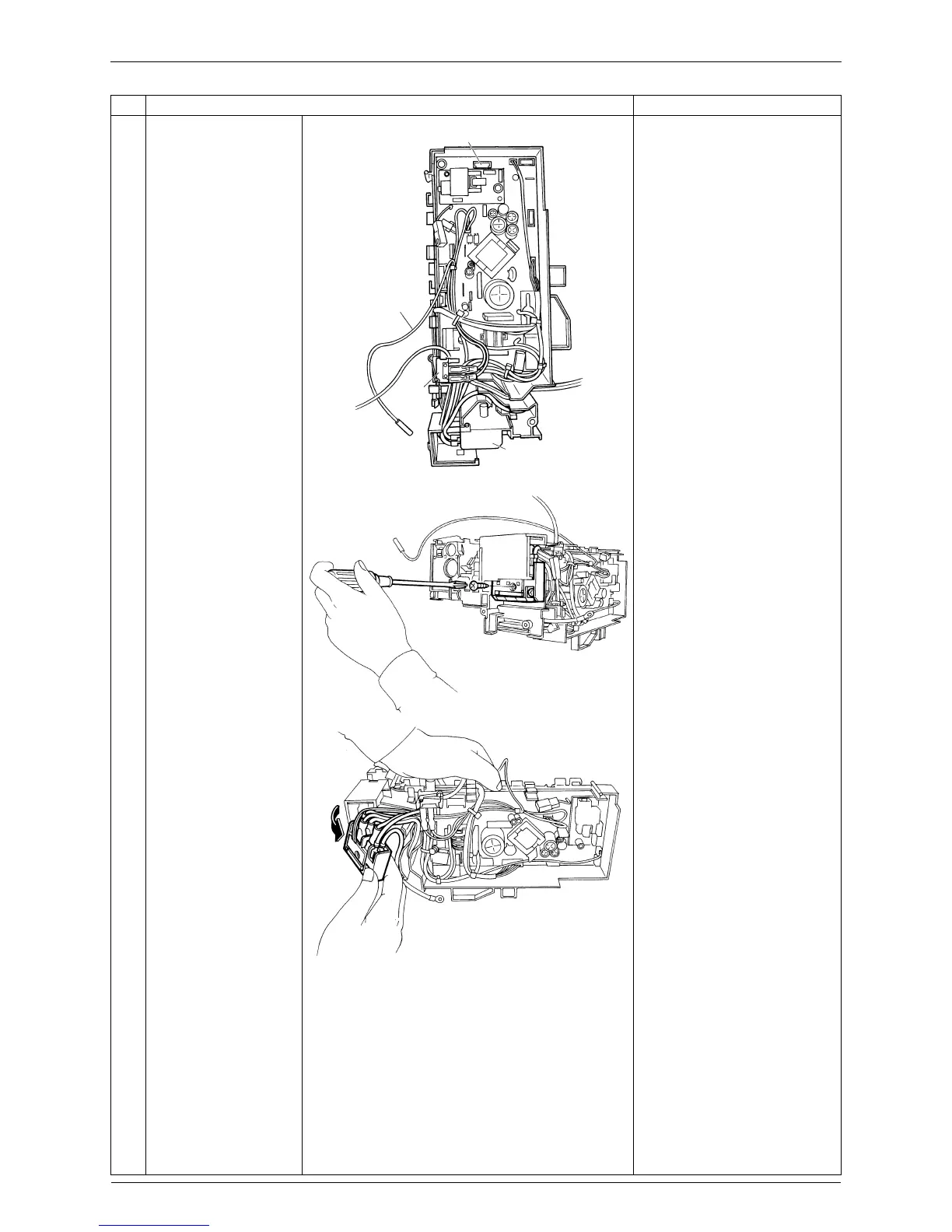

Removal of PCB Si04-858
32 Removal Procedure
5
Layout of the wiring
6
Loosen the screw and
pull out the terminal
board.
Step
Procedure Points
Heat
exchanger
thermistor
S21(HA)
Limit
switch
Terminal board
(R3876)
(R3877)
(R3878)
