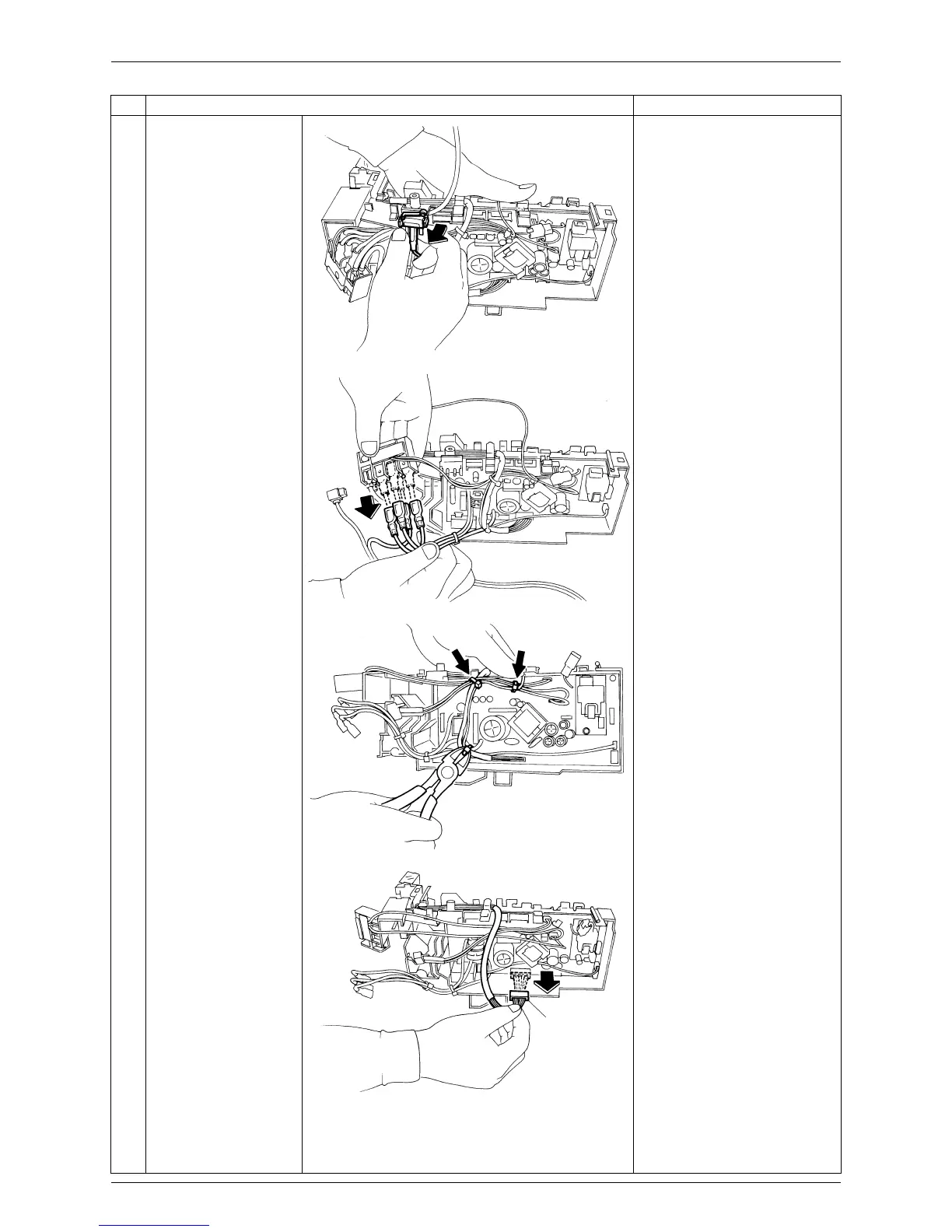

Si04-858 Removal of PCB
Removal Procedure 33
7
Pull out the limit switch.
8
Disconnect the
terminals from the
board.

Pb free soldering is adopted
for PCB.
When replacing PCB, use
the particular solder and
iron.
Black······(1)
White······(2)
Red
········(3)
9
Cut the clamps.

Clamps should be used all
the time.
Fix it as it was before.
10
Disconnect the
connector for the signal
receiver PCB (S46).
Step
Procedure Points
(R3879)
(R3880)
(R3881)
S46
(R3882)
