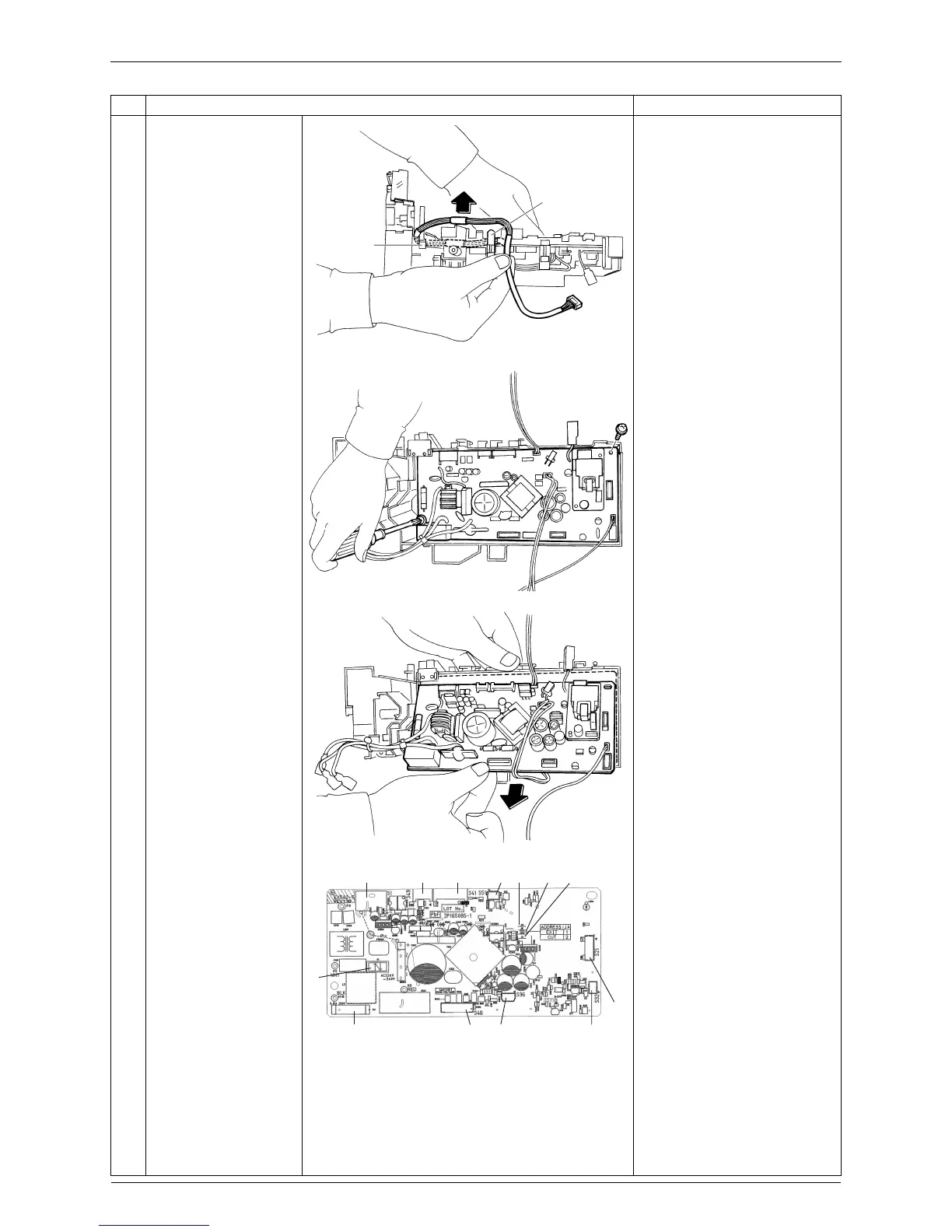

Removal of PCB Si04-858
34 Removal Procedure
11
Release the hooks and
draw out the harness
from the ditch.
12
Loosen the 2 screws
and remove the PCB.
13
Control PCB
Step
Procedure Points
Hook
Hook
(R3883)
(R3884)
(R3885)
S46
V1
S21
(R5062)
FU1
S1 S41 S51JB JA JCS49
S36 S32
