CAUTION
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.
• Do not place large objects near the sensor. Also keep heating units or humidifiers outside the sensor’s detection area.

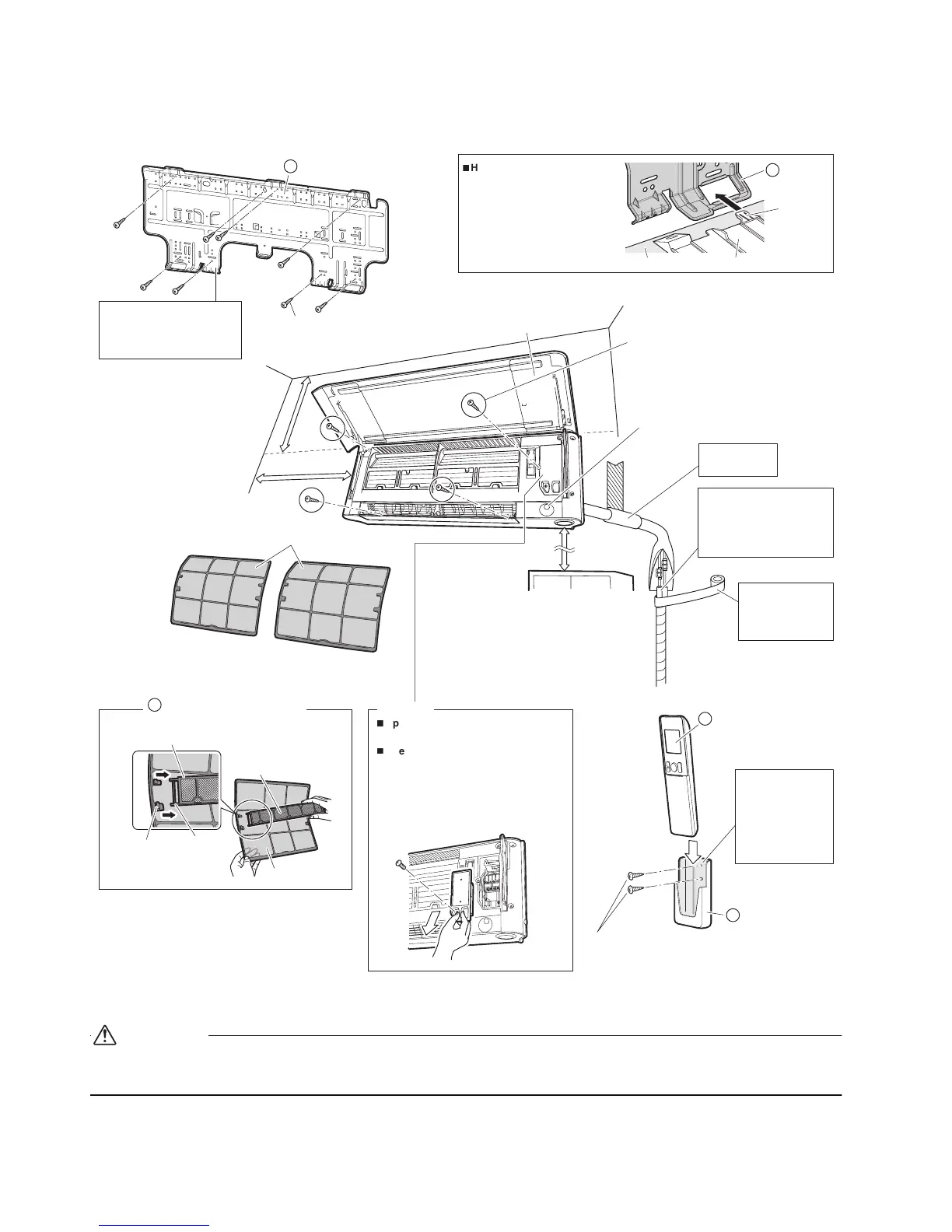

The mounting plate should be
installed on a wall which can
support the weight of the
indoor unit.
How to attach the indoor unit
Hook the claws of the bottom
frame to the mounting plate.
If the claws are difficult to hook,
remove the front grille.
Screws
(field supply: M4 × 25L)
Front grille
Clip
Bottom frame
Before screwing the
remote controller
holder to the wall,
make sure that
control signals are
properly received
by indoor unit.
Service lid
Opening service lid
Service lid is opening/closing type.
Opening method
1) Remove the service lid screws.
2) Pull out the service lid diagonally
down in the direction of the arrow.
3) Pull down.
INTELLIGENT EYE sensor
Wrap the insulation
pipe with the
finishing tape from
bottom to top.
Cut thermal insulation pipe
to an appropriate length and
wrap it with tape, making
sure that no gap is left in the
insulation pipe’s cut line.
Caulk pipe hole
gap with putty.
100mm or more
from ceiling
Front panel
50mm or more
from walls
(on both sides)
Filter frame
Tab
Claw
Titanium apatite
photocatalytic
air-purifying filter
Air filter
Air filters
Screws (M4 × 16L)
B Titanium apatite photocatalytic
air-purifying filter (2)
C Wireless remote controller
D Remote controller
holder
A Mounting plate
Fixing screws for
remote controller holder
(field supply: M3 × 20L)
* When dismounting the front grille, refer
to removing and installing front grille on
page 4.
A Mounting
plate
Make sure that there are no obstacles within
500mm under the signal receiver.
Such obstacles, if any, may have an adverse
influence on the reception performance of
the receiver and the reception distance may
be shortened.
500mm
or more
