Daikin FTXG25JV1BA Installation Manual

■English 4
English

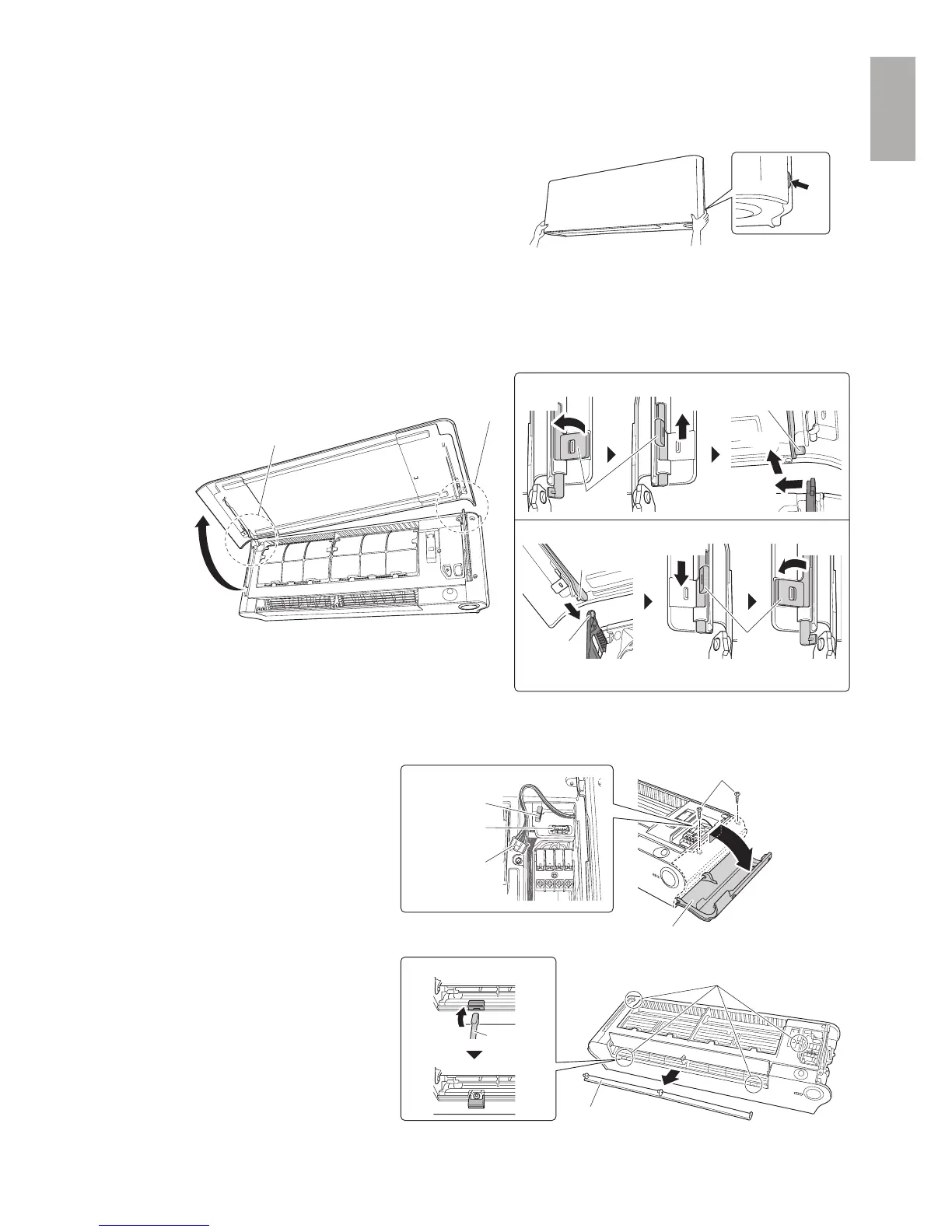

Preparation before Installation
1.
Removing and installing front panel
• Removal method
1) Hook fingers on the indentations on the left and right
sides of the indoor unit, and open the front panel to a
position higher than the horizontal level.
2) Raise the front panel lock tabs on the left and right sides,
and slide the front panel locks upward.
3) Remove the panel shafts on both sides from the shaft
holes, and dismount the front panel.
• Installation method
1) Insert the panel shafts on both sides of the front panel into the shaft holes.
2) Slide the front panel locks downward, and secure the front panel locks with the tabs laid outward.
3) Close the front panel after checking that the front panel is securely mounted.
2.
Removing and installing front grille
• Removal method
1) Remove the front panel and air
filters.
2) Remove the service lid. (Refer to the
opening method on page 3.)
3) Disconnect the wire harness from
the wire clamp, and remove the wire
harness from the connector.
4) Remove the right-side cover.
(2 screws)
5) Rotate the flap (large) and dismount
the flap (small).
6) Open the 2 screw covers, and
remove 4 screws from the front
grille.
Front panel shaft
Front panel
locks
Open at least
90 degrees.
3) Slide
2) Slide
4) Pull
1) Pull
(a) Removal method
(b) Installation method
Front panel
shaft
Slot
1) Slide
2) Push
(b)
(a)
* The front panel will not close completely if the front panel locks have
not been properly engaged.
* Front panel
locks
Wire clamp
Connector
Wire harness
Screws
Right-side cover
Lift up on the cover
and open it toward
the outside.
Screw driver
Frap (small)
4 points
Upward
• Opening method

Daikin FTXG25JV1BA Specifications

General

Brand	Daikin
Model	FTXG25JV1BA
Category	Air Conditioner
Language	English
