12 ■English
Outdoor Unit

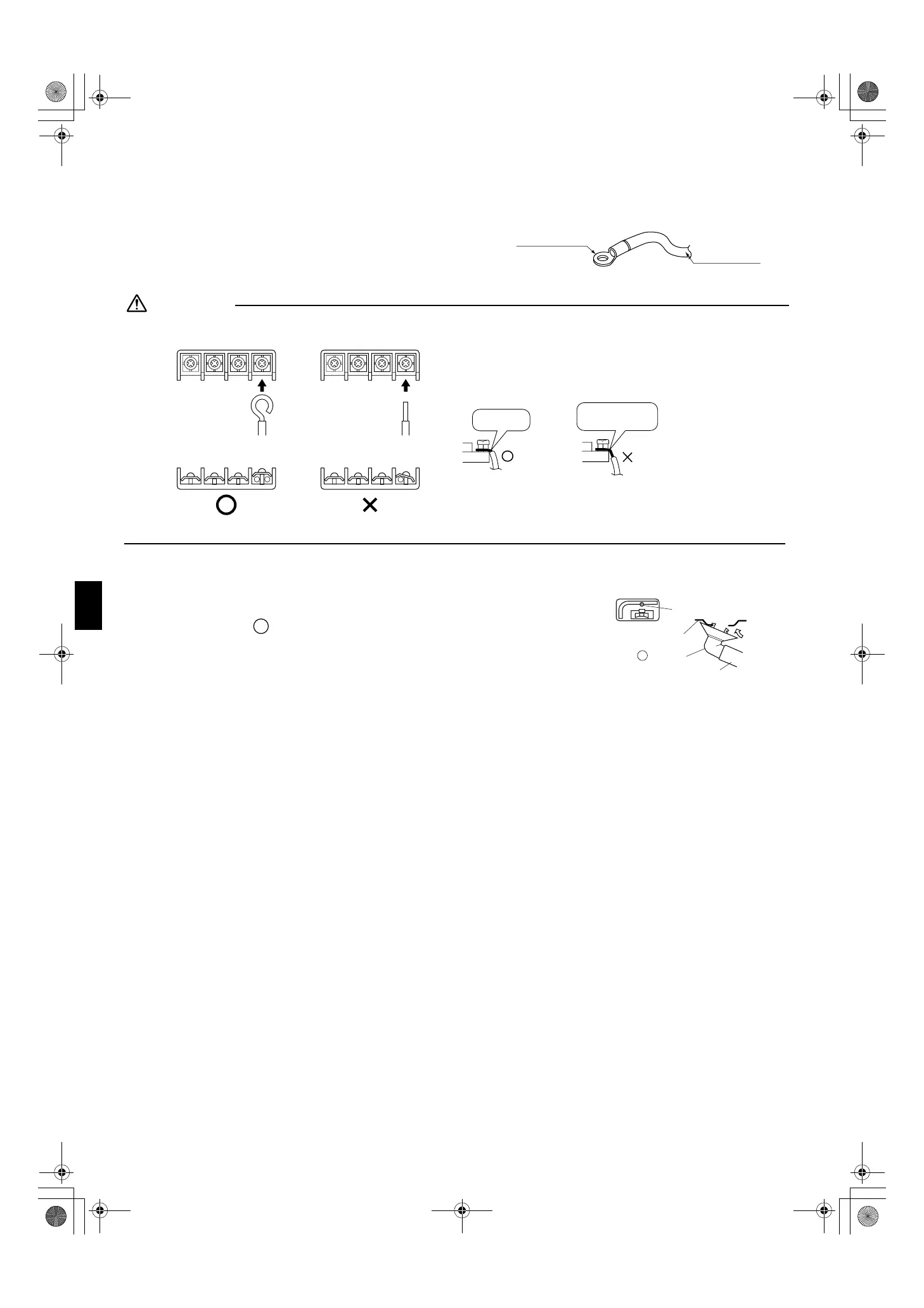

Observe the notes mentioned below when wiring to the terminal block.
Precautions to be taken for power supply wiring.
(Use a round crimp-style terminal for connection to the terminal block.
In case it cannot be used due to unavoidable reasons, be sure to
observe the following instruction.)
CAUTION
When connecting the connection wires to the terminal block using a single core wire, be sure to perform curling.
Problems with the work may cause heat and fires.
• Pull the wire and make sure that it does not disconnect. Then fix the wire in place with a wire stop.
7.
Drain work.
1) Use drain plug for drainage.
2) If the drain port is covered by a mounting base or floor surface, place additional
foot bases of at least 30mm in height under the outdoor unit’s feet.
3) In cold areas, do not use a drain hose with the outdoor unit.
(Otherwise, drain water may freeze, impairing heating performance.)
Stranded wire
Round crimp-style
terminal
Strip wire end
to this point.
Excessive strip length
may cause electrical
shock or leakage.
Good Wrong
Stripping wire at terminal block
Drain-water hole
Bottom frame
Drain plug
Hose (available commercially,
inner dia. 16mm)
K
K
01_EN_3P211822-2C.fm Page 12 Tuesday, November 27, 2007 6:31 PM
