SiBE01-503 Indoor Unit
Removal Procedure 79
For restoring.

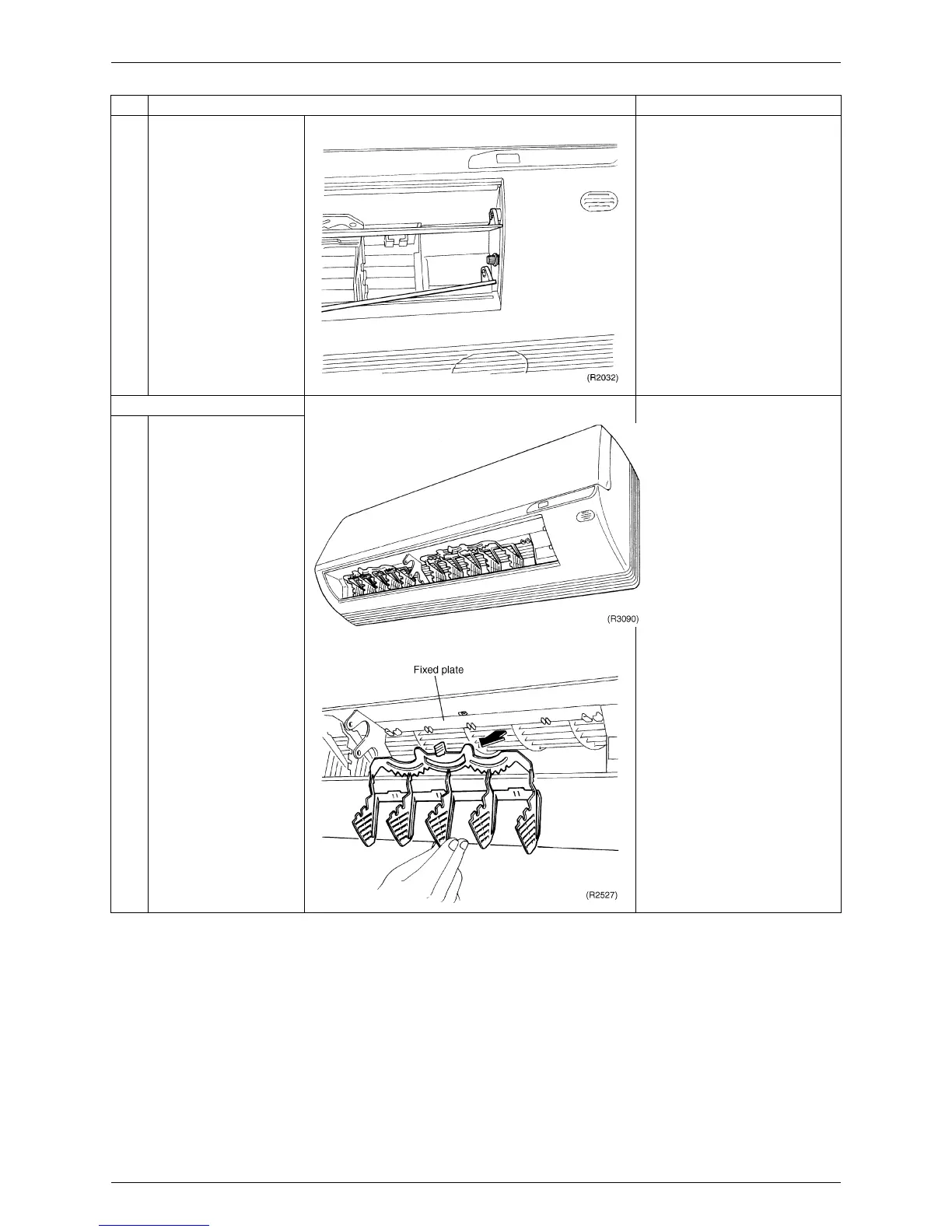

1. Since the key pattern hook
is provided on the left side,
insert the edge of the blade
to the tip while rotating it.
2. Restore the two fixed parts
of the horizontal blade onto
the hook.
2. Remove the vertical blades.
1
Disengage the vertical
blade’s joint from the
fixed plate.
2
Remove the blade
forward.
Five vertical blades are
integrated with the joint rod.
(so, only one blade can’t be
exchanged.)
