■English 12

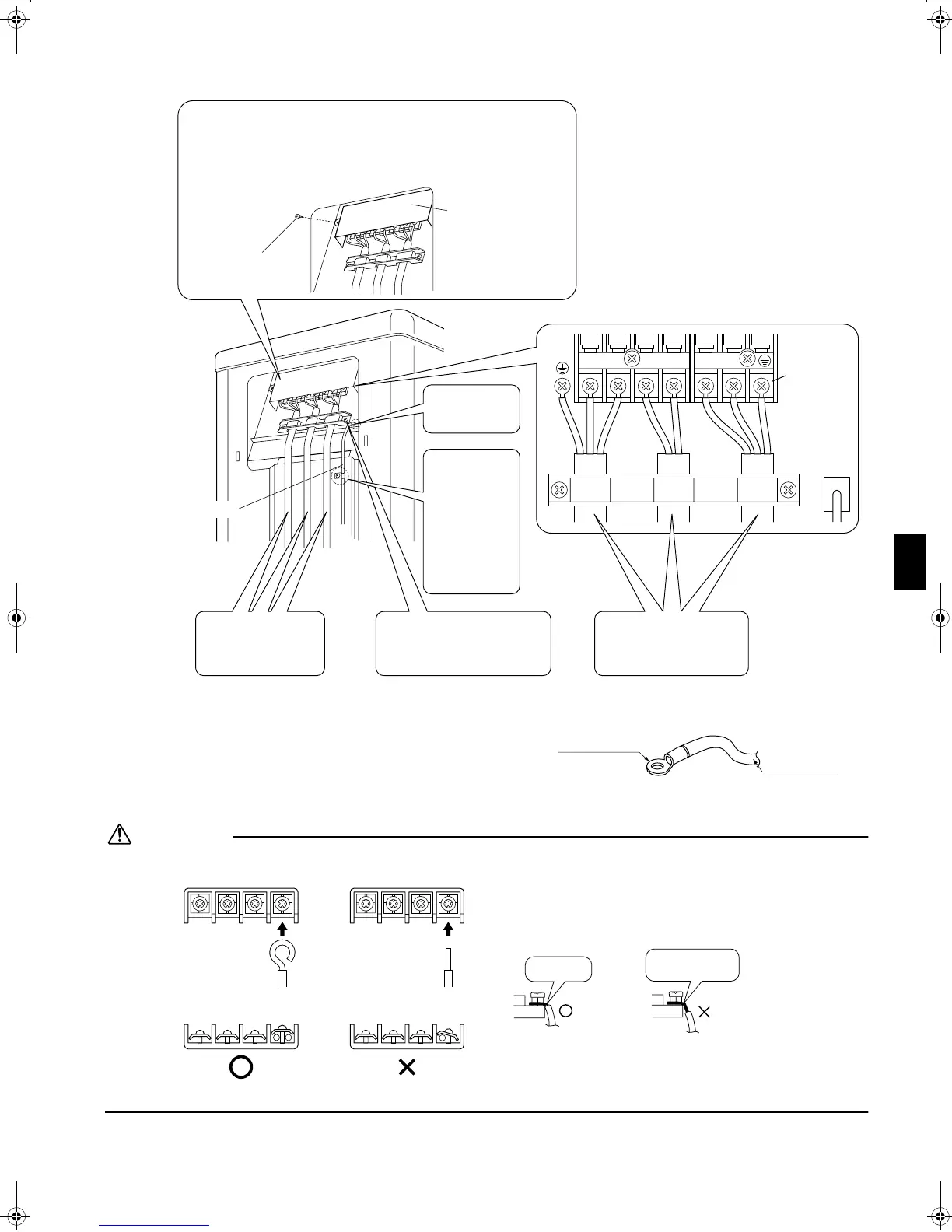

Observe the notes mentioned below when wiring to the power supply
terminal board.
Precautions to be taken for power supply wiring.
(Use a round crimp-style terminal for connection to the power supply
terminal board. In case it cannot be used due to unavoidable reasons,
be sure to observe the following instruction.)
When connecting the connection wires to the terminal board using a single core wire, be sure to perform curling.
Problems with the work may cause heat and fires.
• Pull the wire and make sure that it does not disconnect. Then fix the wire in place with a wire stop.
<FTN>
Thermistor
Firmly secure wire retainer
so wire terminations will
not receive external stress.
Use the specified
wire type and
connect it securely.
To connect the wires, remove the screw and pull up the
terminal block cover.
After the wiring is complete, return the cover to its original
location and secure with the screws.
Terminal
block cover
Screw
L
N
321
4
Power
supply
terminal
block
Shape wires so that the
service lid and shut-off
valve cover fit securely.
Plug in the
connector fully.
Secure the
thermistor
cable with a
wiring tie so
that no
external stress
is applied to
the connector.
Electric Wire
Round crimp-style
terminal
Strip wire end
to this point.
Excessive strip length
may cause electrical
shock or leakage.
Good Wrong
Stripping wire at terminal block
01_EN_3P147083-2F.fm Page 12 Friday, October 28, 2005 9:29 AM
To Next Page
