5 ■English
Indoor Unit
1.
Installing the mounting plate.
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

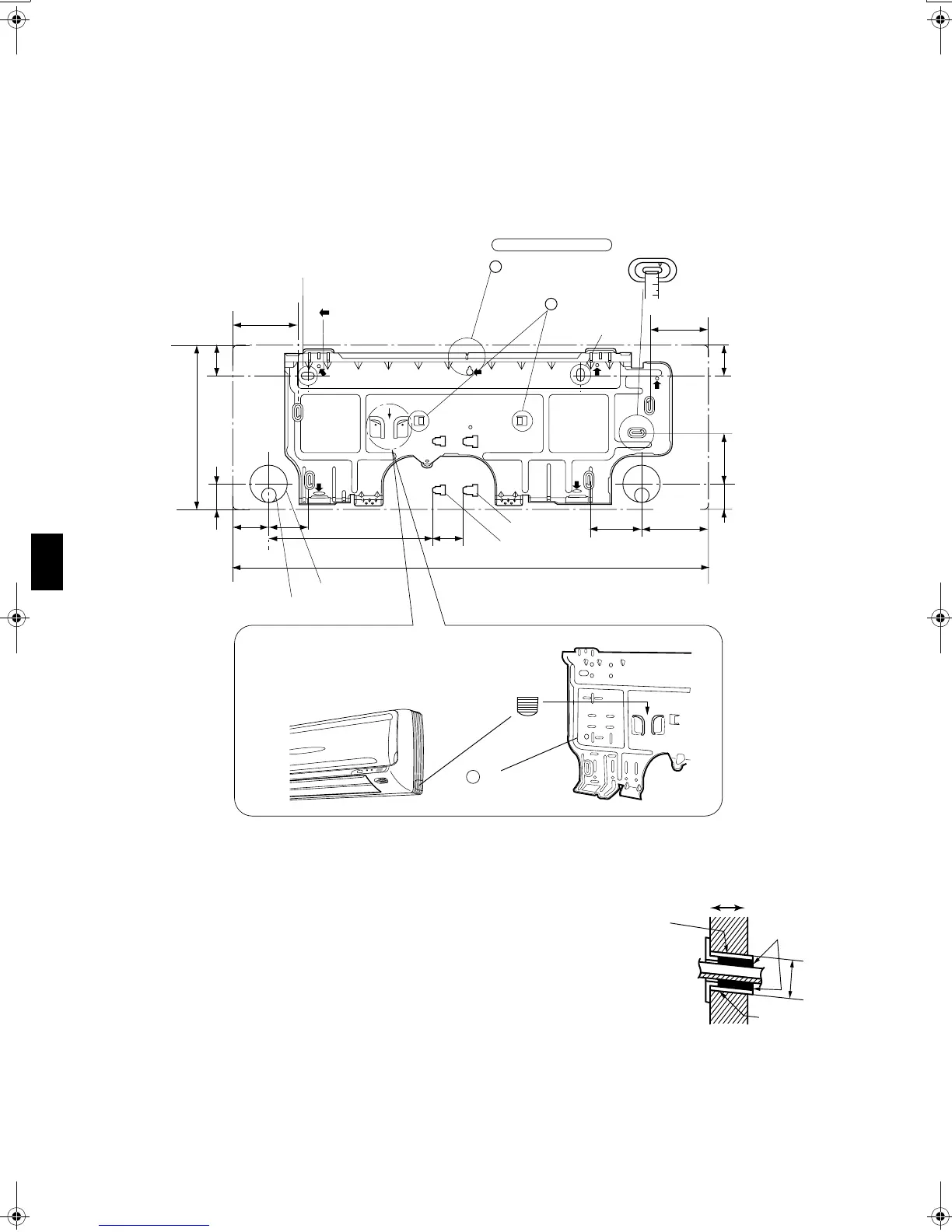

Recommended mounting plate retention spots and Dimensions
2.
Boring a wall hole and installing wall embedded pipe.
• For walls containing metal frame or metal board, be sure to use a wall embed-
ded pipe and wall cover in the feed-through hole to prevent possible heat,
electrical shock, or fire.
• Be sure to caulk the gaps around the pipes with caulking material to prevent
water leakage.
1) Bore a feed-through hole of 65mm in the wall so it has a down slope toward
the outside.
2) Insert a wall pipe into the hole.
3) Insert a wall cover into wall pipe.
4) After completing refrigerant piping, wiring, and drain piping, caulk pipe hole
gap with putty.
105
273
5241.5
518541.5
60
65
85
734
50269
110
95
(Bolt size : M10)
(Bolt size : M10)
Recommended mounting plate
retention spots (6 spots in all)
Leveling mounting plate
Dangle a weighted thread
and align thread with
vertical arrow.
a
Place a leveler
on raised tab.
b
Use tape measure
as shown.
Position the end of
tape measure at ∇.
Unit outline
(unit: mm)
Gas pipe end
Liquid pipe end
Through-the-wall
hole ø65mm
Drain hose position
Removed pipe
port cover
* The removed pipe port cover can be
kept in the mounting plate pocket
Mounting plate
A
Inside Outside
Caulking
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
φ65
01_EN_3P147083-2F.fm Page 5 Friday, October 28, 2005 9:29 AM
