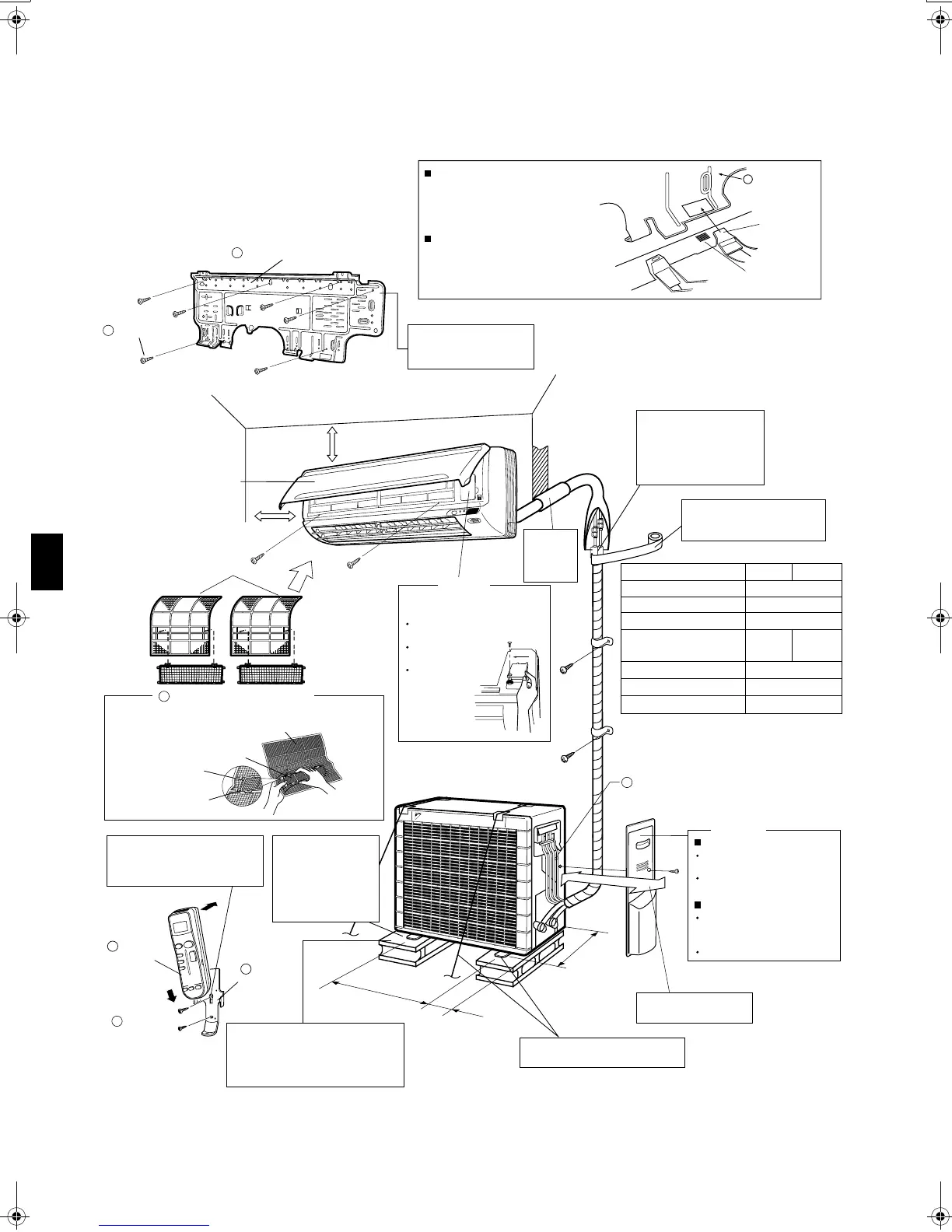

Titanium Apatite
Photocatalytic
Air-Purifying Filter
Filter frame
Air filter
Ta b
D
M3 × 20L
Wireless
remote
controller
E
Remote
controller
holder
Cut thermal insulation
pipe to an appropriate
length and wrap it with
tape, making sure that no
gap is left in the insulation
pipe’s cut line.
Wrap the insulation pipe with
the finishing tape from bottom
to top.
Use optional kit when
extending the thermistor cable.
Caulk
pipe hole
gap
with putty.
30mm or more from ceiling
Front panel
50mm or more from walls
(on both sides)
Air filter
In sites with poor drainage, use block
bases for outdoor unit.
Adjust foot height until the unit is
leveled. Otherwise, water leakage or
pooling of water may occur.
470
(Foot bolt-hole centres)
(From unit’s side)
115
Where there is a danger of the unit
falling, use foot bolts, or wires.
(Foot bolt-hole
centres)
288
Allow space for piping
and electrical servicing.
250mm from wall
unit: mm
M4 × 25L
The mounting plate
should be installed on a
wall which can support the
weight of the indoor unit.
Mounting plate
A Mounting
plate
Clip
Mark (rear side)
Bottom frame
How to remove the service lid.
Remove the screw on the
service lid.
Slide the lid downward
to remove it.
How to attach the service lid.
Insert the upper part of
the service lid into the
outdoor unit to install.
Tighten the screws.
This service lid is an
open/close type.
Remove the screws on
the service lid.
Slide the service lid
leftward.
Rotate the service
lid upward.
Service lid
A
B
J
Service lid
How to attach the indoor unit.
Hook the claws of the bottom frame
to the mounting plate.
If the claws are difficult to hook,
remove the front grille.
How to remove the indoor unit.
Push up the marked area (at the
lower part of the front grille) to
release the claws. If it is difficult to
release, remove the front grille.
Front grille
Titanim Apatite Photocatalytic
Air-Purifying Filter (2)
25 35
Gas pipe
Liquid pipe
O.D. 6.4mm
O.D. 9.5mm
Max. allowable length
Max. allowable length without
additional charge
*
Be sure to add the proper amount of additional refrigerant.
Failure to do so may result in reduced perfomance.
15m
10m
Min. allowable length
Model
3m
Additional charge of refrigerant
Max. allowable height
20g/m
7.5m 10m
C
F
Thermistor cable
Before screwing the remote
controller holder to the wall, make
sure that control signals are
properly received by indoor unit.
If there is a lot of
vibration with outdoor
unit installations such
as wall-mounted
installations, use anti-
vibration rubber, etc.,
for the outdoor unit.
Set
Push
