Indoor Unit
1.
Installing the mounting plate.
• The mounting plate should be installed on a wall which can support the weight of the indoor unit.
1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring
points on the wall.
2) Secure the mounting plate to the wall with screws.

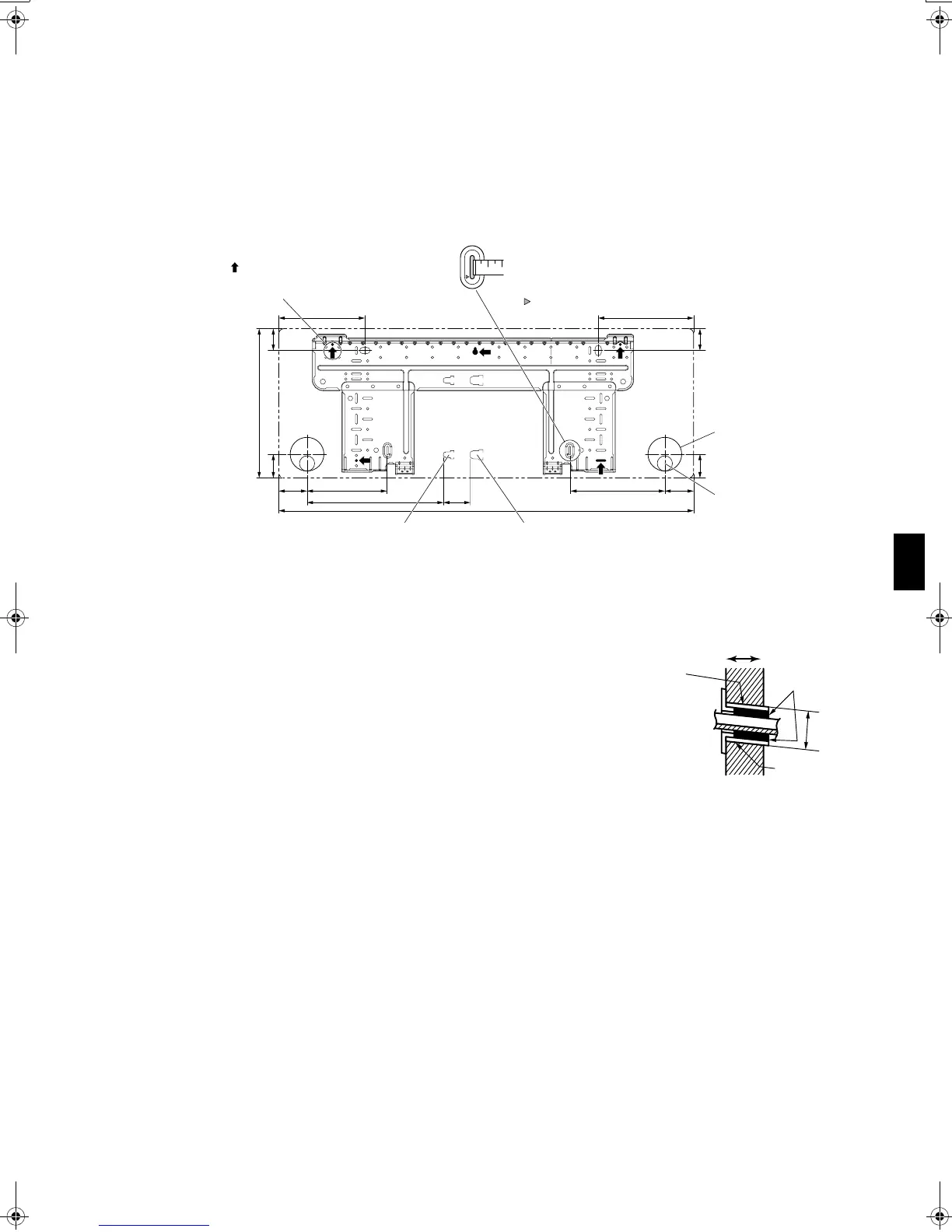

Recommended mounting plate retention spots and Dimensions
2.
Boring a wall hole and installing wall embedded pipe.
• For walls containing metal frame or metal board, be sure to use a wall embed-
ded pipe and wall cover in the feed-through hole to prevent possible heat,
electrical shock, or fire.
• Be sure to caulk the gaps around the pipes with caulking material to prevent
water leakage.
1) Bore a feed-through hole of 65mm in the wall so it has a down slope toward
the outside.
2) Insert a wall pipe into the hole.
3) Insert a wall cover into wall pipe.
4) After completing refrigerant piping, wiring, and drain piping, caulk pipe hole
gap with putty.
800
184
54.5 153.8 181.7 55.5
263 51.9
166
42.245.9
288
42.245.9
Recommended mounting
plate retention spots.
(5 spots in all)
Liquid pipe end Gas pipe end
Use tape measure
as shown.
Position the end
of a tape measure
at .
Drain hose position
Through the wall
hole φ65mm
Inside Outside
Caulking
Wall embedded pipe
(Field supply)
Wall hole cover
(Field supply)
Wall embedded pipe
(Field supply)
φ65
