Daikin FTYN35KAV1A - Removal of Fan Motor

Removal of Fan Motor Si041137
34 Removal Procedure

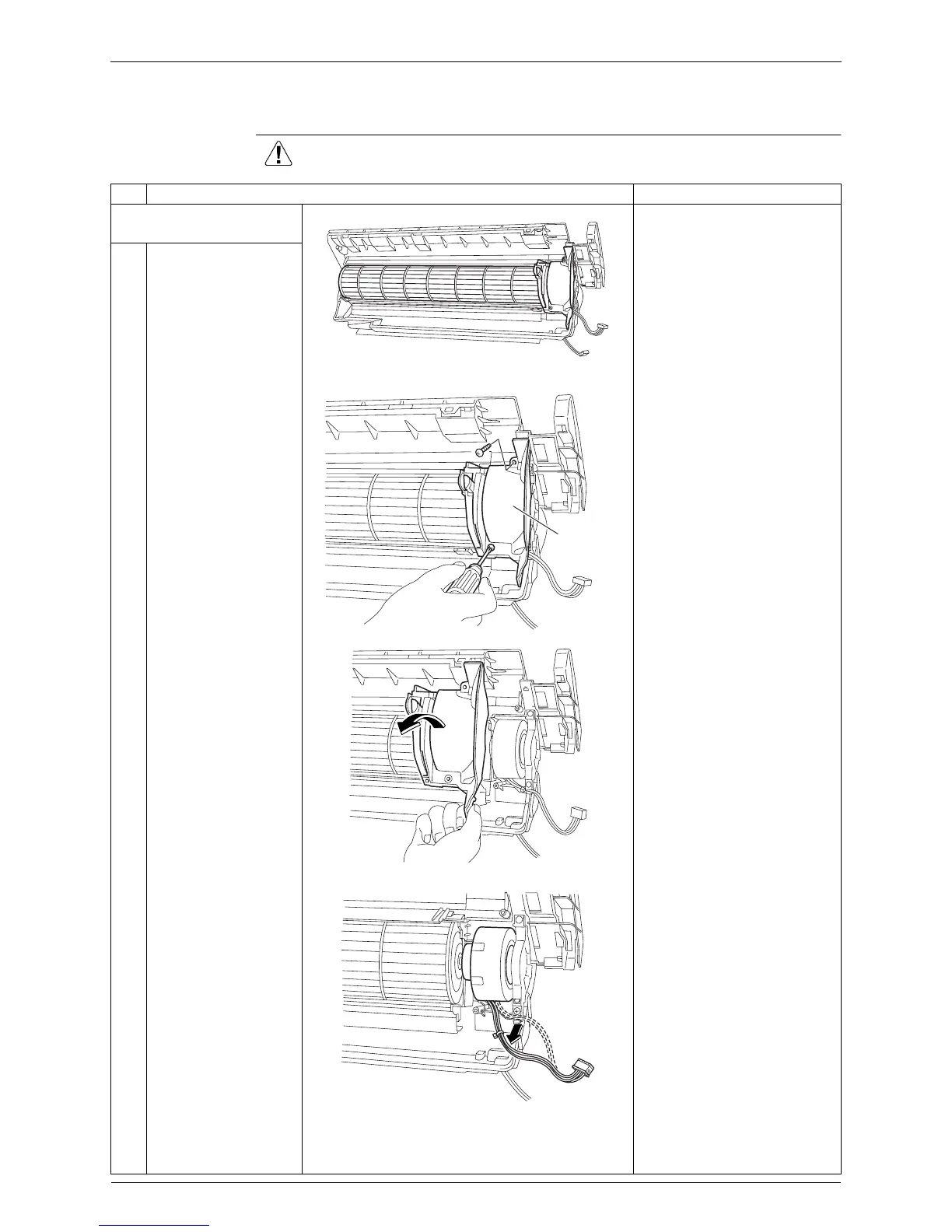

11.Removal of Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the right side
plate.
Preparation

Remove the indoor heat
exchanger according to the
“Removal of Indoor Heat
Exchanger”.
1
Remove the 2 screws
and remove the right
side plate.
2
Release the fan motor
wire harness from the
hook.
(R8112)
(R13502)
Right side
plate
(R8114)
(R8115)
