Outdoor Unit
■
■■
■
Indoor Unit
1. Air filter
2. Photocatalytic deodorizing filter or
Air purifying filter:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front grille
5. Grille tab
6. Display
7. Air outlet
8. Flap (horizontal blade):
(page 12.)
9. Louvers (vertical blades):
•
The Louvers are inside of the air outlet.
(page 12.)
10. Operation lamp (green)
11. TIMER lamp (yellow):
(page 14.)
12. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
The operation mode refer to the following table.
•
This switch is useful when the remote controller
is missing.
13. Room temperature sensor:
•
It senses the air temperature around the unit.
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed ..........beep
•
Operation stop ..............beeeeep
■
■■
■

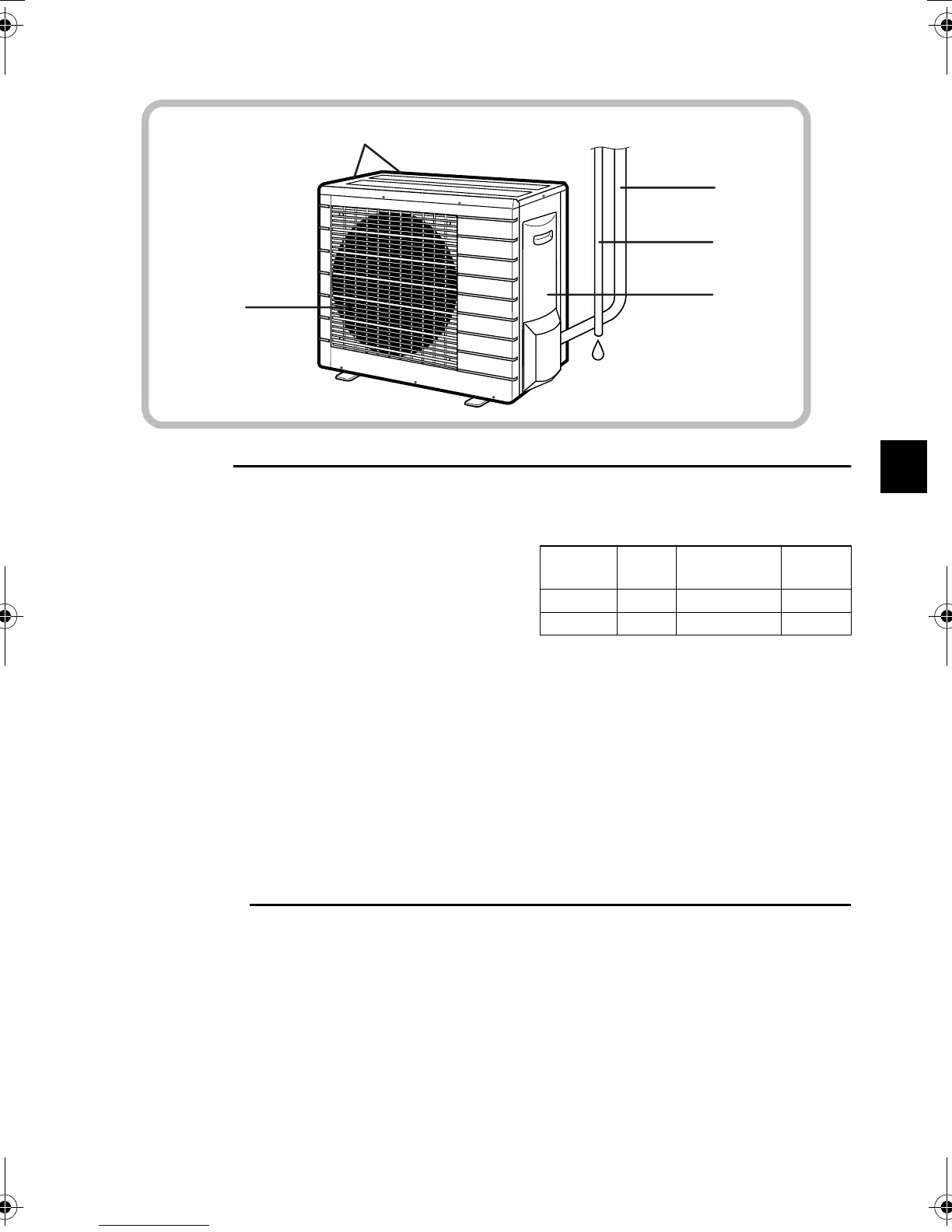

Outdoor Unit
15. Air inlet:
(Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
•
It is inside of this cover.
Appearance of the outdoor unit may differ from some models.
17
18
19
16
15
Mode
Temperature
setting
Air flow
rate
FTS COOL
22
°
C
AUTO
FTYS AUTO
25
°
C
AUTO
