Application Information

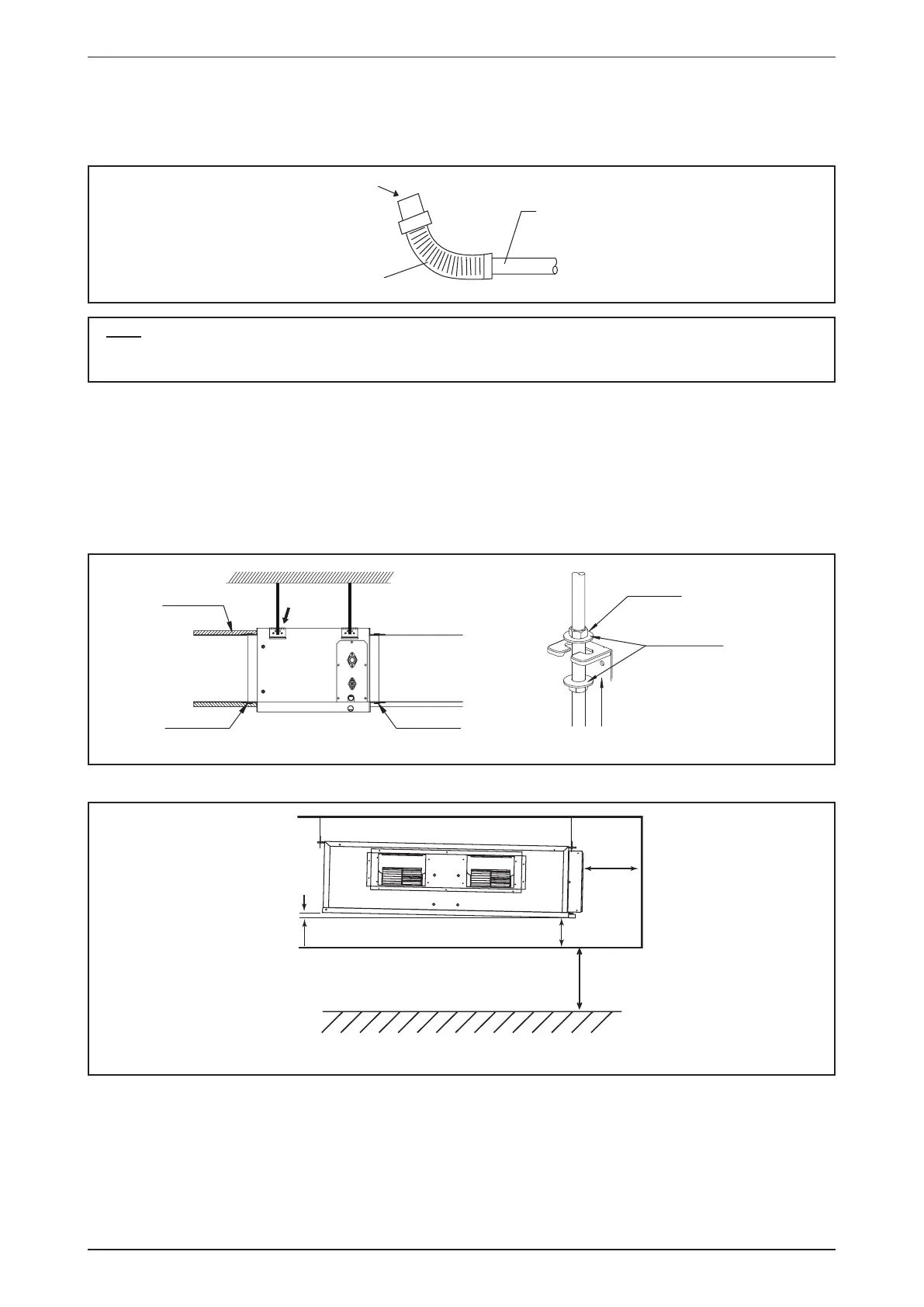

Drain Test
• Connect the main drain pipe to the exible drain.
• Feed water from exible drain hose to check the piping for leakage.
• When the test is completed, connect the exible drain hose to the drain connector on the indoor unit.
Feed Water
Flexible Drain Hose
Main Drain Pipe
NOTE
This Indoor Unit uses a drain pump for condensed water drainage. Install the unit horizontally to prevent
water leakage or condensation around the air outlet.
•
Model: FWC-C
The indoor unit must be installed such that there is no short circuit of the cool discharge. Respect the
installation clearance. Do not put the indoor unit where there is direct sunlight on unit. The location is suitable
for piping and drainage and it must have a large distance between a door and unit.
Ceiling Concealed Mounting
• Use the hanger supplied with the unit.
• Make sure that the ceiling is sufciently strong to withstand the weight.
Insulation material
(eld supply)
Aluminium tape
(eld supply)
Aluminium tape
(eld supply)
Air outlet side
Air inlet side
See
Detail A
Field supply
W
asher for hanger bracket
(attached)
Tighten
Detail A
Provide clearance for servicing ease and optimal air ow as shown in the diagram.
300mm* or more
300mm
or more
10mm
* Can be smaller than 300mm if ceiling is removable.
Floor
2300mm or more
Ceiling
