Daikin MC401VE - Removal of Fan Motor

Removal Procedure of MC401VE SiE74-202
36 Removal Procedure
1.5 Removal of Fan Motor
Procedure Warning Be sure to turn off all power supplies before disassembling work

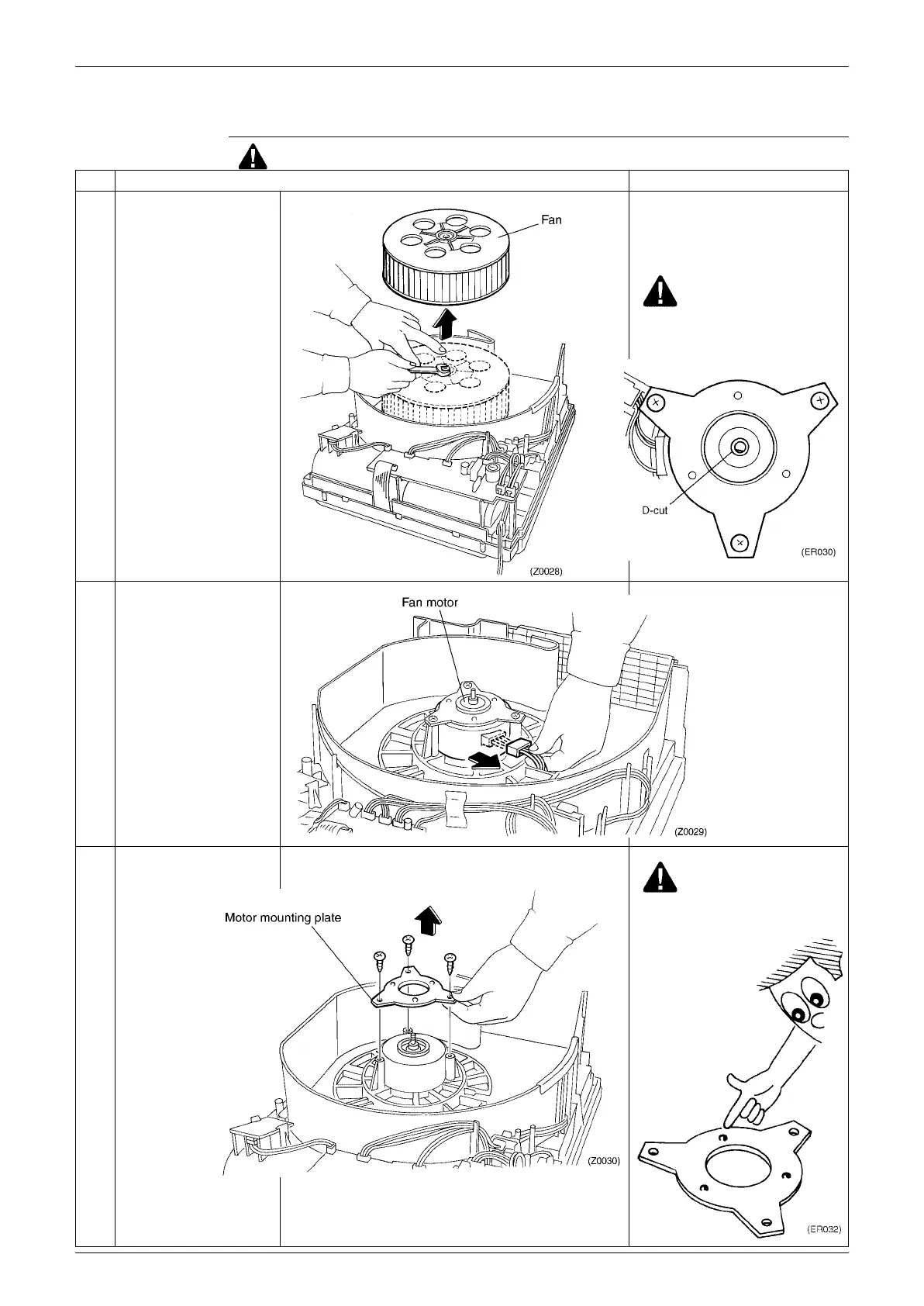

Step Procedure Points
1 Remove back panel to
remove fan securing nut.
Caution
When reassembling fan, match
the D-cut direction of fan and
shaft.
2Disconnect connector.
3 Remove three screws on
motor mounting plate.
Caution
When installing motor mounting
plate, put the surface with
protrusions up side.
