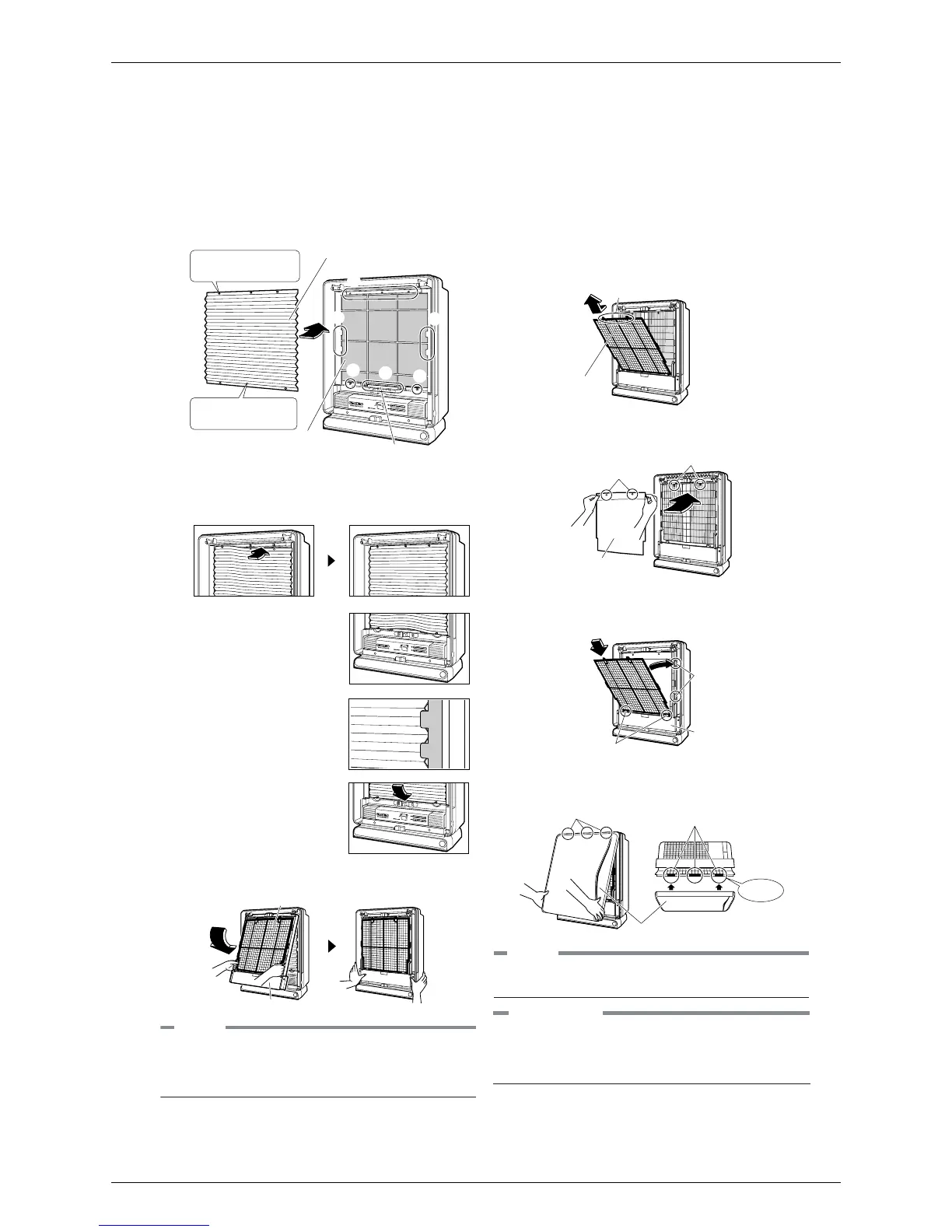

3. Attach the pleated filter.
• Remove the pleated filter from the bag.
• Hook on the top and bottom hooks, insert into the left and right
hooks, and then secure with the tape.
1) Place the pleated filter holes on the 3 upper tabs of the
deodorizing catalyst unit.
2) Hook the holes of the pleated
filter on the bottom hooks.
(2 locations)
3) Insert the pleated filter into the
left and right hooks.
4) Secure the pleated filter with the
tape.
4. Install the plasma ionizer in
its original configuration.
• Holding the handle, snap onto the 2 upper hooks and push in.
• Insert the plasma ionizer fully.
NOTE
•
Only run the unit with the pre-filter and pleated filter in place. If they
are not in place, running the machine may break it.
•
If the front and blue sides of the pleated filter are reversed, the unit’s
performance will suffer.
Attaching the bio-antibody filter
1. Remove the pre-filter.
• Remove by pulling out in front while holding the tabs on top of the
pre-filter.
2. Attach the bio-antibody filter.
• Hook the holes (2 locations) of the bio-antibody filter on the hooks
(2 locations) of the plasma ionizer.
3. Restore the pre-filter.
• Hook the bottom part of the pre-filter on the bottom hooks
(2 locations) of the plasma ionizer and then insert it into the left
and right hooks (4 locations).
4. Restore the front panel.
• Hook the top hooks (3 locations) of the front panel on the grooves
on top of the main unit and then close the panel.
NOTE
• Securely close the panel. Failing to do so may cause activation of
the safety switch and out of unit operation.
• The bio-antibody filter is a dedicated filter to speed up virus
elimination. Use it in winter when air is dry and virus is easy to grow.
Change and storage (page 9.)
* The air cleaning effect remains regardless of the attachment.
Pre-filter
Plasma ionizer
Pull out in front to remove.
Pre-filter
Bio-antibody filter
Top hooks (2 locations)
Holes
(2 locations)
Left and
right
hooks
(4 locations)
Hooks
(2 locations)
Plasma
ionizer
Top grooves (3 locations)
Top hooks (3 locations)
Overhead view
Hook
Front panel
ATTENTION
1)
2)
2)
3)
3)
Deodorizing
catalyst unit
4)
The side with the three
holes goes up.
The white side should
be facing you.
Pleated filter
Securing tape
To Next Page
