Read First

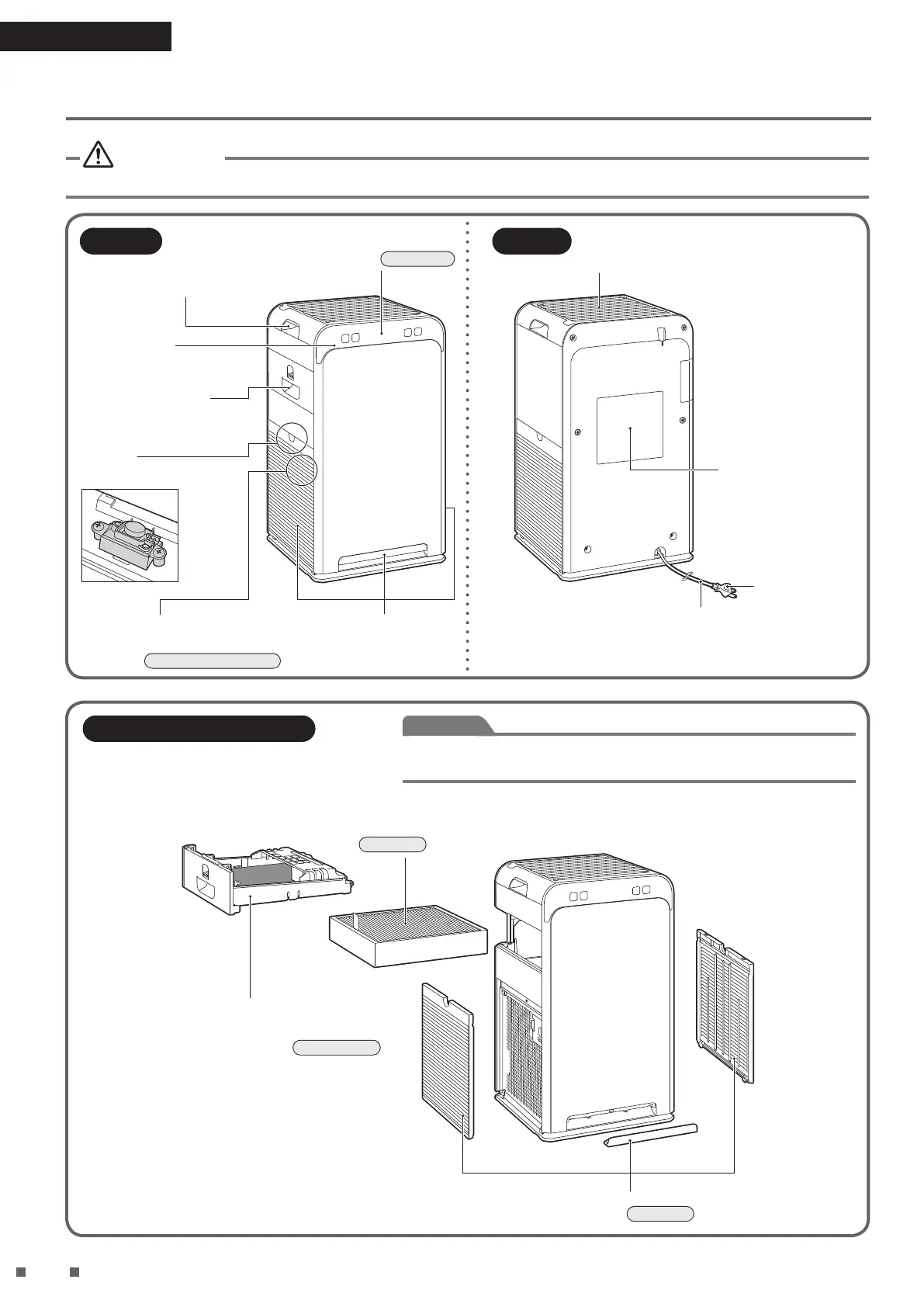

Names of Parts and Operations
CAUTION
Do not lift up the unit holding the grip on the carbon lter unit. (Injury may result from the unit falling)
Front Back
Operating/
Indicator panel
► Page 8, 9
Carbon lter Unit
Grip
(for carrying the unit)
Odor sensor
Inside the unit.
Air outlet/Outow grille
Outow grill cannot be removed.
Dust/Particle sensor
Inside the air inlet (left-side).
► Page 8, 9, 15, 16, 17
Model name/
Production no.
Air inlets
Front/Side
Power supply cord
Power supply
plug
UV unit
Inside the unit.
Main Removable Parts
Pre-lter
► Page 17
Carbon lter unit
(Black lter: Carbon lter)
► Page 11, 18
Dust collection lter
(White lter)
► Page 18
Attention
To prevent injury or malfunction, be sure to only operate the unit with all
parts attached.
