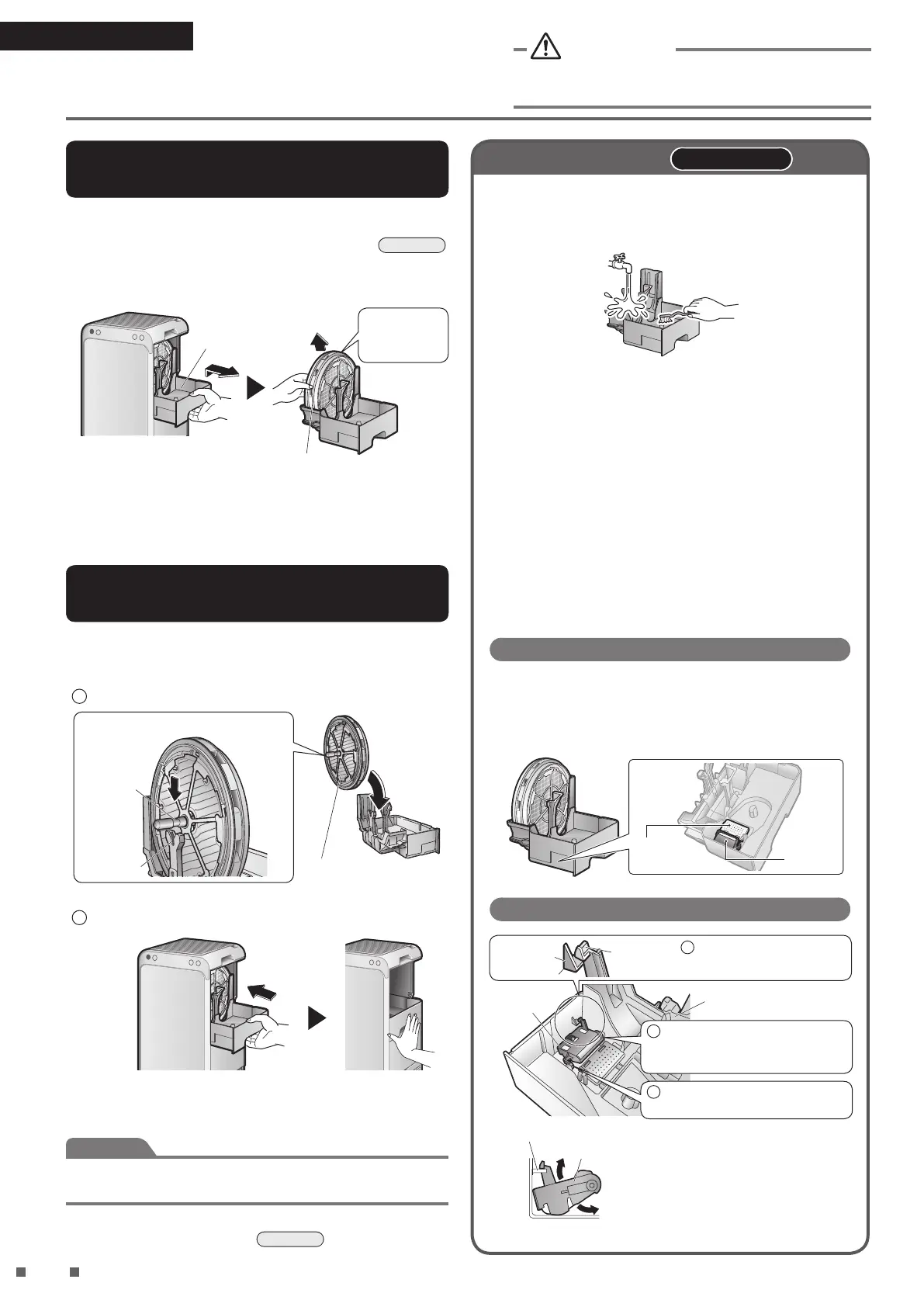

1. Take out the water tank from the main unit.
►
Page 13
2. Remove the humidifying tray and then remove
the humidifying lter unit from the tray.
Humidifying tray
Humidifying lter unit
Lift up slightly and pull out
Hold the outer
periphery of
the frame
•
Pull out the tray gently, because if there is any water
inside, the water surface may ripple and it may spill out.
• When carrying, hold the base of the humidifying tray.
1. Attach the humidifying tray and humidifying
lter unit.
1
Attach the humidifying lter unit to the tray.
Fit axle into groove in humidifying tray
Axle
Groove
Humidifying lter
(orange)
2
Fully push in the humidifying tray to the main unit.
• If the humidifying lter unit is not correctly attached to
the humidifying tray, the humidifying tray cannot be
attached to the main unit.
Attention
After installing the humidifying tray to the main unit, do not forcibly
rotate the humidifying lter unit. Malfunction may result.
2. Put the water tank in.
►
Page 13
WARNI NG
Before cleaning and maintenance work, be sure to unplug
the unit. (An electric shock or injury may result)
Maintenance
Humidifying Tray
Wash/Rinse
About every 3 days or when odour or dirt becomes
an issue
Clean with water.
• Use a soft cloth or brush to clean hard-to-reach places.
• For areas on the tray with water scales, clean with a soft
cloth or brush soaked in lukewarm or room temperature
water in which citric acid has been dissolved, and then
rinse with water.
• Be careful not to immerse the silver ion cartridge in
lukewarm or room temperature water in which citric acid
or baking soda has been dissolved. Doing so will result
in loss of the capacity for slime-resistance.
• Citric acid may be purchased at a pharmacy, drug store
or super market.
• Depending on water quality and the usage environment,
water in the humidifying tray may become discoloured
due to water scales etc. In such cases, clean the tray in
accordance with the above.
About oat and silver ion cartridge
• Do not remove the oat or silver ion cartridge.
• If the oat is removed, the Humidifying operation cannot
be run.
If the silver ion cartridge is removed, loss of the capacity
for slime-resistance will result.
Silver ion
cartridge
Float
If the oat detaches from the tray
Float
Humidifying tray
Protrusion
on oat
Protrusion
on tray
1
Place the oat protrusion
onto the tray protrusion
2
Insert the axle on the oat
protrusion side into the hole of
the tray
3
Insert the axle into the hole of
the tray
Protrusion on tray
Sectional view
Float
• Check the smooth movement of the
oat after the attachment.
• If the oat rises to the water surface
when the tray is lled with water, it
has been attached correctly.
