IM 1285-4 • MICROTECH III 24 www.DaikinApplied.com
Figure 28 continued: Code Update SIL
Page 2 of 9

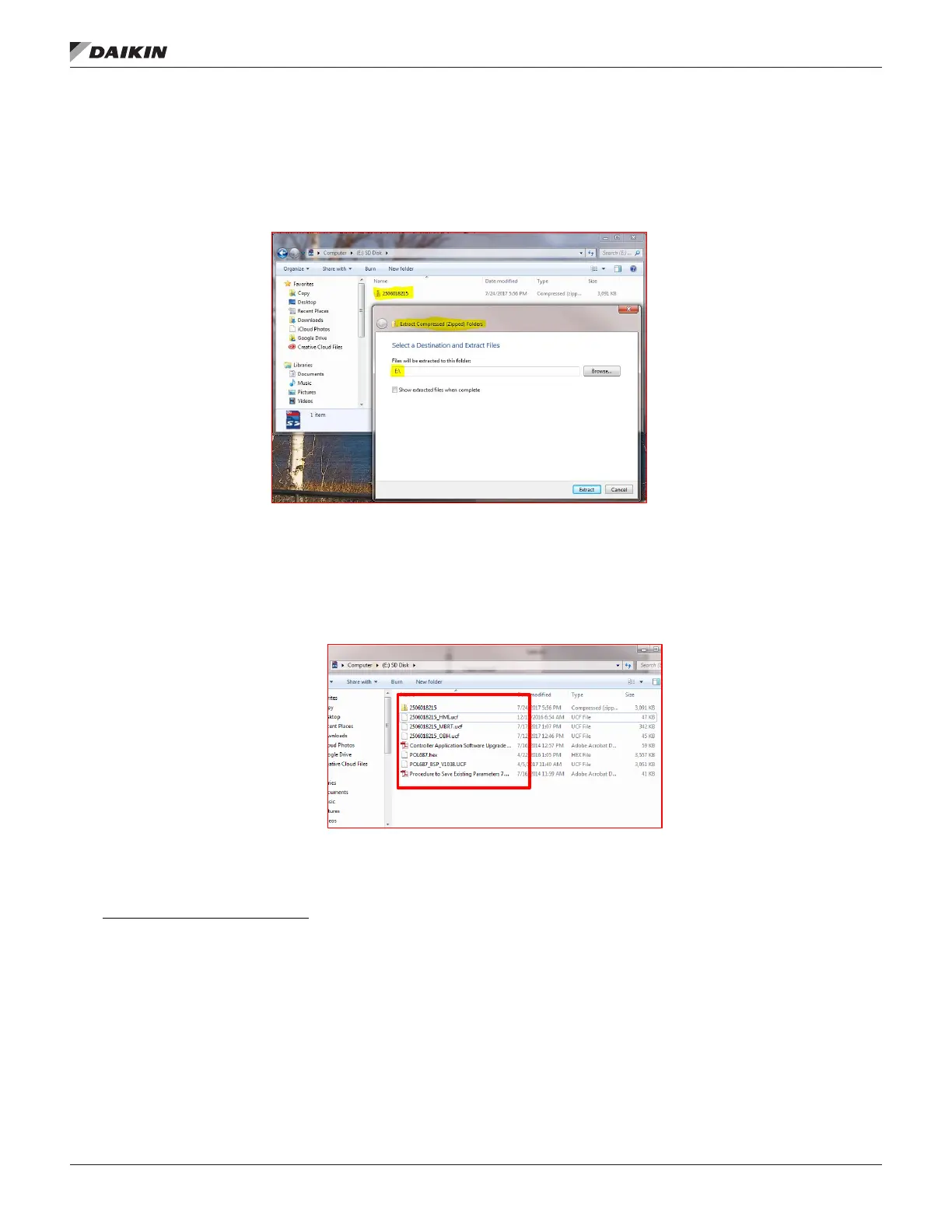

4. Drag the zip file to the freshly formatted SD card and extract it to the root directory of the SD card. See picture
below as an example of where the zip file resides on the SD card (E:\) directory.
Note: Every computer will have a different drive letter designation for the SD card. Root directory represents
the first location that appears when opening the SD card since the Microtech III controller cannot see files
from any folders.
5. Once all the files are extracted there will be a total of 8-9 files appearing on the SD card. Total files counts can
change with new software revisions. The list below show critical files needed for a software download.
(omitted after 513 and 214 codes)
Complete list of files including all critical ones shown below
6. This completes preparing the SD card for the download process and should be now taken to the Microtech
controller.
Saving Parameters to an SD Card
Note: DO NOT save parameters if the controller experienced a glitch in its operation and skip to the “Download Software to the Controller”
section.
1. Enter the level 2 password.
2. From the Main Menu, set the Control Mode to Off.
3. Insert the SD memory card into the controller’s memory card slot. The label on the card should be facing to the
rear, toward the controller.
To Next Page
