Daikin MicroTech III Installation And Operation Manual

IM 1005-3 • MICROTECH III REMOTE USER INTERFACE 4 www.DaikinApplied.com

Reference Documents
Daikin Applied IOM 1202
Pathnder Chiller
Model AWS Installation,
Operation, and
Maintenance Manual
www.DaikinApplied.
com
Daikin Applied IOM 1206
Trailblazer Chiller
Model AGZ
Installation,Operation
and Maintenance
Manual
www.DaikinApplied.
com
Daikin Applied IOM 1242
Pathnder Model AWV
Chiller Installation,
Operation, and
Maintenance Manual
www.DaikinApplied.
com
Daikin Applied OM 920
MicroTech III
unit controller for
Commercial Rooftop,
Applied Rooftop, and
Self-Contained Systems
Operations Manual
www.DaikinApplied.
com
Features
• Push-and-roll navigation wheel with an 8-line by
30-character display format
• Operating conditions, system alarms, control parameters
and schedules are monitored
• RS-485 or KNX interface for local or remote installation
• Power from controller, no additional power supply
necessary
• Supports panel mounting and wall mounting
Component Data
General
Figure 1 shows the details of the remote user
interface hardware design.
The overall physical layout includes:
• 5.7 x 3.8 x 1 in (144 x 96 x 26 mm) size
• 9.1 oz (256.7 g) weight, excluding packaging
• Plastic housing
Power
• Supplied by the MicroTech III unit controller for direct
connection
• Separate 24V DAC power supply, optional for daisy chain
connections, Max 85 mA
NOTE: Contact either the Daikin Applied Air
Technical Response Center at 844-521-3928
(techresponseaah@daikinapplied.com) or the
Chiller Technical Response Center at 540-248-9239
(techresponse@daikinapplied.com) if a separate
power supply is desired.
Display
• LCD type FSTN
• Resolution dot-matrix 96 x 208
• Backlight blue or white, user selectable
Environmental Conditions
Operation EC 721-3-3
Temperature -40...158°F (-40...+70°C)
Restriction LCD -4...140°F (-20…+60°C)
Restriction Process-Bus -13...158°F (-25….+70°C)
Humidity < 90% RH (no condensation)
Air pressure Min. 10.2 psi (700 hPa),
corresponding to max. 9843 ft
(3000 m) above sea level

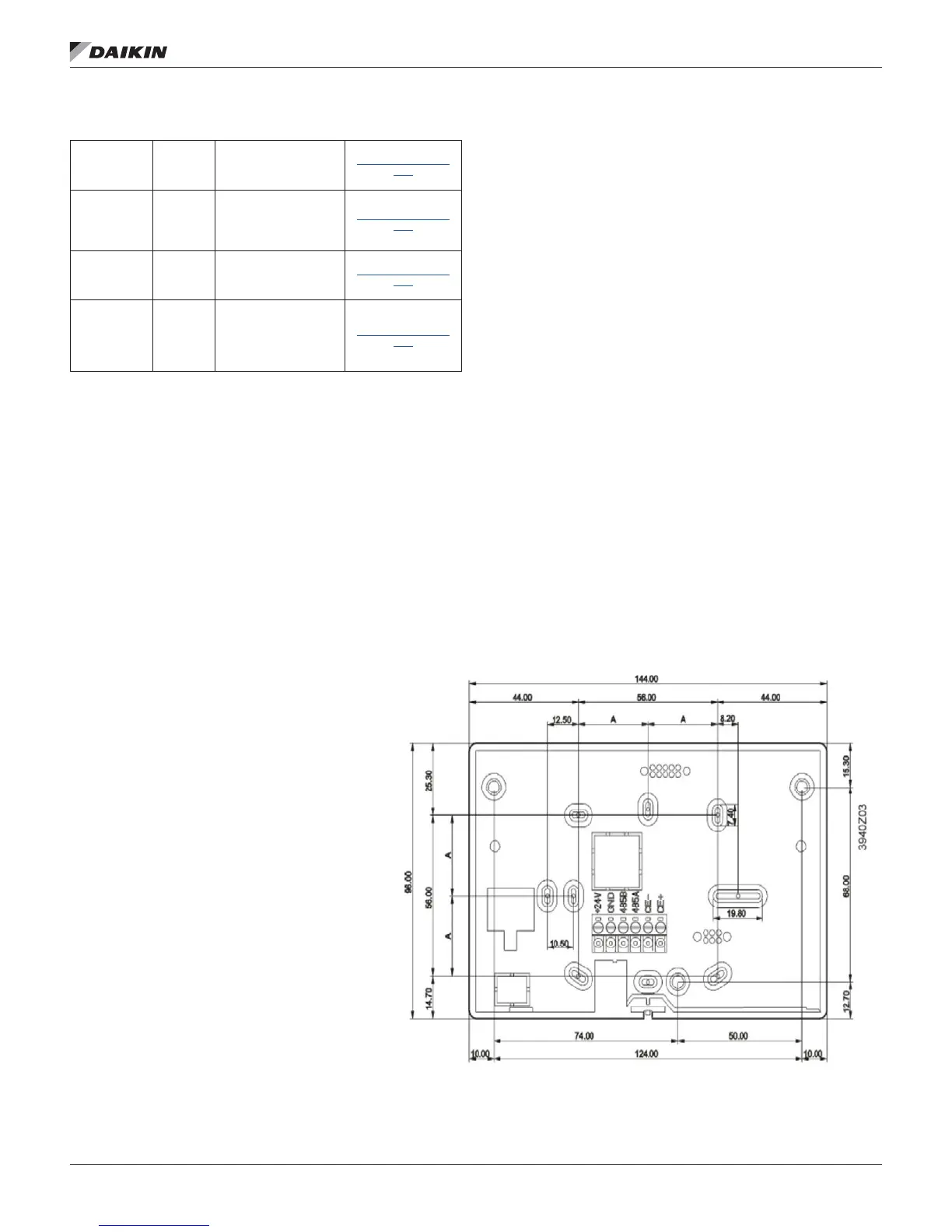

Figure 1: Physical Dimensions
