www.DaikinApplied.com 9 IM 1005-3 • MICROTECH III REMOTE USER INTERFACE

Using the Remote User Interface
Hardware Features
The remote user interface keypad/display consists of an 8-line
by 30 character display, a “push and roll” navigation wheel, and
three buttons: Alarm, Menu, and Back (Figure 7).
Turn the navigation wheel clockwise (right) or
counterclockwise (left) to navigate between lines on a
screen and also to increase and decrease changeable
values when editing. Press down on the wheel to use it
as an Enter button.
Press the Back button to display the previous page.
Press the Home button to return to the main screen from
the current page.
Press the Alarm button to view the Alarm Lists menu.
Keypad/Display Features
The rst line on each page includes the page title and the line
number to which the cursor is currently “pointing.” The line
numbers are X/Y to indicate line number X of a total of Y lines
for that page. The left most position of the title line includes an
“up” arrow to indicate there are pages “above” the currently
displayed items, a “down” arrow to indicate there are pages
“below” the currently displayed items or an “up/down” arrow
to indicate there are pages “above and below” the currently
displayed page. Each line on a page can contain status-only
information or include changeable data elds. When a line
contains status-only information and the cursor is on that line,
all but the value eld of that line is highlighted meaning the text
is white with a black box around it. When the line contains a
changeable value and the cursor is at that line, the entire line is
highlighted.
Each line on a page may also be dened as a “jump” line,
meaning pushing the navigation wheel will cause a “jump” to a
new page. An arrow is displayed to the far right of the line to
indicate it is a “jump” line and the entire line is highlighted when
the cursor is on that line.
NOTE: Only menus and items that are applicable to the
specic unit conguration are displayed.

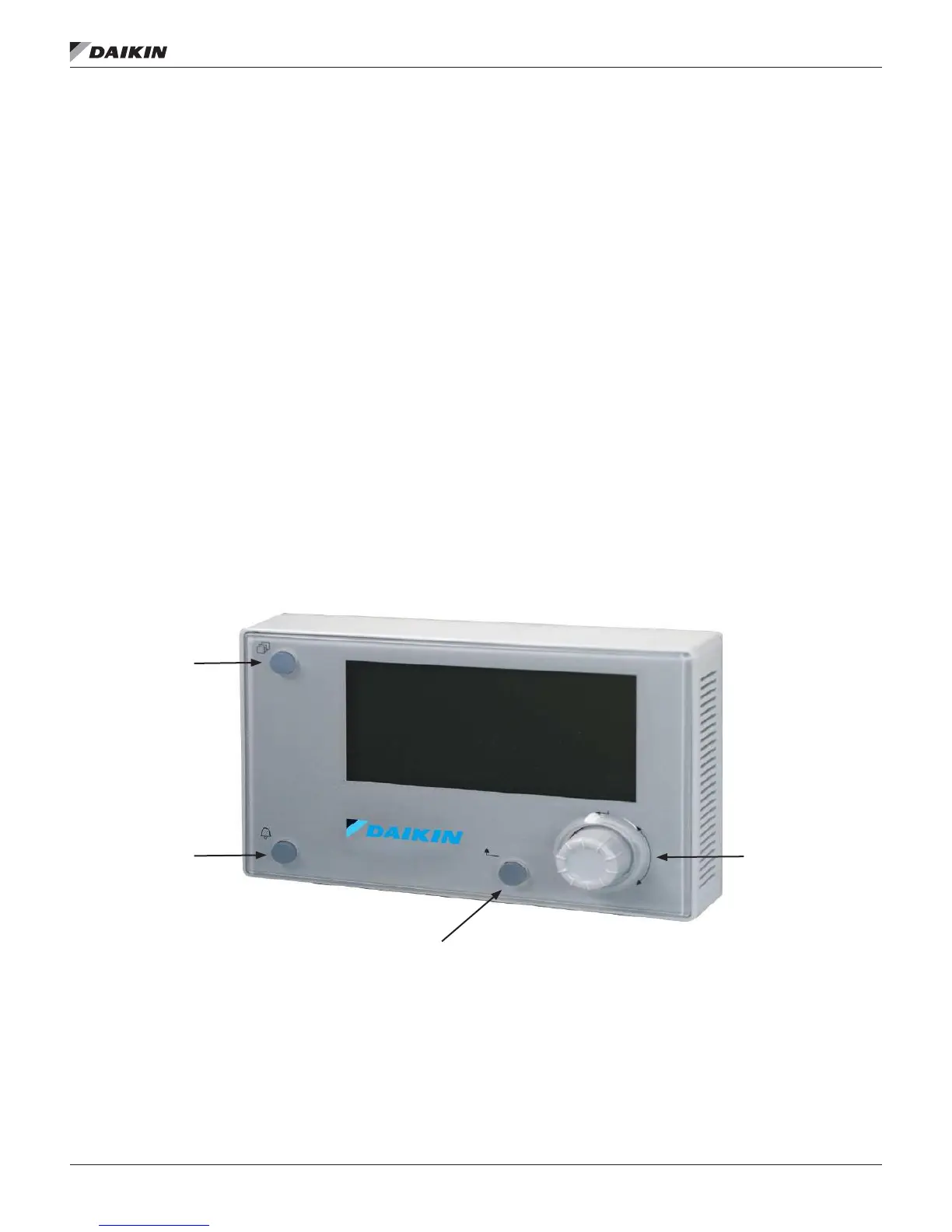

Figure 7: Remote User Interface Main Features
Home Button
Back Button
Navigation
Wheel
Alarm Button
