Daikin Modular T User Manual

7
Electric post/pre heating coil with
gaskets already inserted
coupling not provided
(provide for sealing gaskets)
see g. 1 for the correct lenght and diameter
unit spigot with gasket already inserted
5

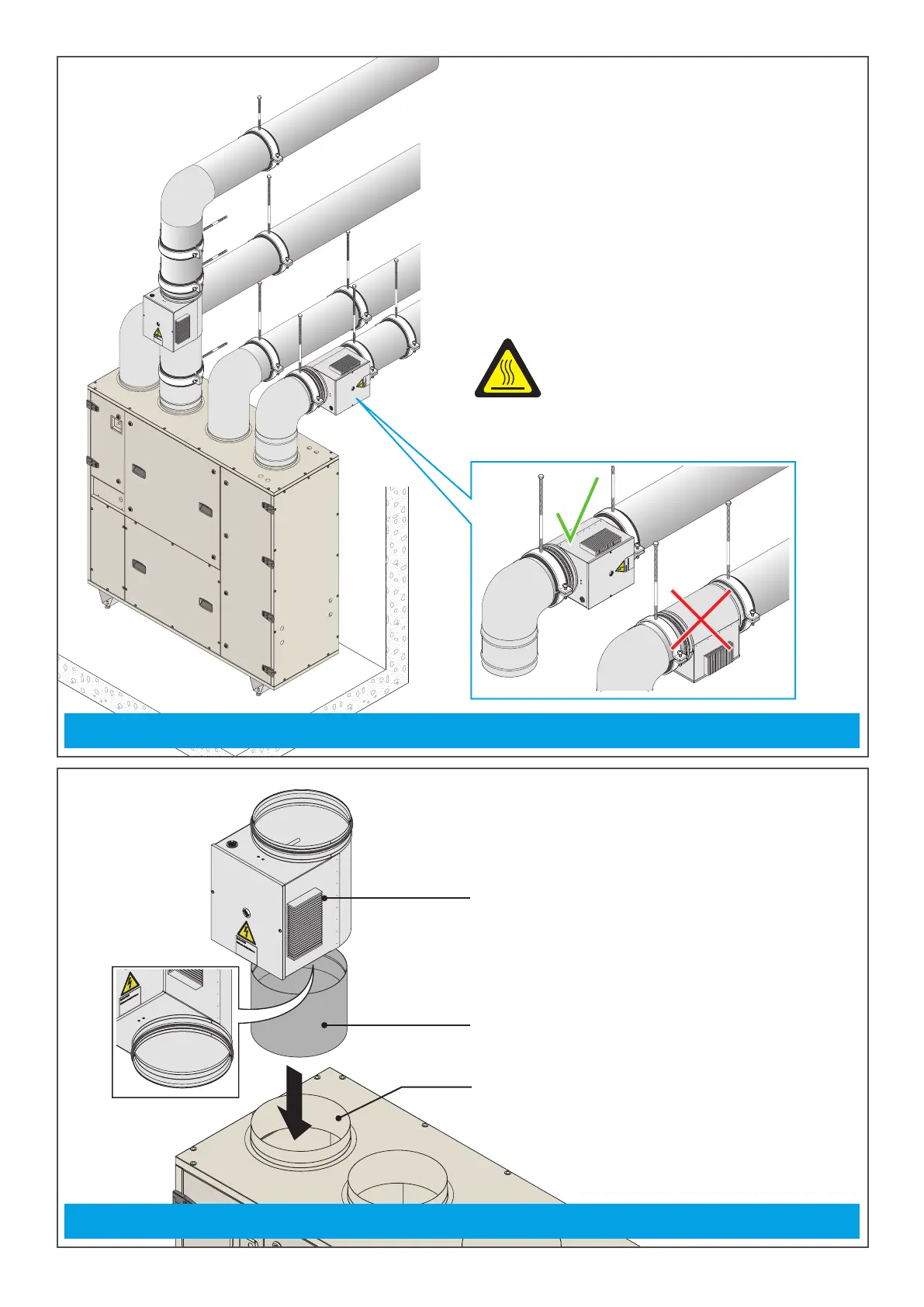

Example of installation of the electric post/pre heating both horizontally and vertically
6
Installation of electric pre/post heating
Electric post/pre heating coil can be positioned
both horizontally and vertically.
The ducts and the electric coils must be
permanently xed to a xed structure (for
example a wall or a ceiling) using brackets (not
supplied).
Electric post/pre heating coil should be
installed in such a way that it is accessible for
maintenance or any other operation.
The electric post/pre heating coil should
not be facing down.
Provide thermal insulation (not
supplied) around the electric coils
because they reach high temperatures
(<60 °C).
