Daikin Modular T User Manual

3

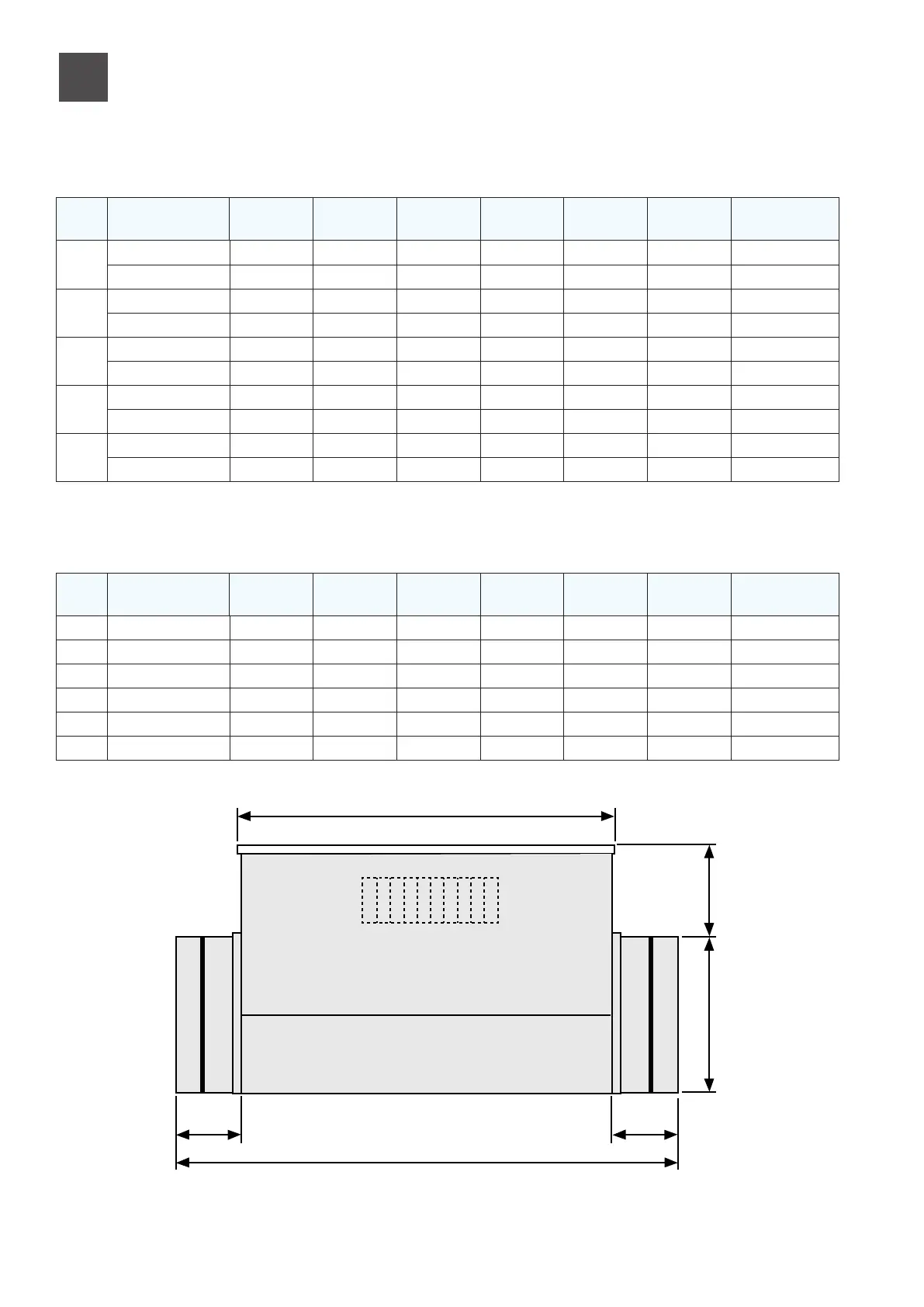

Technical data
2
Modular T PRO
Size Material name
Load
kW
A
mm
B
mm
C
mm
D
mm
Weight
kg
Supply
voltage
03
ATD03HEFAU 12 518 416 71 250 8,6 3-phase; 400V
ATD03HESAU 4.5 389 290 71 250 5.8 3-phase; 400V
04
ATD04HEFAU 15 651 548 71 315 15.4 3-phase; 400V
ATD04HESAU 6 393 291 71 315 8.7 3-phase; 400V
05
ATD05HEFAU 18 651 548 72 355 17.4 3-phase; 400V
ATD05HESAU 6 389 287 72 355 9.4 3-phase; 400V
06
ATD06HEFAU 21 774 672 71 400 22.3 3-phase; 400V
ATD06HESAU 7.2 389 286 71 400 10.5 3-phase; 400V
07
ATD07HEFAU 24 902 800 71 500 29.4 3-phase; 400V
ATD07HESAU 8.4 518 416 71 500 15.1 3-phase; 400V
Modular T SMART
Size Material name
Load
kW
A
mm
B
mm
C
mm
D
mm
Weight
kg
Supply
voltage
03 ATD03HEFBU 12 518 416 71 250 8,4 3-phase; 400V
04 ATD04HEFBU 15 651 548 71 315 15.2 3-phase; 400V
05 ATD05HEFBU 18 651 548 72 355 17.2 3-phase; 400V
06 ATD06HEFBU 21 774 672 71 400 22 3-phase; 400V
07 ATD07HEFBU 24 902 800 71 500 29.2 3-phase ; 400V
389 291 71 315 7,2 1-phase ; 230V
B
C
D
A
~50
~50
