Daikin Multi+ R32 Split Series - To Install the Outdoor Unit; To Provide Drainage

6 | Unit installation
Installer reference guide
29
4MWXM-A9
R32 Split series
4P708645-1 – 2022.09
20 mm
(mm)
353
600
240
240
a
a 100mm above expected level of snow

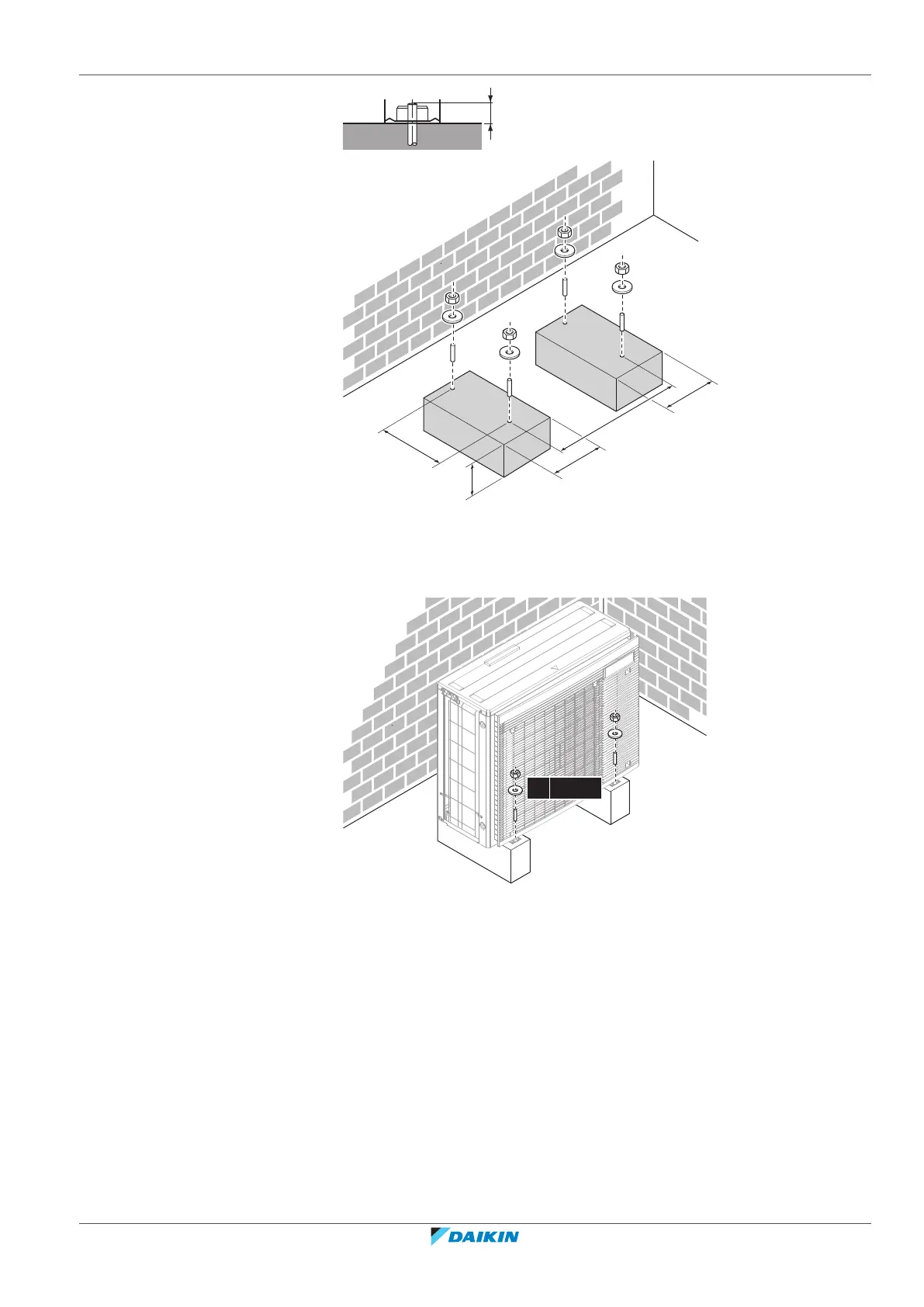

6.3.4 To install the outdoor unit
4× M8/M10
6.3.5 To provide drainage
▪ Make sure that condensation water can be evacuated properly.
▪ Install the unit on a base to make sure that there is proper drainage in order to
avoid ice accumulation.
▪ Prepare a water drainage channel around the foundation to drain waste water
away from the unit.
▪ Avoid drain water flowing over the footpath, so that it does NOT become slippery
in case of ambient freezing temperatures.
▪ If you install the unit on a frame, install a waterproof plate within 150mm of the
bottom side of the unit in order to prevent water from getting into the unit and
to avoid drain water dripping (see the following figure).
