Si011196 Removal of Sound Blankets
Removal Procedure 11
4. Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.

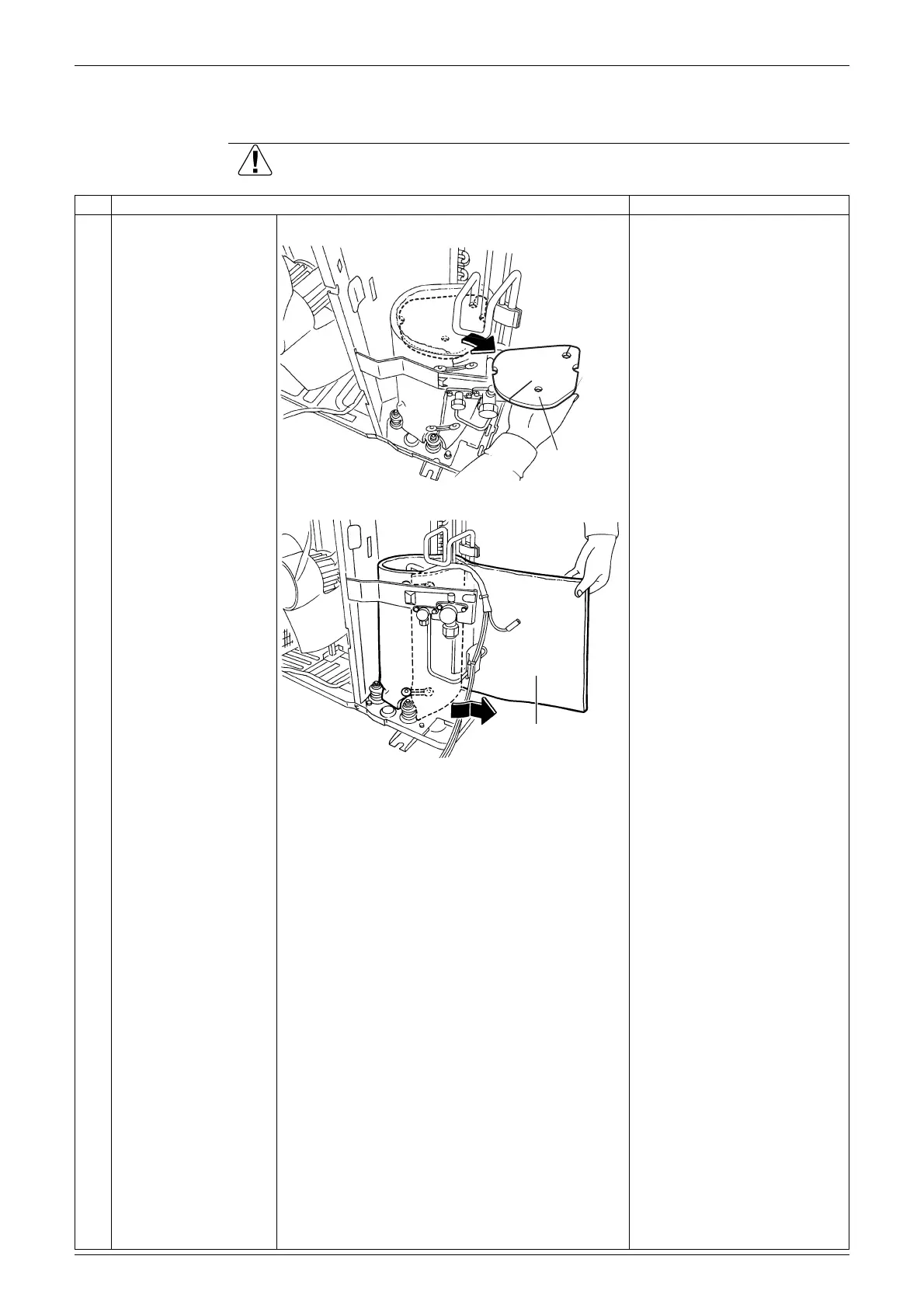

Step Procedure Points
1 Remove the sound
blanket (top).
Preparation
Remove the electrical
component ASSY according
to the "Removal of Electrical
Component ASSY".
Since the piping ports on the
sound blanket are torn
easily, remove the blanket
carefully.
2 Remove the sound
blanket (body).
Sound blanket
(top)
(R16241)
Sound blanket (body)
(R17442)
To Next Page
