Removal of Outer Panels Si011196
2 Removal Procedure
1. Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

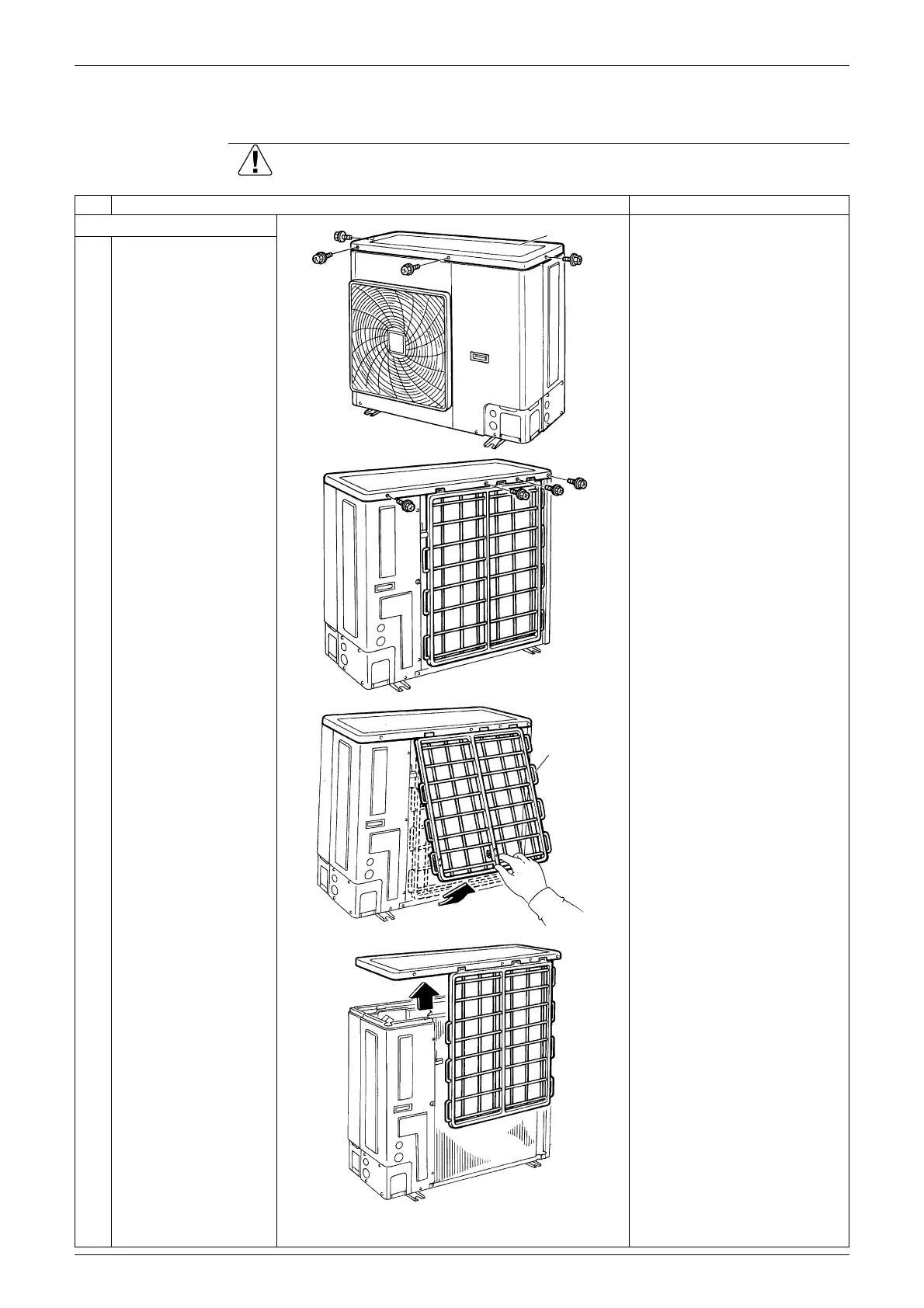

1. Remove the top panel.
1 Remove the 8 screws
of the top panel.
Piping may be slightly
different from the
illustrations.
2 Pull the suction grille to
unfasten the hook.
Take care not to cut your
finger by the fins of the
outdoor heat exchanger.
3 Lift up and remove the
top panel.
Top panel
(R5423)
(R5424)
Suction
grille
(R5425)
(R5426)
