Si011196 Removal of Electrical Component ASSY
Removal Procedure 7
3. Removal of Electrical Component ASSY
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the side panel. Preparation
Remove the top panel, front
panel (1) (2), and piping
cover (front) according to the
"Removal of Outer Panels".

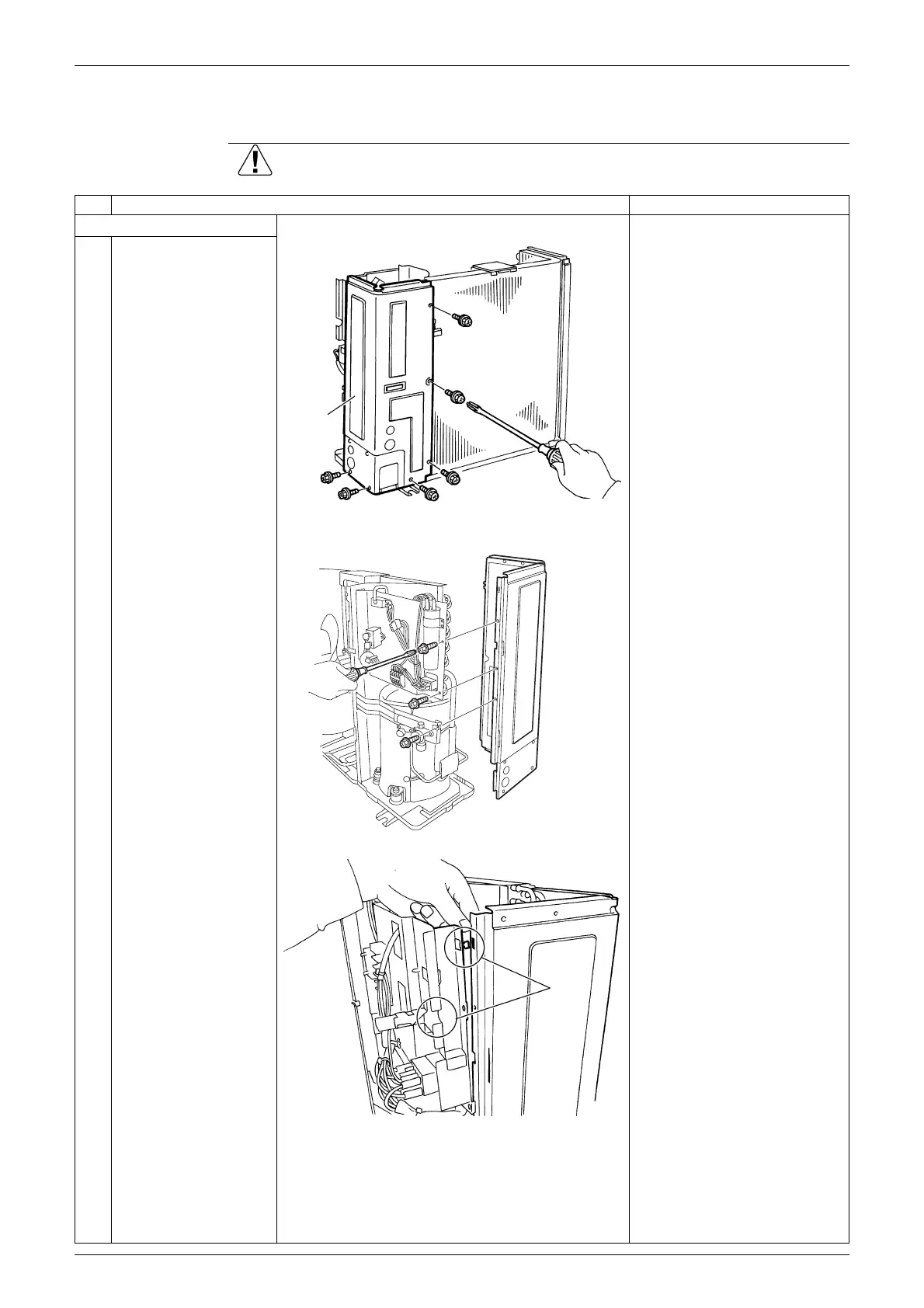

1 Remove the 9 screws
and remove the right
side panel.
Right side
panel
(R15402)
(R16367)
Hook
(R5442)
To Next Page
