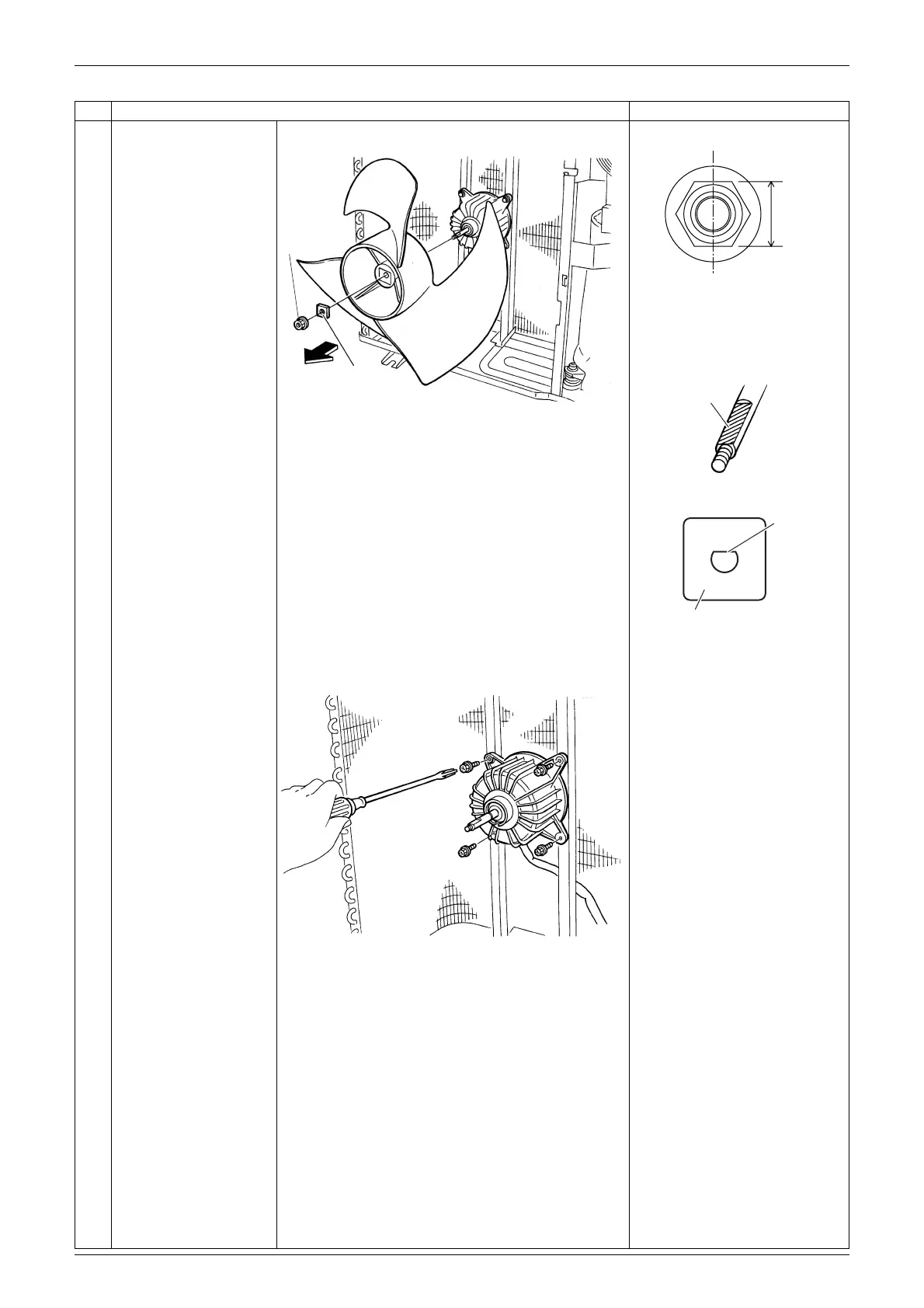

Removal of Outdoor Fan / Fan Motor Si011196
6 Removal Procedure
4 Remove the nut and
remove the outdoor fan.
Nut size: M8
When reassembling, fit the
D-cuts of the lock washer
and the shaft of fan motor.
5 Remove the 4 screws
and remove the fan
motor.
Be sure to remove the lower
screws first. If the upper
screws are removed first, the
fan motor may tilt or fall
because the center of its
gravity is toward the front.
It may cause injuries.
Screw size : M5 × 16
Step Procedure Points
Lock washer
Nut
(R15404)
13 mm
(R17450)
(R12834)
D-cut
D-cut
Lock washer
(R12835)
(R5439)
To Next Page
