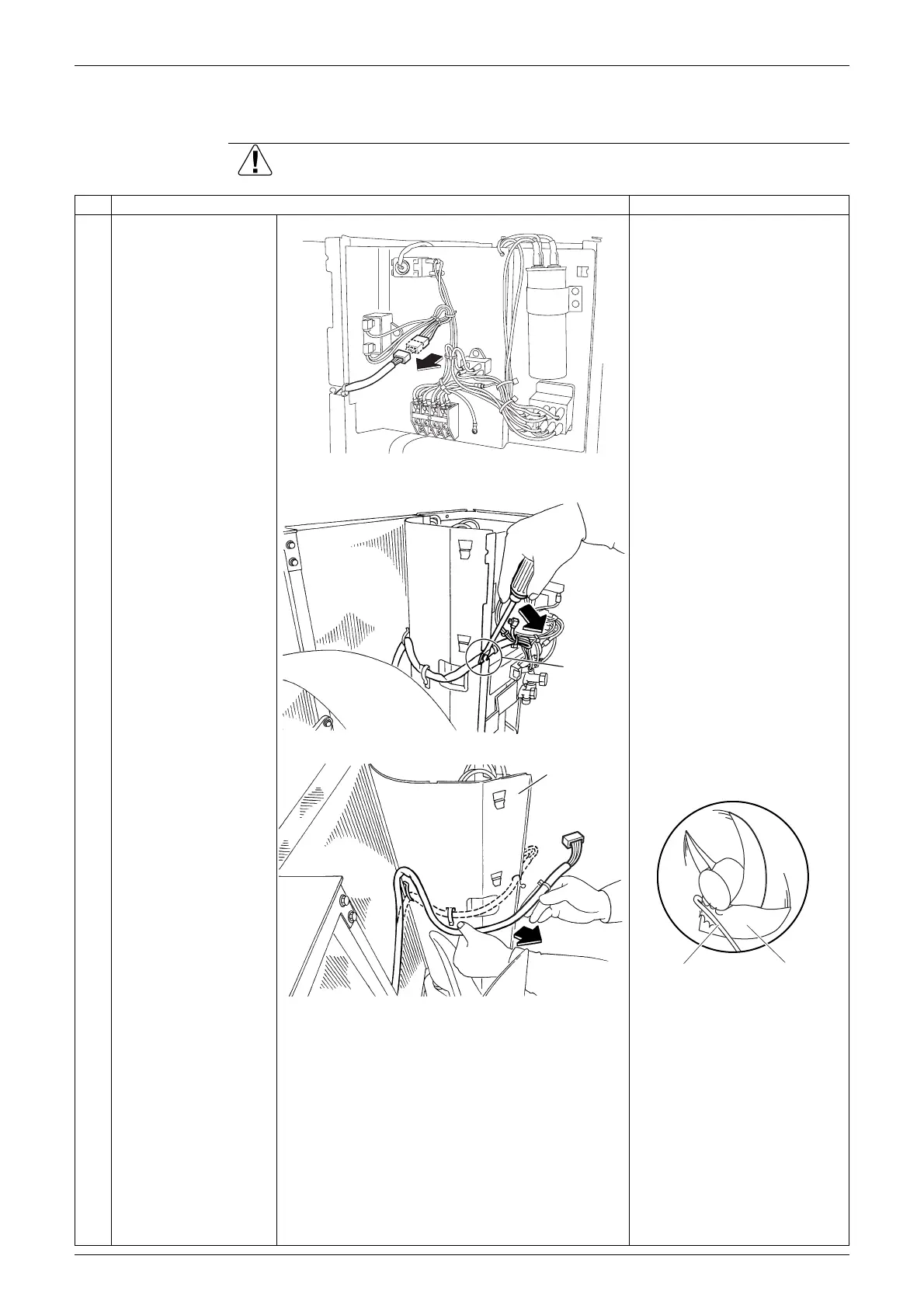

Si011196 Removal of Outdoor Fan / Fan Motor
Removal Procedure 5
2. Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1 Disconnect the relay
connector for the fan
motor.
Preparation
Remove the front panel
according to the "Removal of
Outer Panels".
2 Unfasten the hook with
a flat screwdriver.
Put the fan motor lead wire
through the back of the fan
motor when reassembling so
as not to be entangled with
the outdoor fan.
3 Release the fan motor
lead wire from the
partition plate.
(R16366)
Hook
(R5436)
(R3249)
Lead wire Outdoor fan
(R12812)
Partition plate
To Next Page
