Daikin R24LV2S User Manual

Removal of Electrical Component ASSY Si011196
8 Removal Procedure

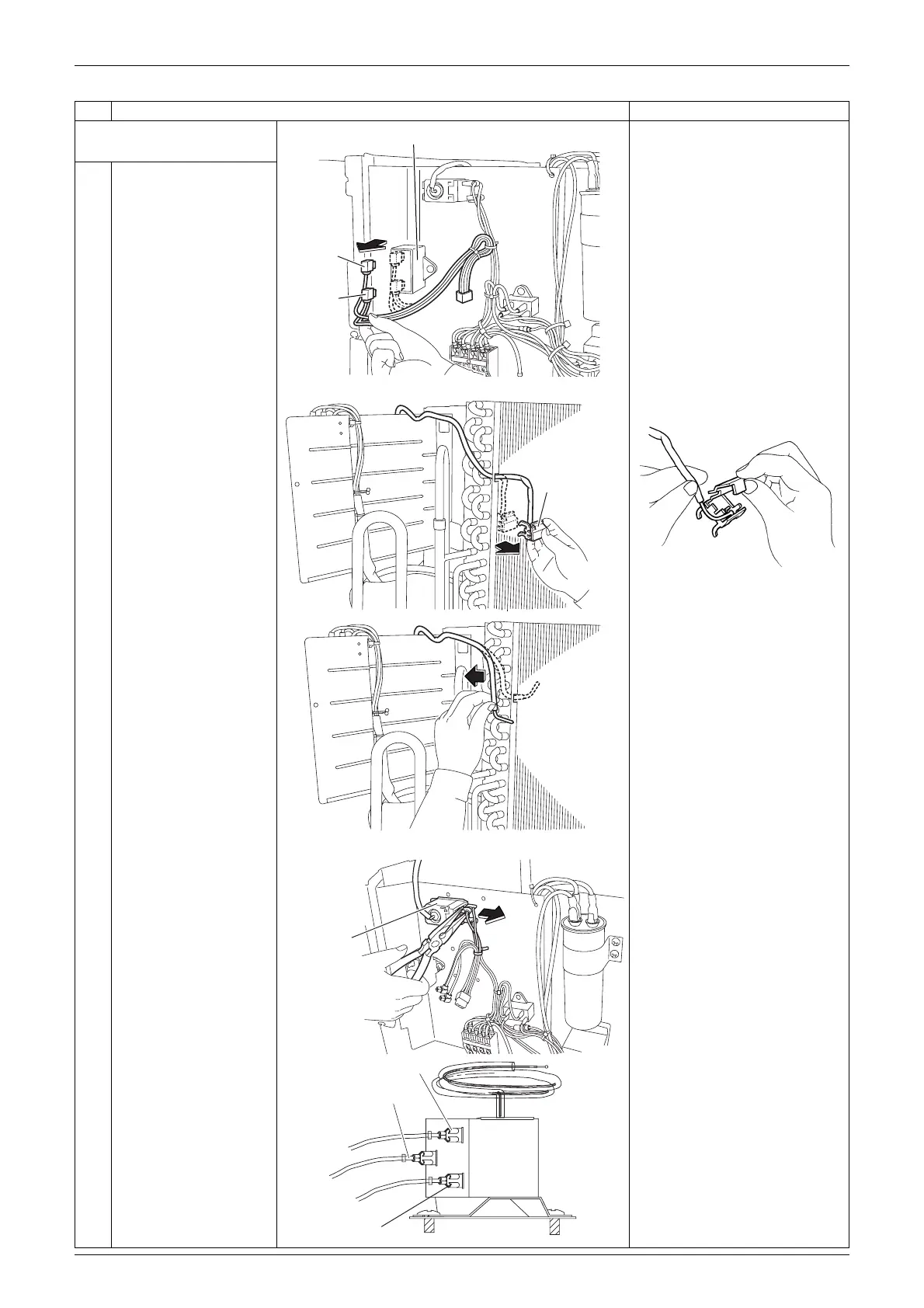

2. Remove the electrical
component ASSY.
1 Disconnect the 2
terminals from the fan
motor capacitor (C2R).
2 Detach the outdoor
temperature sensor.

Remove the sensor fixing
plate.
3 Disconnect the
terminals of the outdoor
temperature thermostat
(S1T).
Step Procedure Points
(R16368)
White
Red
Fan motor capacitor (C2R)
(R12813)
Outdoor
temperature
sensor
(R12814)
(R17451)
(R16369)
Outdoor
temperature
thermostat
(S1T)
to X1A: orange
to X1A: black
S1T
(R15472)
L
H
C
to K1M(4): white
