Si011196 Removal of Electrical Component ASSY
Removal Procedure 9

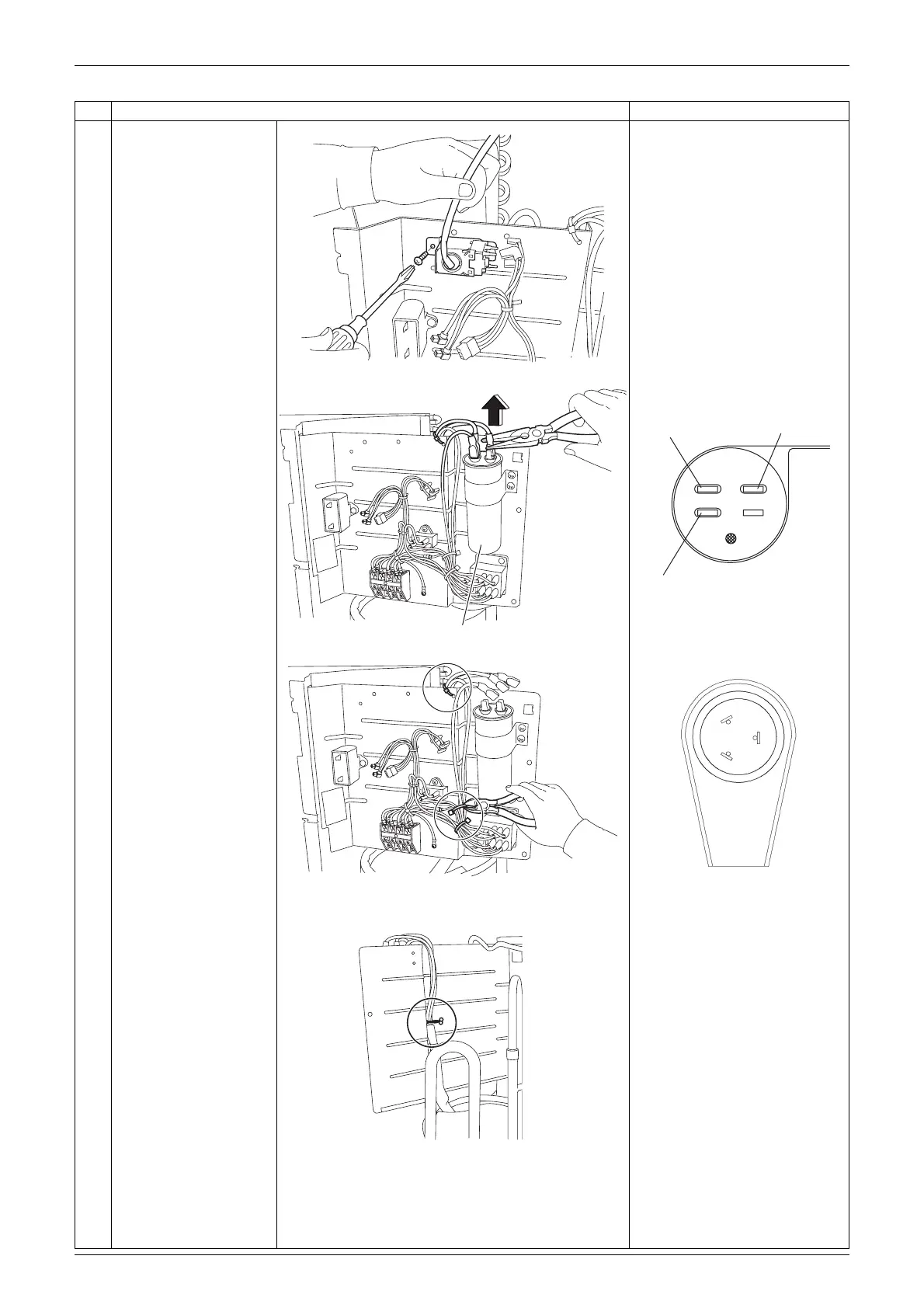

4 Remove the left screw
and remove the outdoor
temperature
thermostat.

If it is difficult to remove the
outdoor temperature
thermostat, loosen the right
screw.
5 Disconnect the
terminals from the
compressor capacitor
(C1R).

Compressor capacitor (C1R)
6 Cut the 3 clamps.

Compressor lead wire
S: yellow
C: blue
R: red
7 Cut the clamp on the
rear side.
Step Procedure Points
(R15486)
Compressor capacitor
(R16370)
to magnetic contactor
K1M (6): red
(R17467)
to compressor
(R terminal): red
to compressor
(S terminal): yellow
(R16371)
(R12819)
S
R
C
(R17191)
