Dimensional and Weight Data
Dimensional and Weight Data

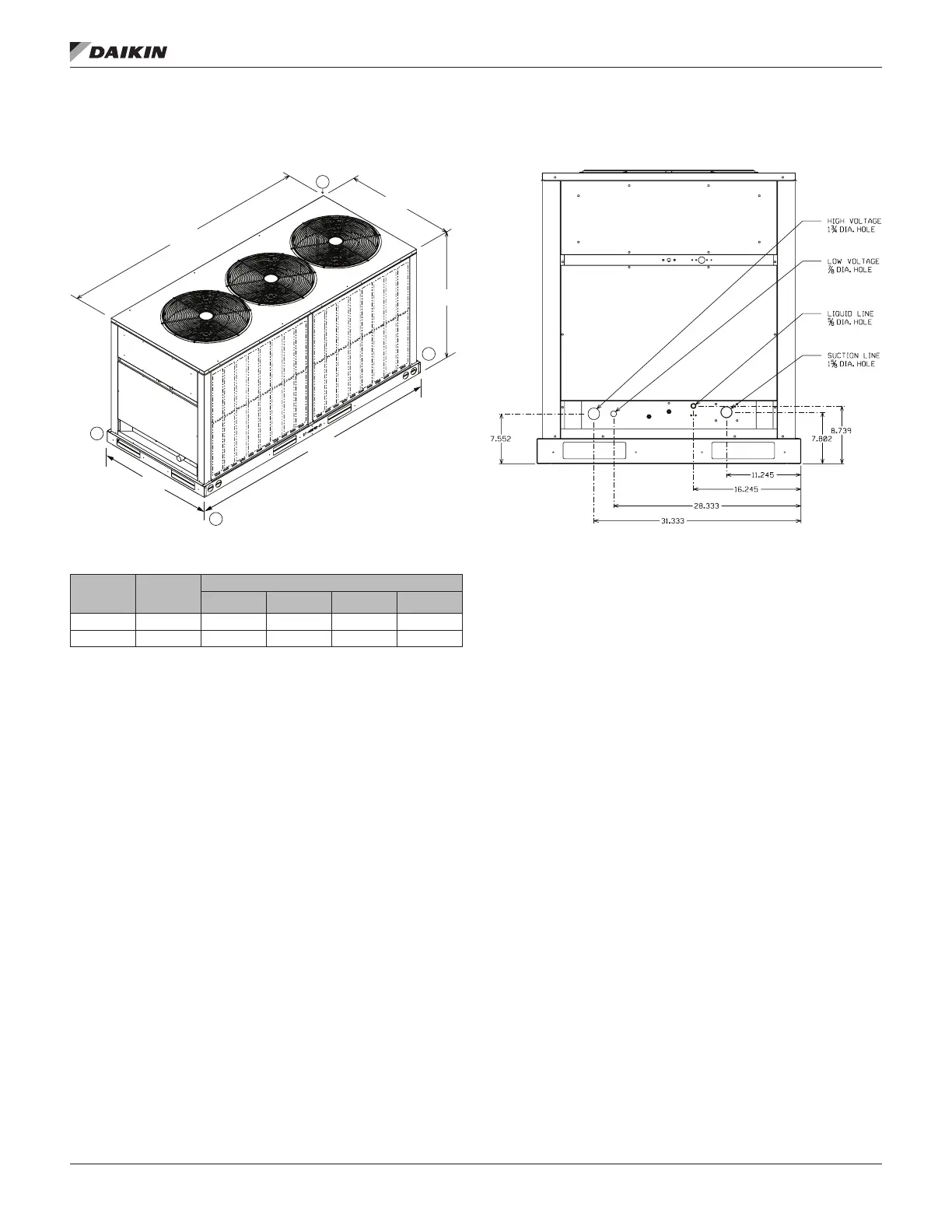

Figure 5: RCS 12F Dimensions and Weights
Table 3: RCS 12F Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg
A B C D
12F 650 [293] 160 [72.0] 171 [78.0] 154 [70.0] 165 [75.0]

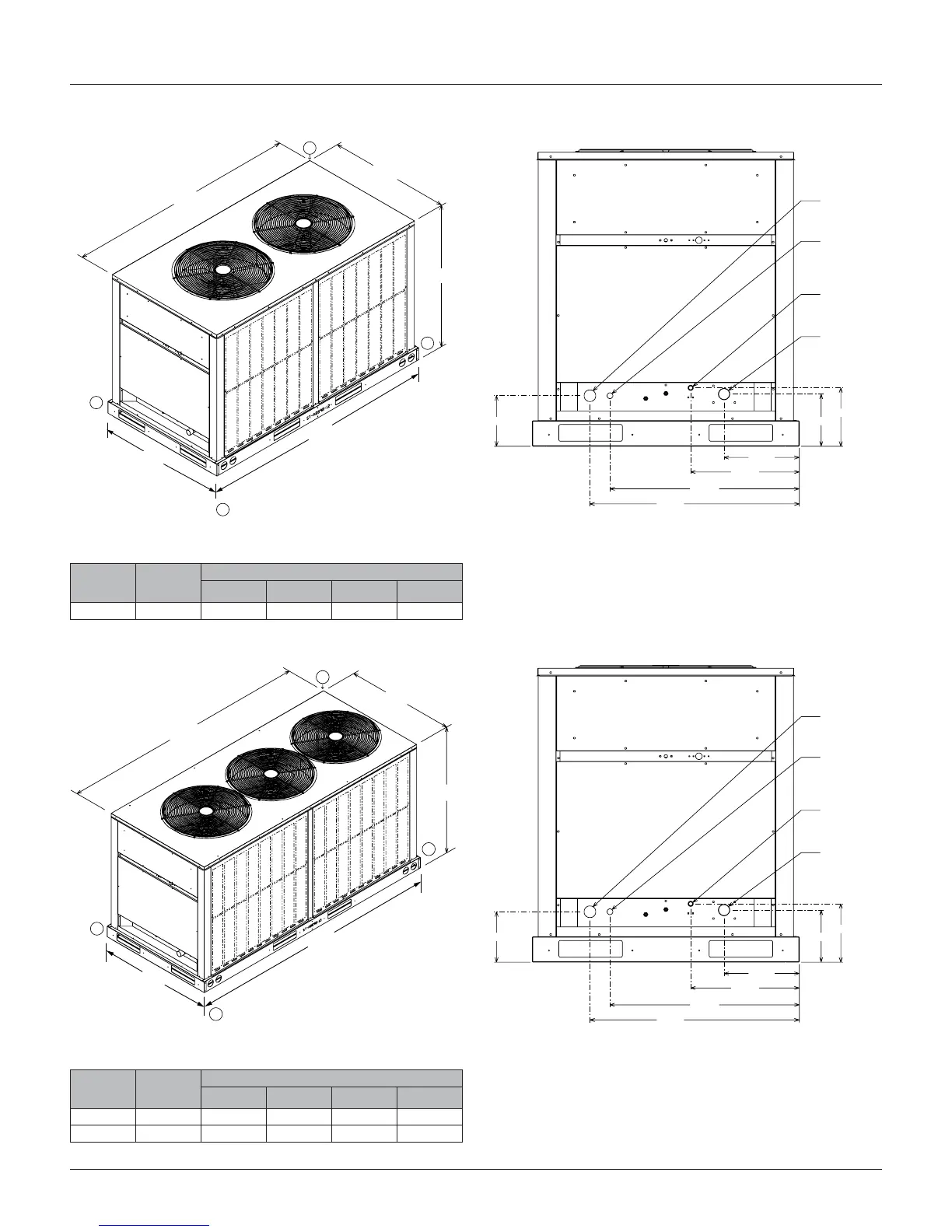

Figure 6: RCS 15F – 20F Dimensions and Weights
Table 4: RCS 15F and 20F Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg]
A B C D
15F 746 [338.0] 183 [83.0] 196 [89.0] 177 [80.0] 189 [86.0]
20F 952 [432.0] 234 [106.0] 251 [114.0] 226 [103.0] 241 [110.0]
B
A
C
D
CONTROL
PANEL ACCESS
39.94
73.88
72.375
44.75
38.375
7.5
31.25
28.25
16.25
11.25
7.875
8.75
Suction Line
1-3/8" Dia. Hole
Liquid Line
5/8" Dia. Hole
Low Voltage
7/8" Dia. Hole
High Voltage
1-3/4" Dia. Hole
A
D
C
B
CONTROL
PANEL ACCESS
88.88
39.94
87.375
38.375
44.75
7.5
31.25
28.25
16.25
11.25
7.875
8.75
Suction Line
1-3/8" Dia. Hole
Liquid Line
5/8" Dia. Hole
Low Voltage
7/8" Dia. Hole
High Voltage
1-3/4" Dia. Hole
Liquid Line
5/8"
Dia. I.D. 15 Ton
7/8"
Dia. I.D. 20 Ton
Suction Line
1-5/8" Dia. Hole
