Daikin RCS 06F - Dimensional and Weight Data

6 IM 962-2
Dimensional and Weight Data
Dimensional and Weight Data

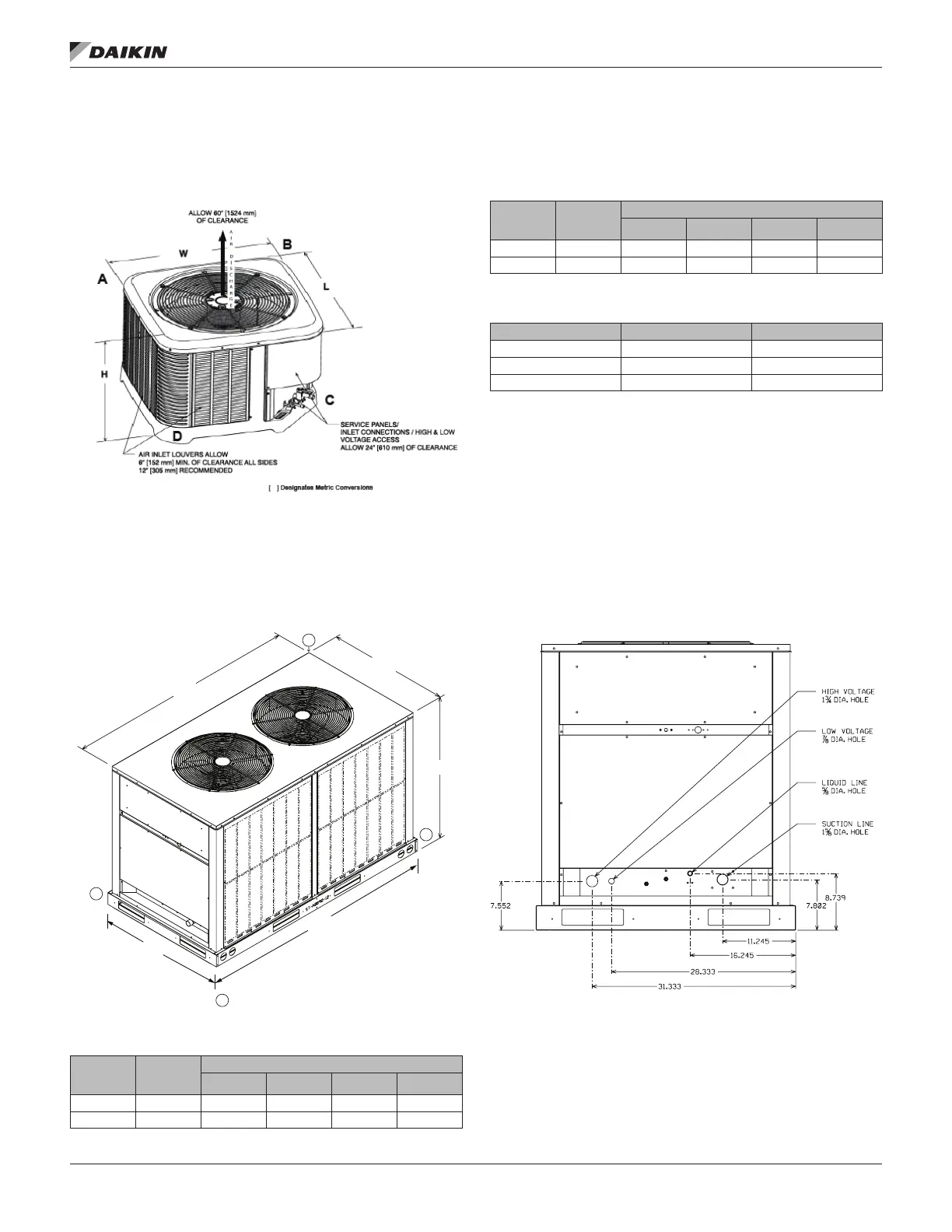

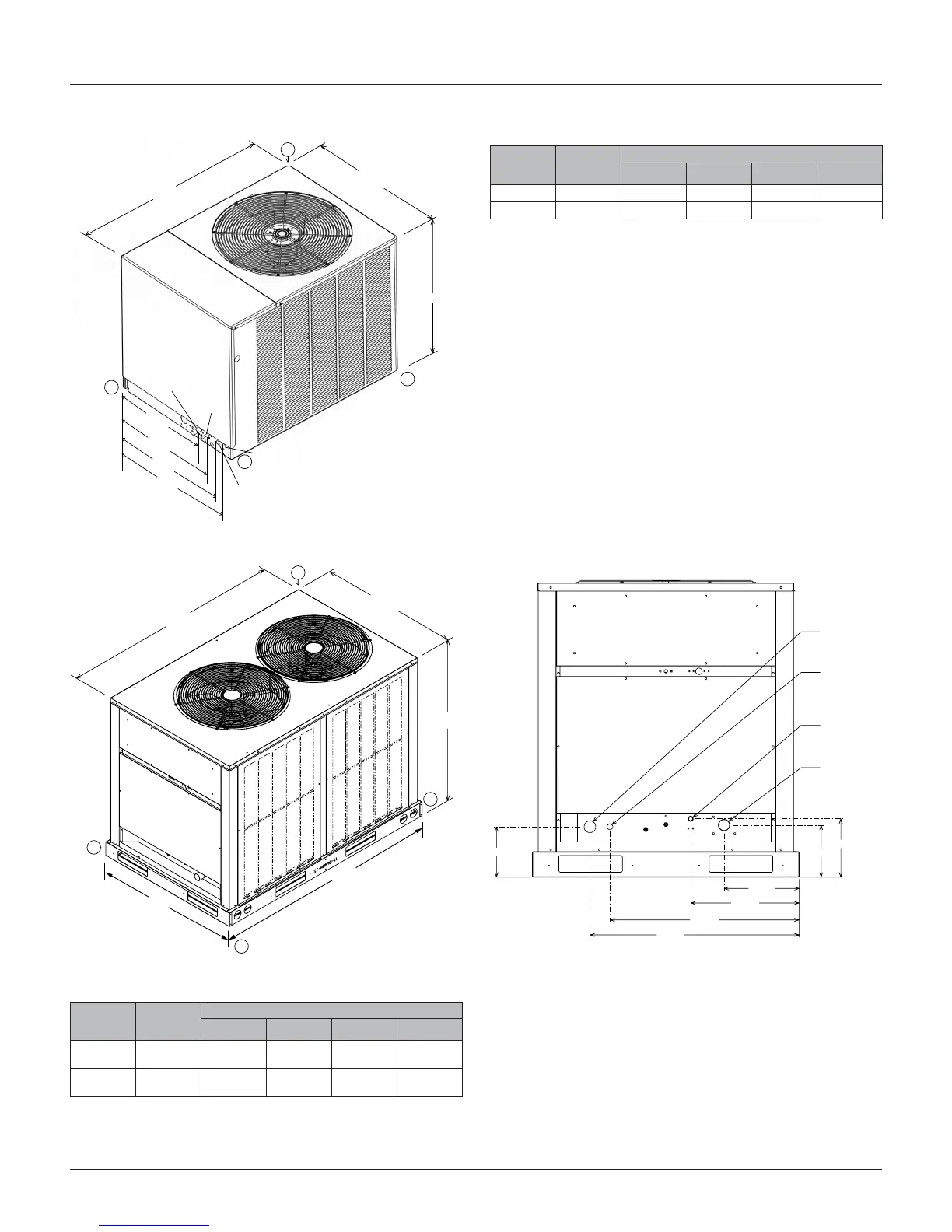

Figure 3: RCS 06F and 07F Dimensions and Weights Table 1: RCS 06F and 07F Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg]
A B C D
06F 291 [132] 50 [22.7] 73 [33.1] 69 [31.3] 99 [44.9]
07F 318 [144] 53 [24.0] 84 [38.1] 71 [32.2] 110 [49.9]
Figure 4: RCS 10F and 11F Dimensions and Weights
Table 2: RCS 10F and 11F Operating Weights
RCS
model
Total
weight
lbs. [kg]
Corner weight lbs. [kg]
A B C D
10F
(Single)
501 [228] 123 [53.9] 132 [60.0] 119 [54.1] 127 [58.0]
11F
(Tandem)
586 [266] 144 [65.3] 154 [69.9] 139 [63.2] 149 [67.6]
31.06
43.00
32.81
CONTROL
PANEL ACCESS
SUCTION
LINE 1
LIQUID
LINE
1/2"
1/8"
HIGH VOLTAGE
3/4"
DIA. HOLE1
LOW VOLTAGE
7/8"
DIA. HOLE
21.69
24.19
26.63
28.44
C
A
D
B
A
B
D
C
CONTROL
PANEL ACCESS
39.94
62.125
44.75
38.375
60.625
7.5
31.25
28.25
16.25
11.25
7.875
8.75
Suction Line
1-3/8" Dia. Hole
Liquid Line
5/8" Dia. Hole
Low Voltage
7/8" Dia. Hole
High Voltage
1-3/4" Dia. Hole
