IM 1287-6 • REBEL APPLIED ROOFTOP 30 www.DaikinApplied.com


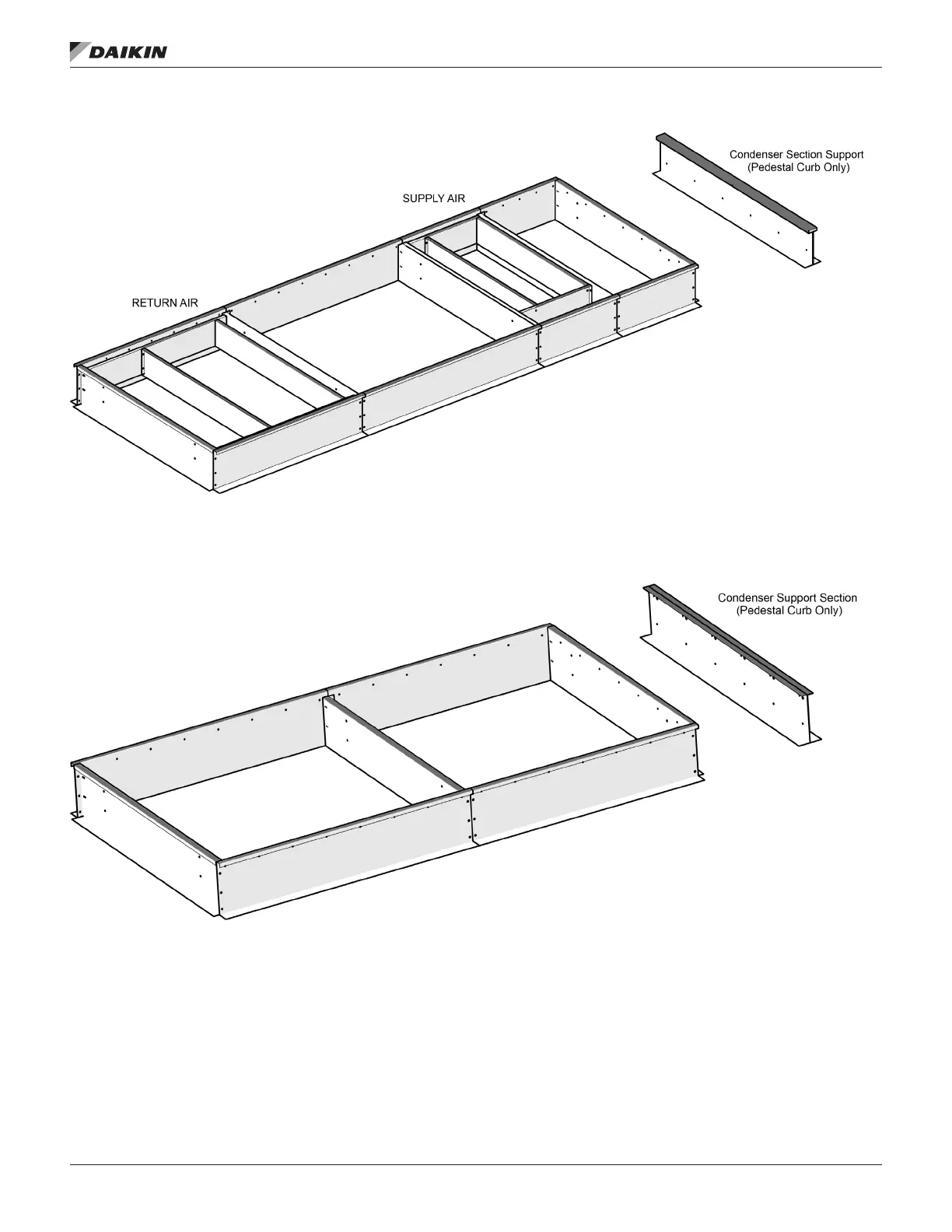

Figure 40: Typical Bottom-Ducted Roof Curb Assembly
Figure 41: Typical Plenum Curb Assembly
