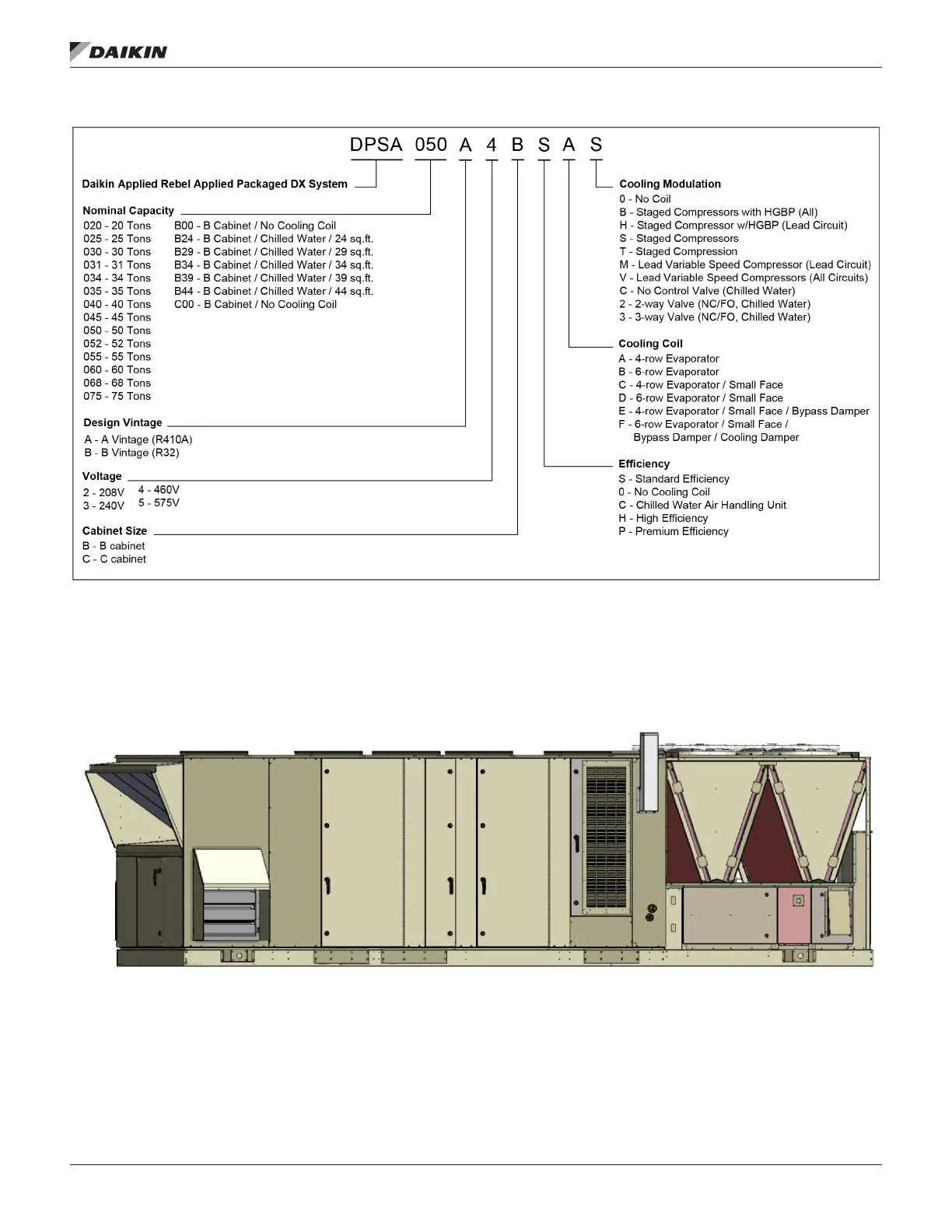

Figure 1: Nomenclature
Unit Description
Figure 2 shows a typical DPSA unit. Figure 3 shows a typical DPSA unit with the locations of the major components. These gures
are for general information only. See the project’s certied submittals for actual specic dimensions and locations.
Figure 2: DPSA Unit, Typical
