A unit can be ordered with factory installed humidication
systems. Figure 141 shows the humidier section as it comes
from the factory. All additional piping, valve placement, and
controls are to be eld installed. It is the responsibility of the
installer to ensure that these are safely sized, congured and
installed.

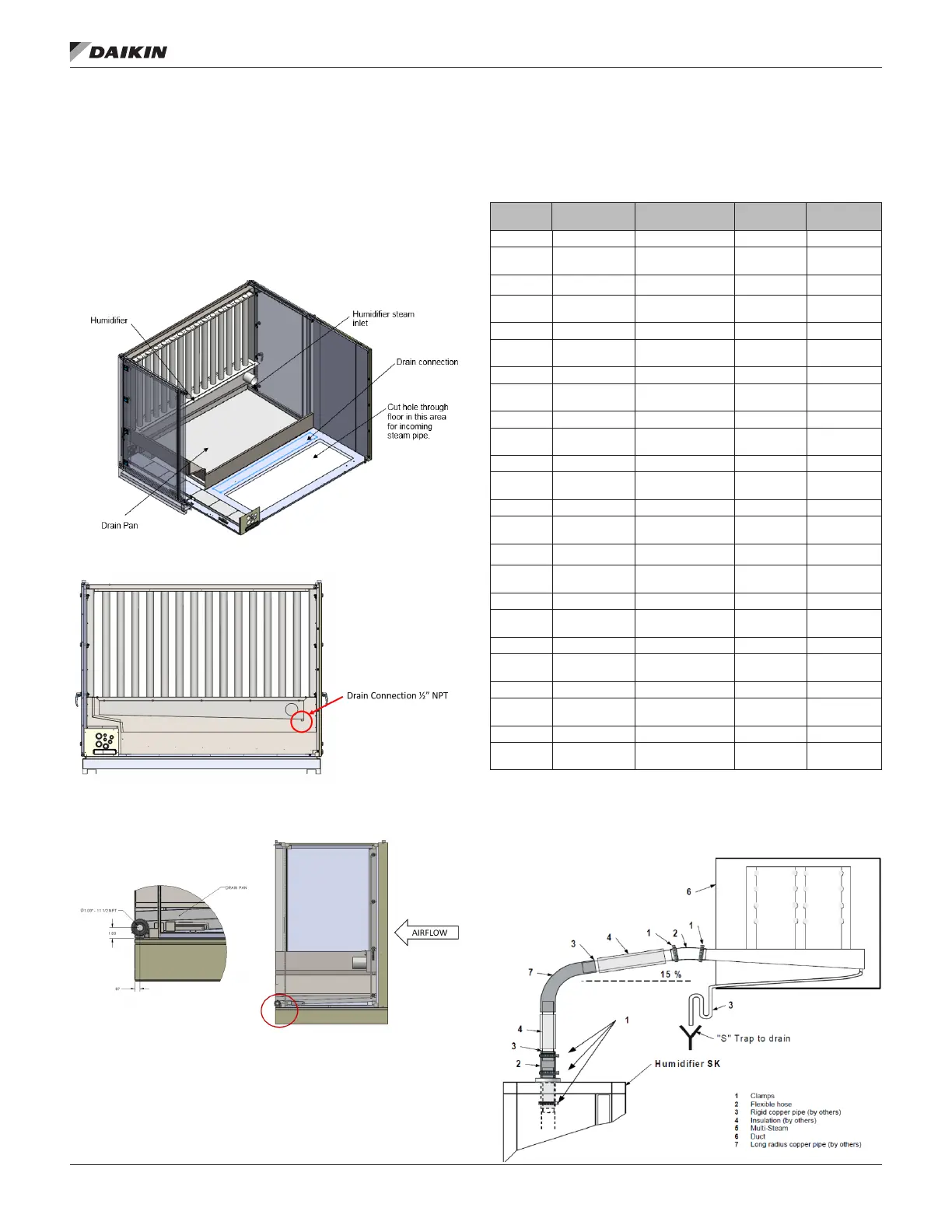

Figure 141: DPSA Humidier
Figure 142: Humidier Grid Drain Pan Connection
Figure 143: Humidier Drain Pan Hole Location
Steam Supply Line Connection
Table 12 shows pipe connection sizes.
Table 12: Humidier Connections Sizes
Number
of tubes
Tube Steam
Steam inlet
size
Drain outlet
size
4 Insulated Atmospheric 5" OD 1/2" NPT
4 Insulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
4 Uninsulated Atmospheric 5" OD 1/2" NPT
4 Uninsulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
6 Insulated Atmospheric 5" OD 1/2" NPT
6 Insulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
6 Uninsulated Atmospheric 5" OD 1/2" NPT
6 Uninsulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
8 Insulated Atmospheric 5" OD 1/2" NPT
8 Insulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
8 Uninsulated Atmospheric 5" OD 1/2" NPT
8 Uninsulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
10 Insulated Atmospheric 5" OD 1/2" NPT
10 Insulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
10 Uninsulated Atmospheric 5" OD 1/2" NPT
10 Uninsulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
12 Insulated Atmospheric 5" OD 1/2" NPT
12 Insulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
12 Uninsulated Atmospheric 5" OD 1/2" NPT
12 Uninsulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
14 Insulated Atmospheric 5" OD 1/2" NPT
14 Insulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
14 Uninsulated Atmospheric 5" OD 1/2" NPT
14 Uninsulated Pressurized
(SKD)
1-1/4" NPT 1/2" NPT
Figure 144 shows proper installation of supply line
connections.
Figure 144: Humidier Supply Line Installation
