www.DaikinApplied.com 85 IM 1287-6 • REBEL APPLIED ROOFTOP
MicroTech® Remote User Interface
In addition to the unit-mounted user interface provided with
MicroTech controls, Daikin Applied rooftop systems can be
equipped with a remote user interface that handles up to
eight units per interface. The remote user interface provides
convenient access to unit diagnostics and control adjustments,
without having to access your roof or mechanical rooms
located on each oor.
Each remote user interface oers the same functionality as its
unit-mounted counterpart, including:
• Push-and-roll navigation wheel with an 8-line by 30
character display format.
• Digital display of messages in English language.
• All operating conditions, system alarms, control
parameters and schedules are monitored.
Features
• Can be wired up to 700 meters from units for exibility in
placing each remote user interface within your building.
• Unit and remote user interfaces are both active.

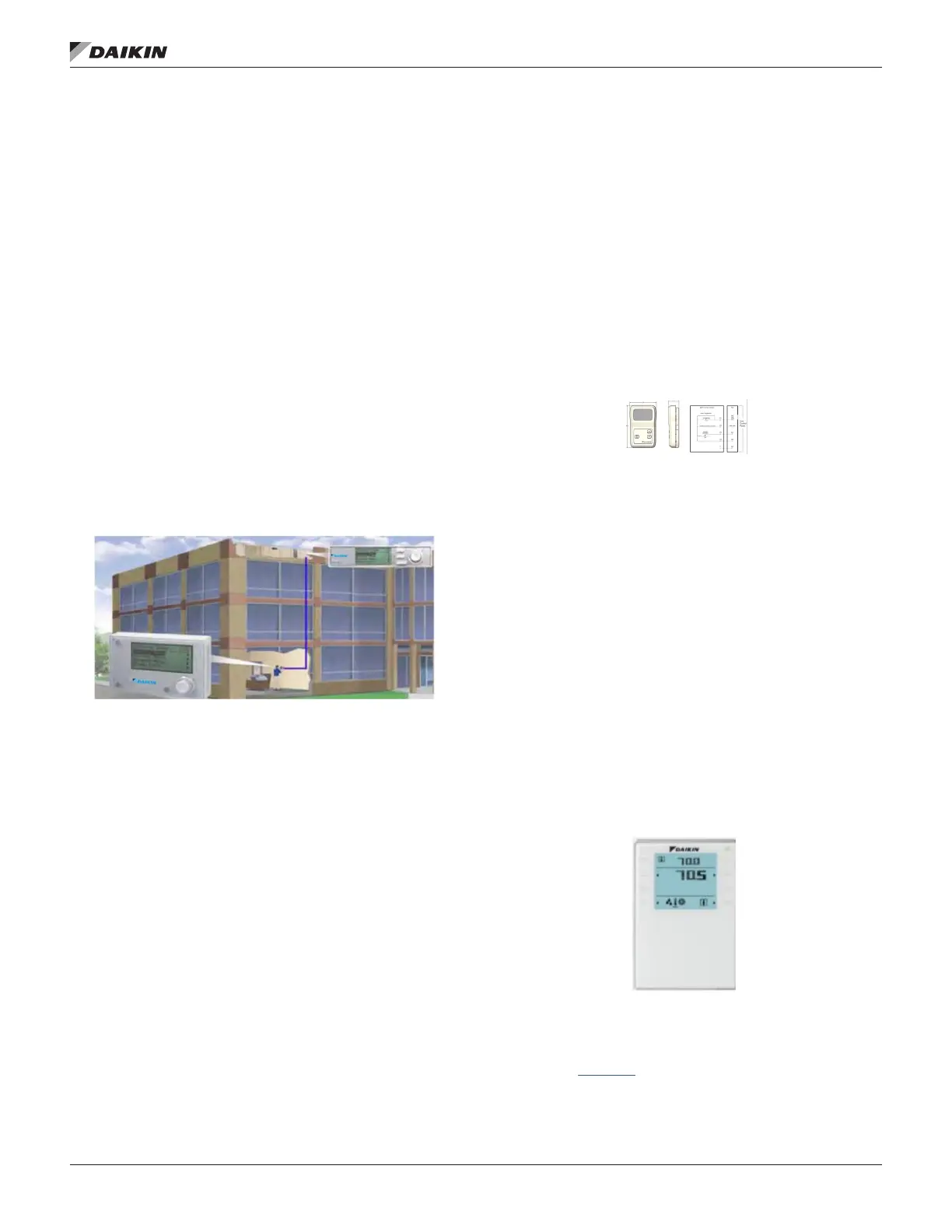

Figure 155: Remote User Interface
MicroTech Field Installed Sensors
The MicroTech unit controller can be connected to a variety of
eld installed sensors.
• Space Sensor with tenant override – Daikin Applied PN:
113117701
• DDC Space Sensor with Setpoint Adjust and Tenant
Override – Daikin Applied PN: 910143408
• Combo DDC Temp and Humidity Sensor with Setpoint Adj
and Tnt Ovrd – Daikin Applied PN: 910191961
• Communicating Network Space Sensors – Daikin Applied
PN: 910279216 and 910278050
• Space Humidity Sensor – Daikin Applied PN: 910202119
• Wall Mounted CO2 Sensor – Daikin Applied PN:
107287012
• Duct Mounted CO2 Sensor – Daikin Applied PN:
910111672
Space Temperature Sensors
The Rebel Applied MicroTech works with 10kohm Class II
thermistors and can support up to 3 sensors. These sensors
can drive cooling and heating based on the highest, lowest, or
average space sensor reading.
DDC Space Sensors
The Rebel Applied MicroTech works with 10kohm Class II
thermistors and can support up to 3 sensors. These sensors
can drive cooling and heating based on the highest, lowest,
or average space sensor reading. A Combo sensor version
provides temperature and humidity.
NOTE: Only one sensor can drive the setpoint adjustment.
Figure 156: Daikin Applied Space Sensor
Communicating Network Space Sensors
The MicroTech unit controller can be connected to a Network
of the 3 space sensors as either a temperature sensor only
or a temperature, Humidity and CO
2
combo sensor. Each
Sensor comes with a backlit LCD screen to show current
space conditions, allow setpoint adjustment and communicate
commands.
• Network Temperature Sensor – Part Number 910279216
• Network Combo Temeprature Sensor – Part Number
910278050
Figure 157: Network Space Sensor
The MicroTech can support up to 3 Network (QMX) sensors
wired to the Process Bus terminals with a Daisy Chain Twisted
pair. Refer to OM 1373 for MicroTech conguration and set-up
instructions
NOTE: The sensor is available in English units only and does
not show SI units.
