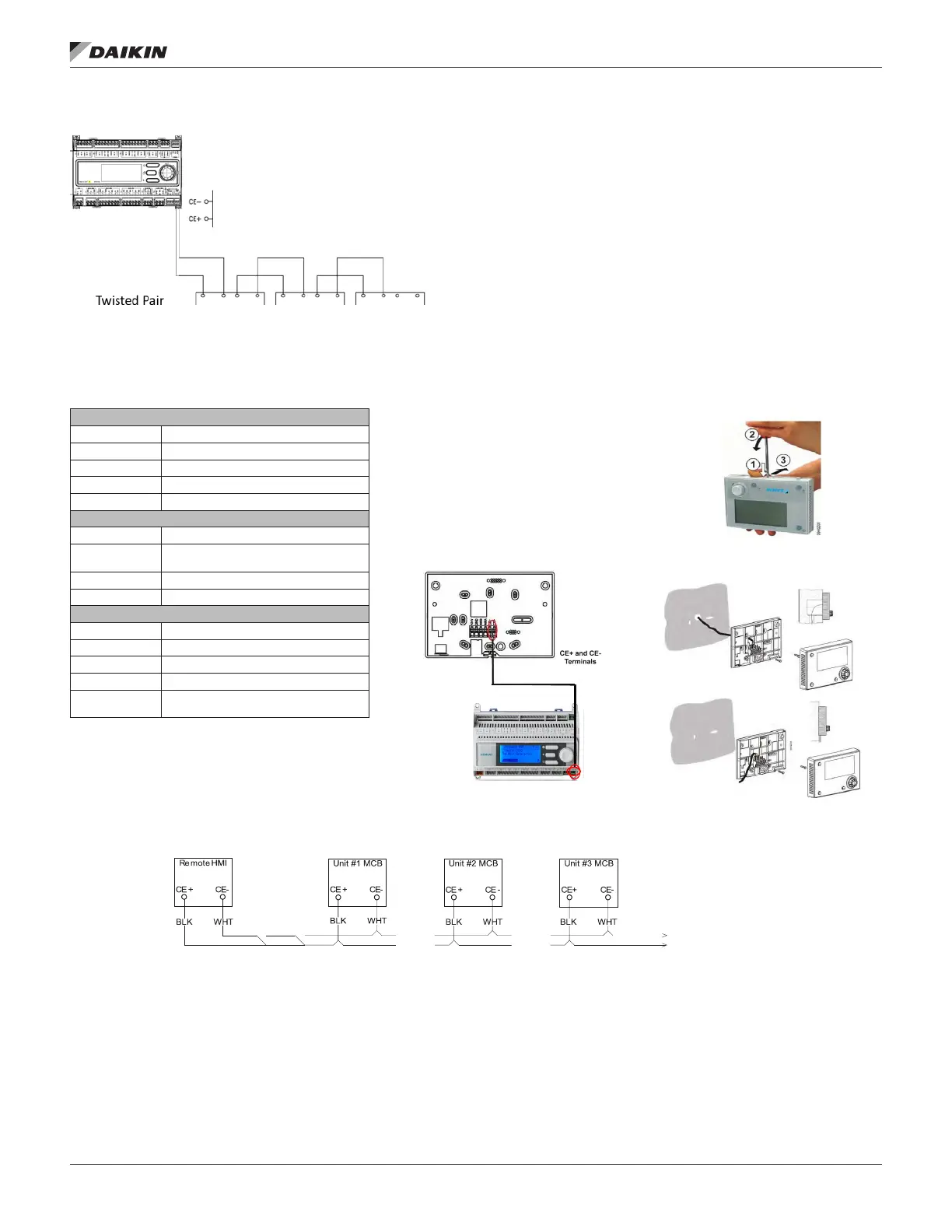

Figure 158: QMX Sensor
Refer to OM 1373 for MicroTech conguration and set-up instruction
NOTE: The sensor is available in English units and does not show SI units.
Figure 159: Specications and Connections
Figure 160: Process Bus Wiring Connections
Cover Removal: through the wall wiring connection
Cover Removal: surface wiring connection
Interface
Process Bus Up to eight interfaces per remote
Bus Connection CE+, CE– not interchangeable
Terminal 2-screw connector
Max. Length 700 meters
Cable Type Twisted pair cable, 0.5 ... 2.5 mm
2
Display
LCD Type FSTN
Dimensions
5.7(w) × 3.8(h) × 1.5(d) inches
[114 × 96 × 38] mm
Resolution Dot-matrix 96 × 208 pixels
Backlight Blue or white, user congurable
Environmental Conditions
Operation IEC 721-3-3
Temperature -40°C to 70°C
Restriction LCD -20° to 60°
Humidity <90% r.h. (no condensation)
Air Pressure
Min. 700hPa, corresponding to max.
3,000 (m) above sea level
Daisy-chain up to 8 units to a
single remote interface
