Daikin RELQ72TAYDA - Field Wiring

43
RELQ-TATJA / TAYDA / TAYCA EDUS371705C-D
RELQ72-120TAYCA
C: 2D112579C

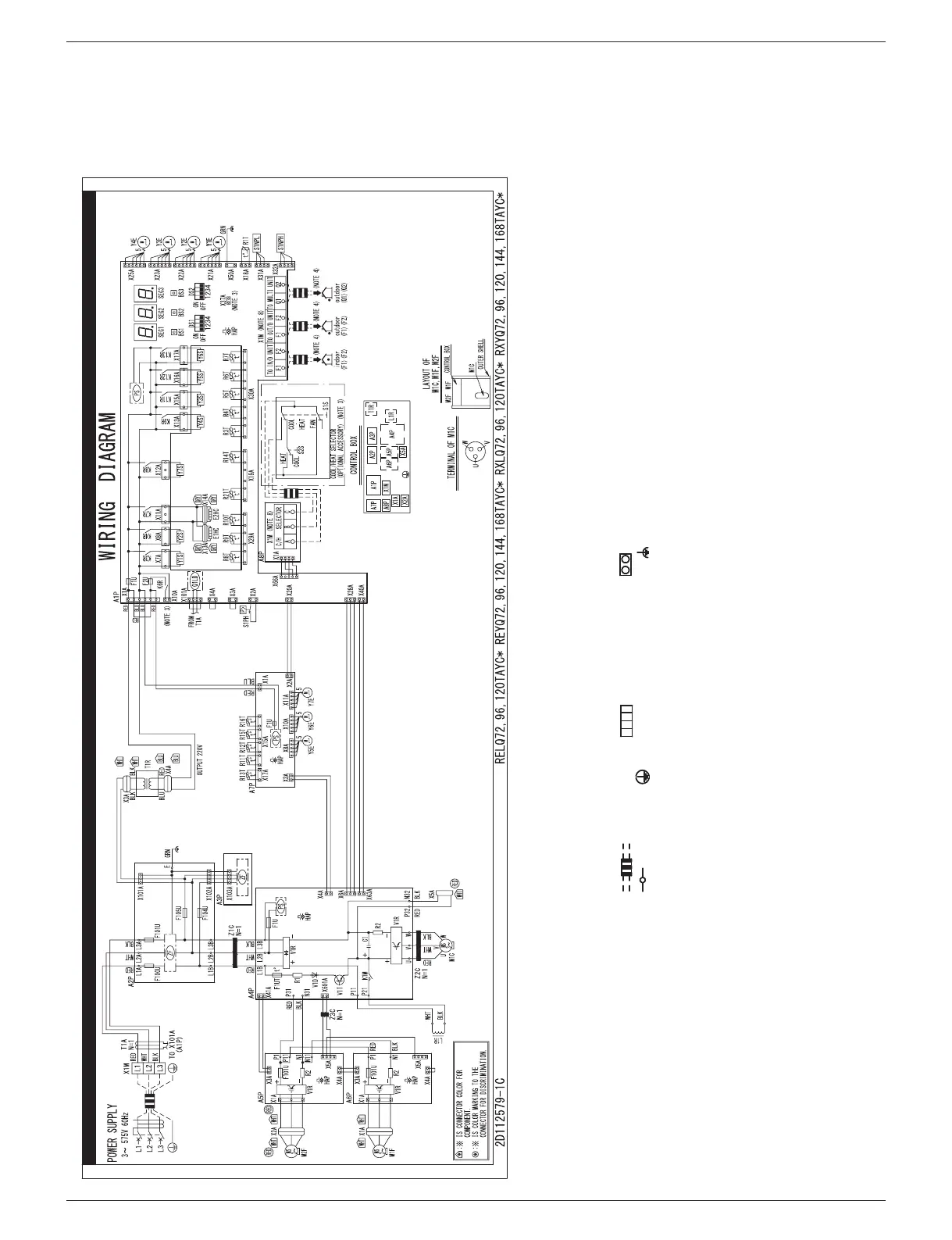

1. THIS WIRING DIAGRAM APPLIES ONLY TO THE OUTDOOR UNIT
.
2. : FIELD WIRING, : TERMINAL BLOCK, : CONNECTOR
,
: TERMINAL, : PROTECTIVE GROUND (SCREW), : NOISELESS GROUND
.
3. WHEN USING THE OPTIONAL ADAPTER, REFER TO THE INSTALLATION MANUAL OF THE OPTIONAL ADAPTER
.
4. FOR CONNECTION WIRING TO INDOOR-OUTDOOR TRANSMISSION F1·F2, OUTDOOR-OUTDOOR TRANSMISSION F1·F2,
OUTDOOR-MULTI TRANSMISSION Q1·Q2, REFER TO THE INSTALLATION MANUAL.
5. HOW TO USE BS1~3 SWITCH, REFER TO “SERVICE PRECAUTIONS” LABEL O
N
CONTROL BOX COVER.
6. WHEN OPERATING, DON'T SHORTCIRCUIT THE PROTECTION DEVICE (S1PH)
.
7. COLORS BLK : BLACK ; RED : RED ; BLU : BLUE ; WHT : WHITE ; GRN : GREEN ; GRY : GRAY ; YLW : YELLOW
.
8. CLASS 2 WIRE
NOTES)
