• Outdoor Units • R-410A • REQ-B8V3B_REQ-B8W1B
1
6
• Split Sky Air • Outdoor Units
19
6 Capacity tables
6 - 2 Heating capacity tables

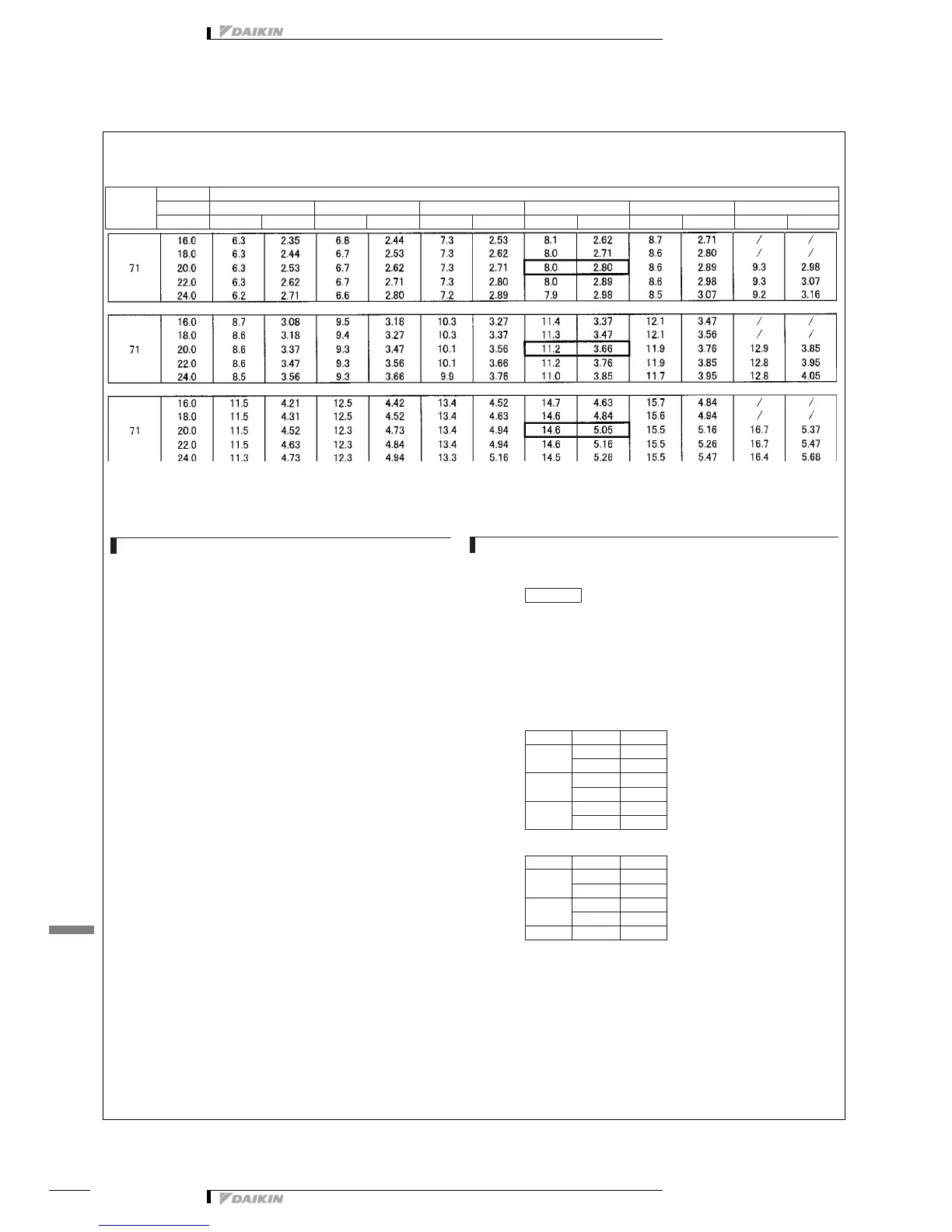

Heating capacity table
FCQ71-125C7VEB+ REQ71-100B8V3B
REQ71-125B8W1B
Outdoor
Indoor
Outdoor temperature (°CDB)
EDB -10 -5 0 6 10 15
(°C)TCPITCPITCPITCPITCPITCPI
3D057264
SYMBOLS
AFR: Air flow rate (m
3
/min)
WB: Wet bulb temperature (°CWB)
EDB: Entering dry bulb temp. (°CDB)
TC: Total capacity (kW)
PI: Power input (Comp. + indoor + outdoor fan motor). (kW)
Caution
TC and SHC are shown by kW
V3: 230V (50Hz)
W1: 400V (50Hz)
NOTES
1 Ratings shown are net capacities which include a deduction for
indoor fan motor heat
2
Shows nominal capacities
3 Capacities are based on following conditions:
outdoor air : 85 % RH. however, the condition on nominal capacity
is 7° CDB/6° CWB
Corresponding refrigerant piping length: 5 m
Level difference: 0 m
4 Direct interpolation is permissible.
Do not extrapolate.
5 Air flow rate (AFR) and Bypass factor (BF) are taburated below.
Model
FBQ
71
AFR 16.0
BF 0.19
100
AFR 23.5
BF 0.16
125
AFR 27.5
BF 0.19
6 Add the following corrections to power input of each model.
Model
Supply FBQ
71
V3 0.05
W1 0
100
V3 0.09
W1 0
125 W1 0
To Next Page
