Daikin RKC71QVM - Page 5

Si001658EA Outer Panels

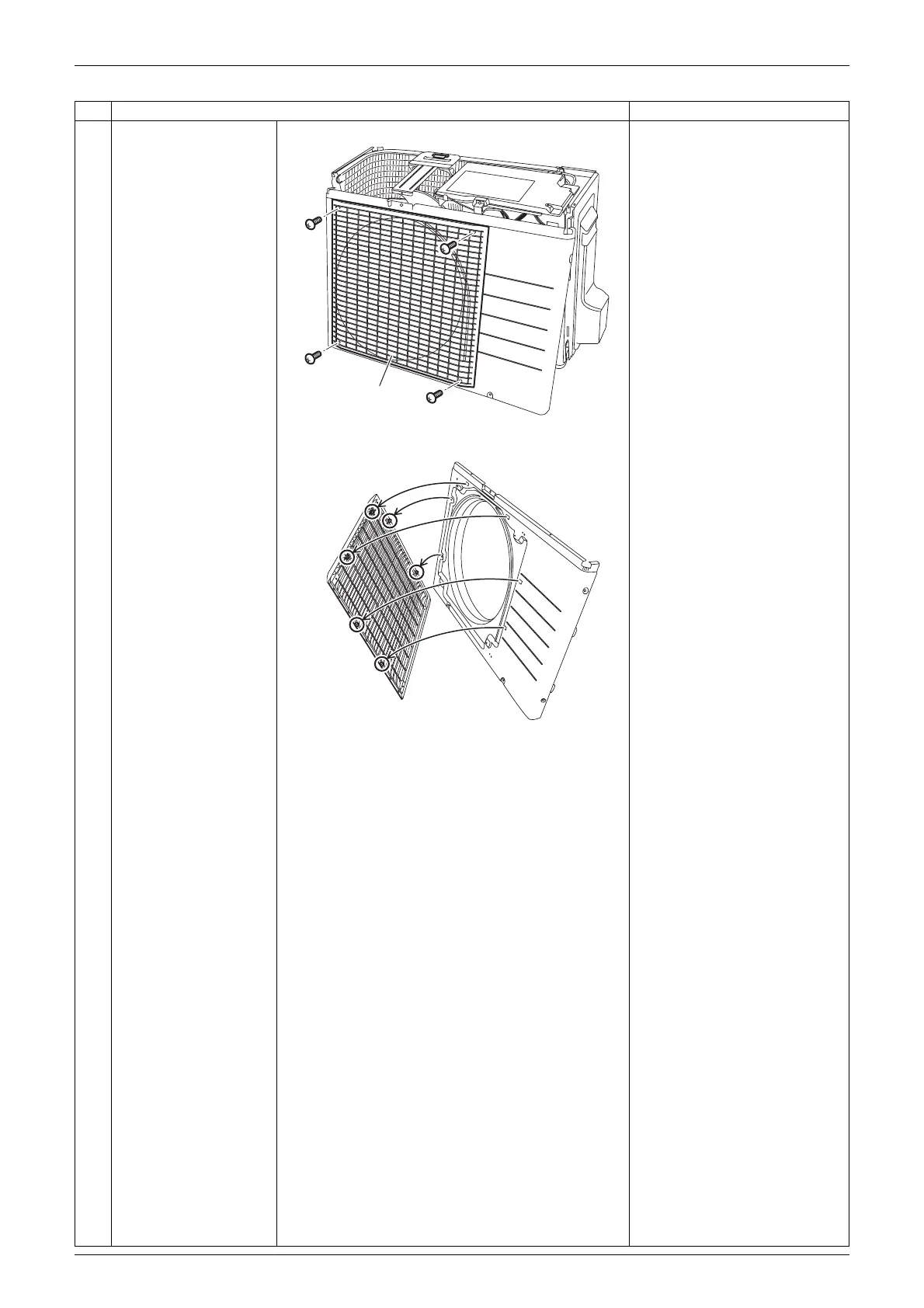

Removal Procedure 3
4 Remove the 4 screws
of the discharge grille.
5 Unfasten the 6 hooks
and remove the
discharge grille.

When reassembling, make
sure that the 6 hooks are
securely fastened.
Step Procedure Points
(R23697)
Discharge grille
(R23698)
