Daikin RKC71QVM - 2. Outdoor Fan; Fan Motor; Disconnect Fan Motor Connector; Release Fan Motor Lead Wire

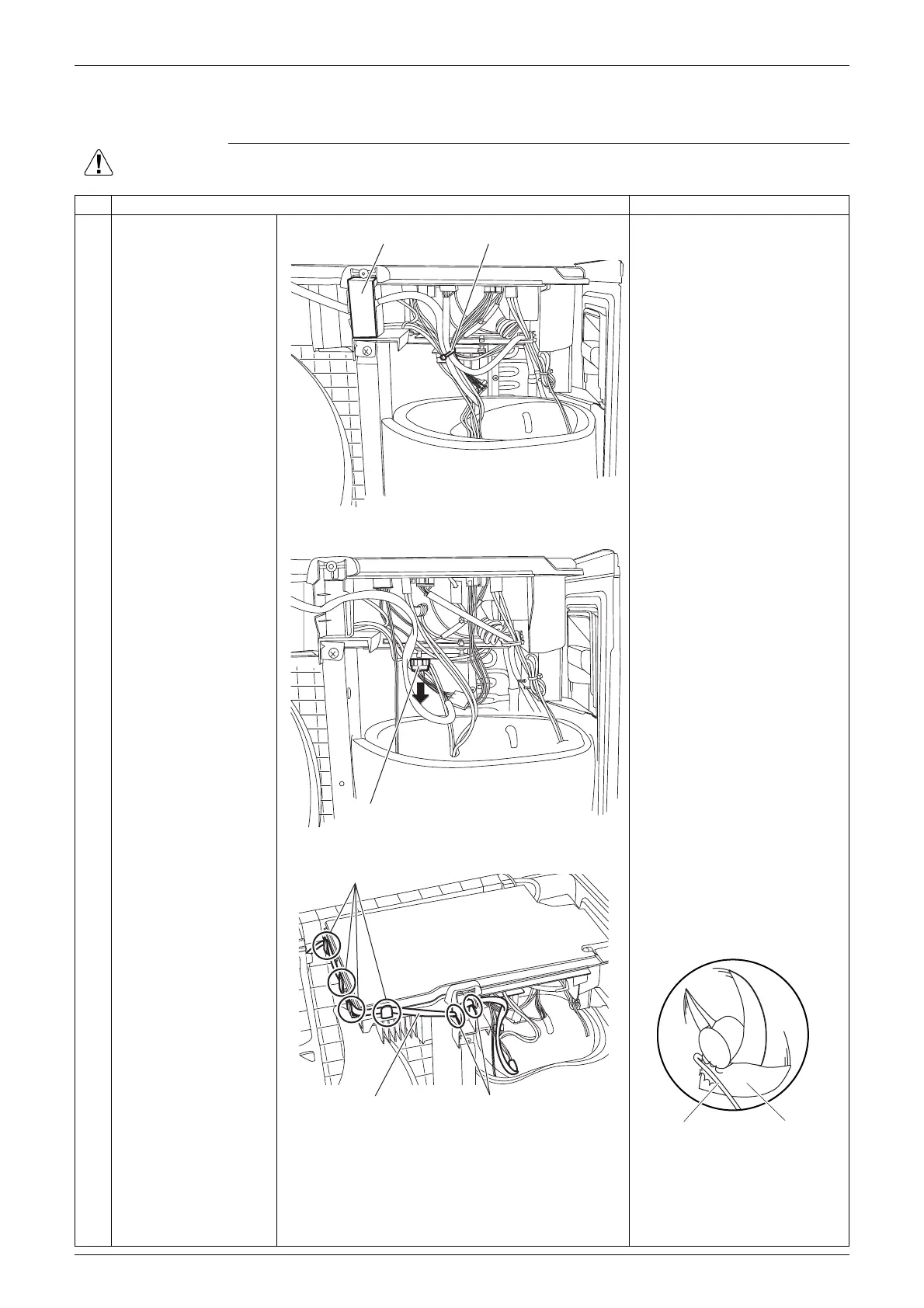

Outdoor Fan / Fan Motor Si001658EA
4 Removal Procedure
2. Outdoor Fan / Fan Motor
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Cut the clamp and pull
out the sealing material.
2 Disconnect the
connector [S79].
[S79]: fan motor
3 Release the fan motor
lead wire from the 2
slits and from the 4
hooks on the electrical
box.

When reassembling, put the
fan motor lead wire through
the back of the fan motor to
avoid any entanglement with
the outdoor fan.
(R23699)
Sealing material Clamp
(R23700)
[S79]
(R23701)
Slit
Hook
Fan motor lead wire
(R3249)
Lead wire Outdoor fan
