Daikin RKC71QVM - 1. Outer Panels; Remove Top Panel and Screws; Remove Front Panel Screws; Remove Front Panel Hooks

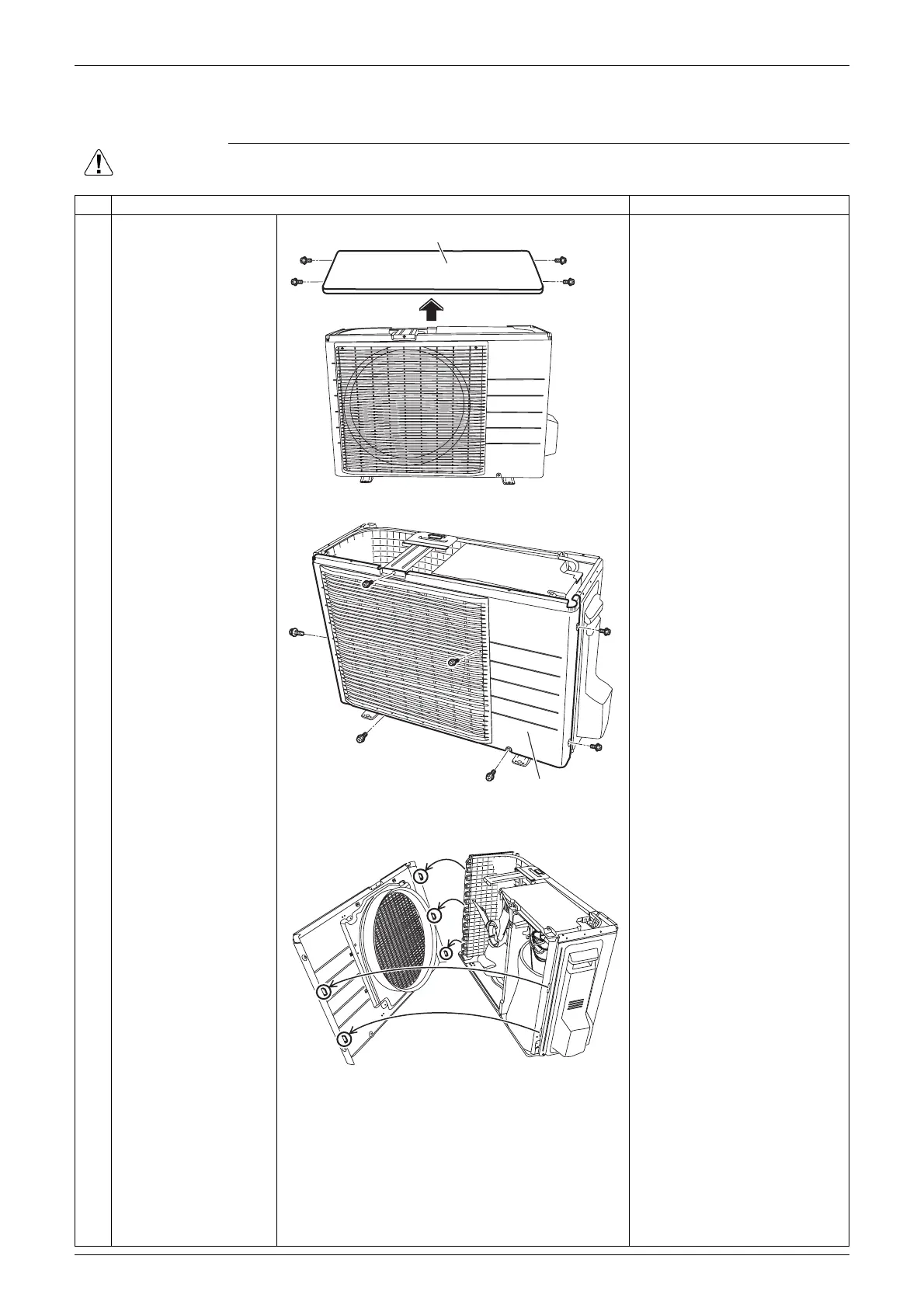

Outer Panels Si001658EA
2 Removal Procedure
1. Outer Panels
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 4 screws,
and then the top panel.
2 Remove the 7 screws
of the front panel.
3 Unfasten the 2 hooks
on the right side first,
then unfasten the 3
hooks on the left side
and remove the front
panel.

When reassembling, make
sure that the 5 hooks are
securely fastened.
(R23694)
Top panel
(R23695)
Front panel
(R23696)
